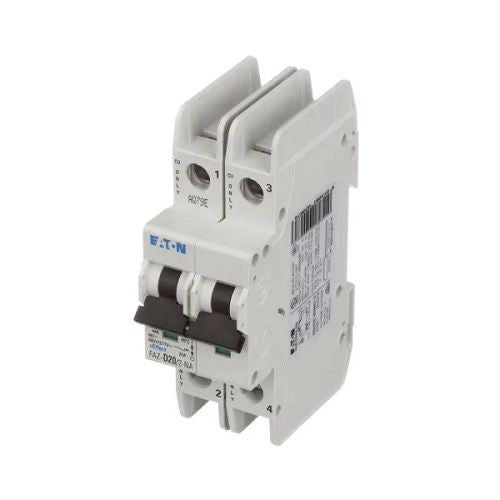

Eaton FAZ-D20/2 Electrical FAZ 20A 2 Poles

Product Description

The Eaton FAZ-D20/2 is a UL 489/UL 1077 DIN Rail Miniature Circuit Breaker designed for branch service applications. It provides thermal-magnetic overcurrent protection and is current-limiting. Suitable for branch circuit device protection, it features a contact position indicator and a 17.7mm width of module per pole. Available with standard box terminals with multiple conductors and ring-tongue terminals.

• UL 489/UL 1077 DIN Rail Miniature Circuit Breakers
• Designed for branch service applications
• Contact position indicator (red/green)

Product Highlights

Miniature circuit breaker designed for branch service applications with thermal-magnetic overcurrent protection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FAZ-D20/2
• Country of Origin: China

Technical Specifications

• Mfr. #: FAZ-D20/2
• Mfr.: Eaton Electrical
• Series: FAZ Series
• Type: Thermal/Magnetic
• Voltage Rating: 277/480 V
• Actuator Type: Toggle
• Amperage Rating: 20 A
• Mounting Type: DIN Rail Mount
• Number Of Poles: 2
• Interrupt Rating AC: 10 kA
• Model: FAZ-D20/2-RT
• Breaker Amperage Rating: 20 Amp
• Breaker Number of Poles: Two Pole
• Breaker Voltage Rating: 277 VAC
• Breaker UL Rating: UL 489
• Component: Miniature Circuit Breaker
• Manufacturer: Eaton
• Breaker Trip Speed: D Curve
• Current Rating (Amps): 20A
• Voltage Rating - AC: 480 V
• Voltage Rating - DC: 96 V
• Breaker Type: Thermal Magnetic
• Approval Agency: CCC, CSA C22.2 No 235, UL489, VDE, UL
