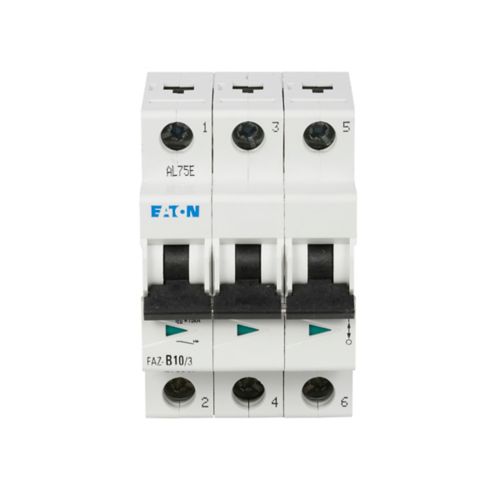

Eaton FAZ-C20/3-NA branch protector 20A

Product Description

The Eaton FAZ-C20/3-NA is a branch protector, also known as an industrial miniature circuit breaker, designed as a supplementary protector. It is suitable for applications where medium levels of inrush current are expected. The device is rated at 20A and is a three-pole breaker with a C curve.

• Suitable for applications where medium levels of inrush current are expected
• Mounts seamlessly into DIN rail systems and industrial control panels
• UL 489 rated

Product Highlights

This 20A three-pole miniature circuit breaker is designed for DIN rail systems and industrial control panels. It is UL 489 rated and handles medium inrush currents.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: FAZ-C20/3-NA

Technical Specifications

• Product Name: Eaton FAZ branch protector
• Catalog Number: FAZ-C20/3-NA
• EAN: 4015081021277
• Product Length/Depth: 2.1 in
• Product Height: 4.13 in
• Product Width: 2.97 in
• Catalog Notes: Positioned for medium inrush startup currents to provide protection for small transformers and pilot devices.
• Product Type: Branch protector
• Number of poles: Three-pole
• Terminals: Screw
• Type: UL 489 Industrial miniature circuit breaker - supplementary protector
• Amperage Rating: 20 A
• Circuit protection: C curve
• Frequency rating: 50-60 Hz
• Interrupt rating: 14 kAIC 10 kAIC
• Trip Type: 5-10X /n
• Voltage rating: 277/480V
• Application: Suitable for applications where medium levels of inrush current are expected
• Brand: Eaton / Cutler-Hammer
• Series: FAZ
• Amperage: 20A
• Voltage: 480Y/277VAC, 96VDC
• Poles: 3
• Phase: 3
• AIC Rating: 14kA @ 480Y/277VAC, 10kA @ 96VDC
• Mounting Style: DIN Rail
• Terminal Type: Box Lugs
• For Use With: DIN Rail Systems, Industrial Control Panels
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Curve: C
• Trip Adjustability: Fixed
• Wire Gauge: 18-6 AWG
• Max Wire: 6 AWG
• Min Wire: 18 AWG
• Available Options: Auxiliary Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, Busbar System
• Standards: CSA C22.2 No. 5, IEC 60947-2, RoHS, UL 489
• Approval: ABS, CCC, CE, CSA, DNV, GL, IEC, Lloyd's, UL, VDE
• Temp Rating: -25C to 75C
• Construction Features: Current Limiting, HACR Rated, Reverse Feed, Trip-Free Mechanism, Visual Trip Indicator, RoHS Compliant
• Voltage Rating - AC: 415 V
• Voltage Rating - DC: 96 V
• Actuator Type: Lever
• Part Status: Active
• Illumination: None
• Breaker Type: Thermal Magnetic
• Moisture Sensitivity Level (MSL): Not Applicable
• ECCN: EAR99
• HTSUS: 8536.20.0020
