Eaton EM22X561 M22 modular pushbutton 22.5 mm

Product Description

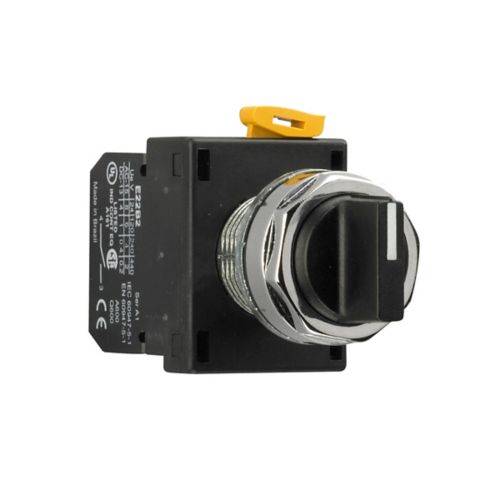

The Eaton EM22X561 M22 modular pushbutton is a 22.5 mm selector switch operator. This selector switch features a black actuator knob, maintained 60° operation mode, and cam 2. It is suitable for use in various applications requiring a two-position maintained switch.

• 2-Position
• 60° Throw
• Black Knob

Product Highlights

The Eaton EM22X561 is a reliable selector switch for maintained operation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: EM22X561

Technical Specifications

• Product Name: Eaton M22 modular pushbutton
• Catalog Number: EM22X561
• UPC: 782114744192
• Product Length/Depth: 2.1 in
• Product Height: 0.7 in
• Product Width: 4.8 in
• Compliances: CE Marked
• Certifications: UL 508 CSA Certified IEC 947-5-1 MTTA Lloyd's Register Certified
• Catalog Notes: Will accept a maximum of 4 contact blocks (8 circuits)
• Product Type: Modular pushbutton
• Type: Selector Switch
• Actuator color: Black
• Cam code: Cam 2
• Enclosure: NEMA 12 NEMA 3R NEMA 4 NEMA 4X NEMA 3
• Actuator: Knob
• Illumination: Non-illuminated
• Operating mode: Maintained 60 "0
• Series: EM22
• Number of positions: 2
• Size: 22.5 mm metallic
• Alternate Mfr Part Number: EM22X561
• Brand: Eaton - Cutler Hammer
• Numeric ID: 3882618
• Operation: Maintained
• Special Features: NEMA 3,3R,4,4X,12,43
• Switch Function: Maintained
