Eaton EM22T3 Pushbutton 25 mm

Product Description

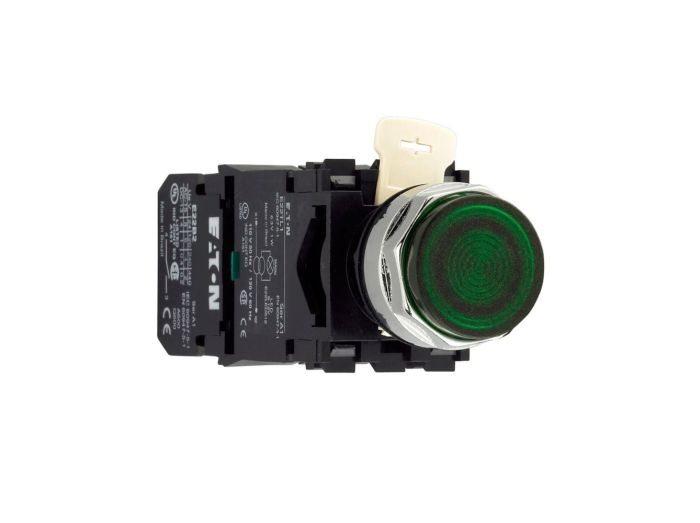

The EATON EM22T3 is a 25 mm pushbutton. It features momentary contact mode and an extended button operator with a polished chrome bezel. Suitable for heavy-duty industrial applications, this illuminated pushbutton is designed for durability and functionality. It conforms to NEMA 3, 3R, 4, 4X, 9, and 12 standards.

• Illuminated 22mm extended head/operator
• Green light
• Chrome bezel

Product Highlights

The EATON EM22T3 pushbutton is ideal for various industrial applications requiring robust and reliable operation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: EM22T3
• Country of Origin: United States

Technical Specifications

• MPN: EM22T3
• Brand: CUTLER HAMMER
• Category: Business & Industrial
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Head
• Product series / family name: E22 series
• Functions: Illuminated 22mm extended head/operator
• Light Color: Green
• Color: Chrome bezel
• Shape: Round
• Diameter: 25mm (button) 22.5mm (door punch)
• Operating mode: Spring-return (impulse / momentary)
• Degree of protection: IP65 NEMA 3 NEMA 3R NEMA 4 NEMA 4X NEMA 12 NEMA 13
• Material: Metal (Bezel)
• Manufacturer product status: Commercialized
• Compliant with standard(s): UL
• Item: Pushbutton
• Actuator Color: Green
• Actuator Type: Extended Button
• Bezel: Chrome
• Illumination: Illuminated
• Lamp Module Type: No Light Unit
• Nema Enclosure Rating: NEMA 12, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 9
• Series: EM22 Series
• Type: 25 mm Pushbutton
• Width: 0.01"
• Bezel/Housing: Polished Chrome
• Enclosure Type: NEMA 3/3R/4/4X/9/12
• Size: 22.5 mm
• Operator Type: Extended Button
• Contact Mode: Momentary
• Operator Color: Green
• Manufacturer: Eaton
• Family Series: Eaton Switches
• Operation: Momentary
• Mounting: 22 mm
• Lens/Button Shape: Round Extended
• NEMA Rating: NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
