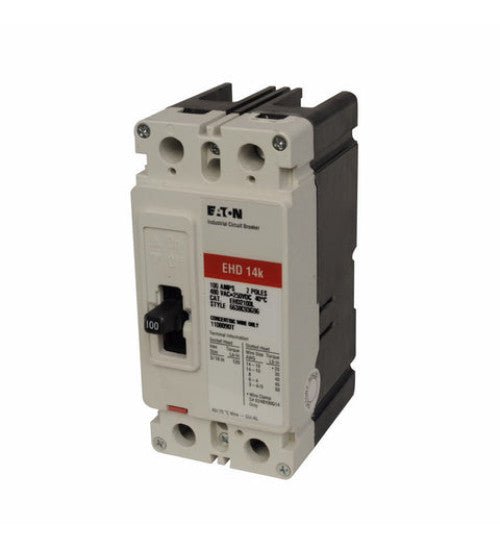

Eaton EHD2050L Series C Molded Case Circuit Breaker 50A

Product Description

The Eaton EHD2050L Series C complete molded case circuit breaker is an F-frame, two-pole, 50A breaker with fixed thermal and magnetic trip type. It is designed for dependable branch circuit protection in panelboard, switchboard, motor control center, and busway applications. It has an interrupt rating of 18 kAIC at 240 Vac and 14 kAIC at 480 Vac and frequency rating of 50/60 Hz.

• Factory-installed line and load lugs
• Reliable thermal-magnetic protection
• Interrupting rating of 14kAIC at 480VAC

Product Highlights

This Eaton circuit breaker provides reliable thermal-magnetic protection for industrial systems and supports reverse feeding.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: EHD2050L

Technical Specifications

• Product Name: Eaton Series C complete molded case circuit breaker
• Catalog Number: EHD2050L
• UPC: 786679850893
• Product Length/Depth: 3.38 in
• Product Height: 6 in
• Product Width: 2.75 in
• Certifications: UL Listed
• Product Type: Molded case circuit breaker
• Amperage Rating: 50 A
• Trip Type: Fixed Thermal/Fixed Magnetic
• Circuit breaker type: EHD
• Circuit breaker frame type: Complete breaker
• Series: Series C
• Terminals: Line and load
• Frame: F
• Frequency rating: 50/60 Hz
• Interrupt rating: 18 kAIC at 240 Vac 14 kAIC at 480 Vac
• Number of poles: 2
• Brand: Eaton
• Part Number: EHD2050L
• Voltage: 480 VAC/250 VDC
• Poles: 2
• Phase: 1
• AIC Rating: 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC
• Mounting Style: Unit Mount
• Terminal Type: Lugs
• For Use With: Eaton Series C Panelboards, Switchboards, Motor Control Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 14-1/0 AWG
• Max Wire: 1/0 AWG
• Min Wire: 14 AWG
• Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment
• Accessories: Line and Load Lugs
• Standards: CSA C22.2 No. 5, NEMA AB 1, UL 489
• Approval: CSA, HACR, UL
• Temp Rating: 40C
• Construction Features: HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism
• Maximum Amperage: 50 A
• Current Type: AC
• Number of Phases: 1
• UNSPSC: 39121616
• Wire Size: 14 to 1/0
• Application: Panelboard, Switchboard, Motor Control Center and Busway Applications, Electrical Assemblies and OEMs
• Mounting Type: Panel
• Enclosure Type: NEMA AB1-1993
• Connection Type: Line/Load
• Temperature Rating: 40
• Type: Type EHD
• Dimensions: 3.38 x 2.75 x 6
