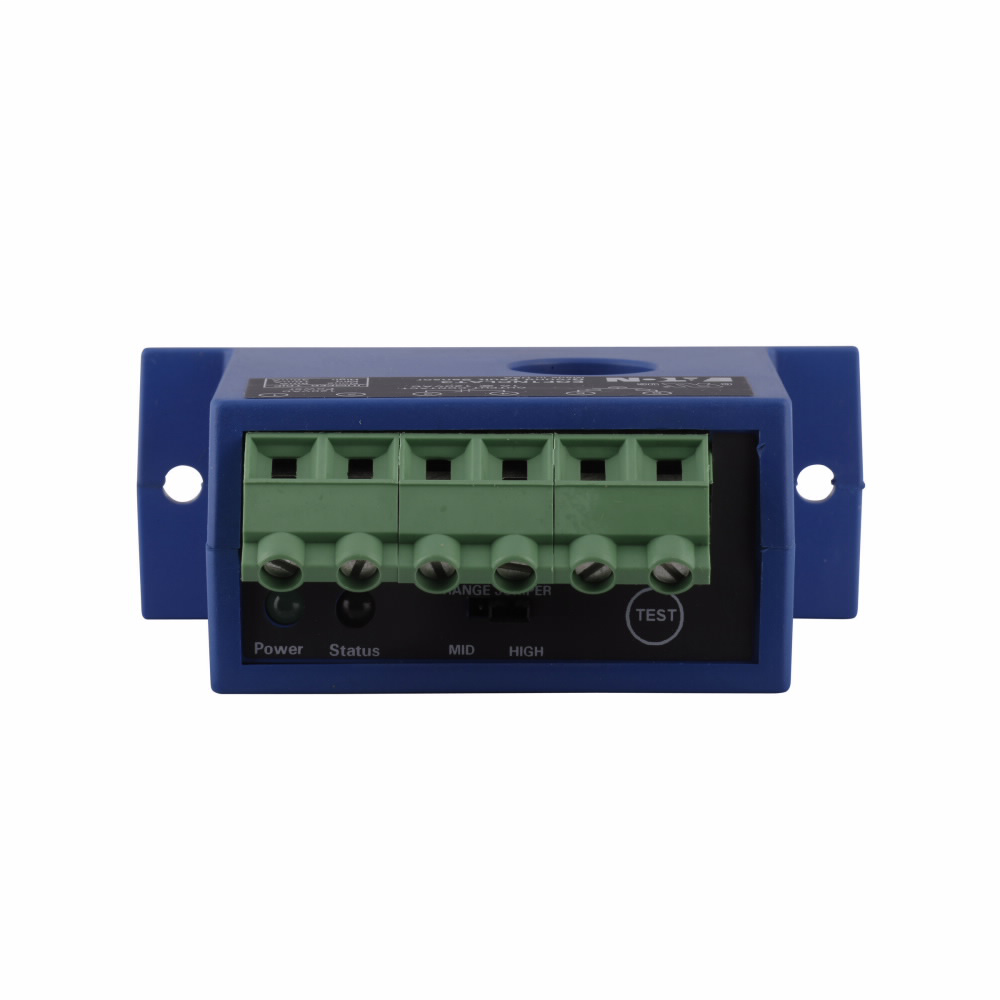

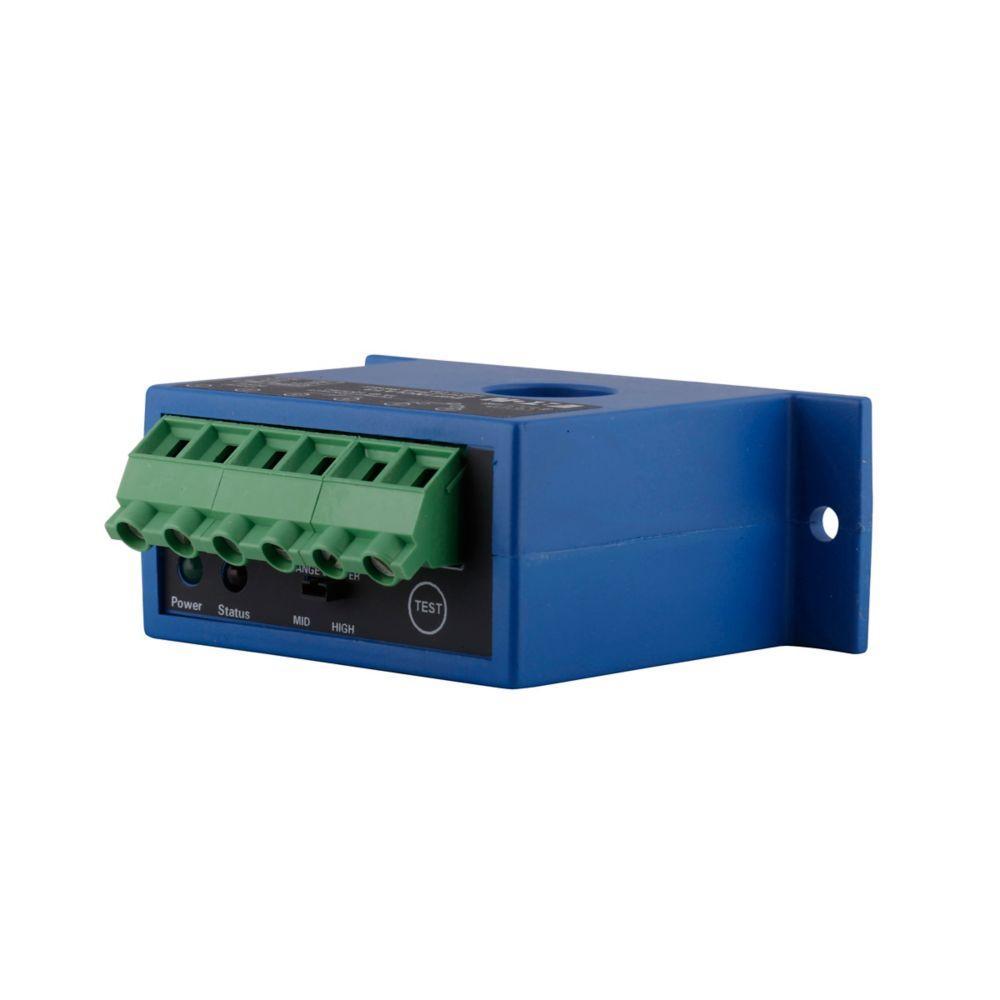

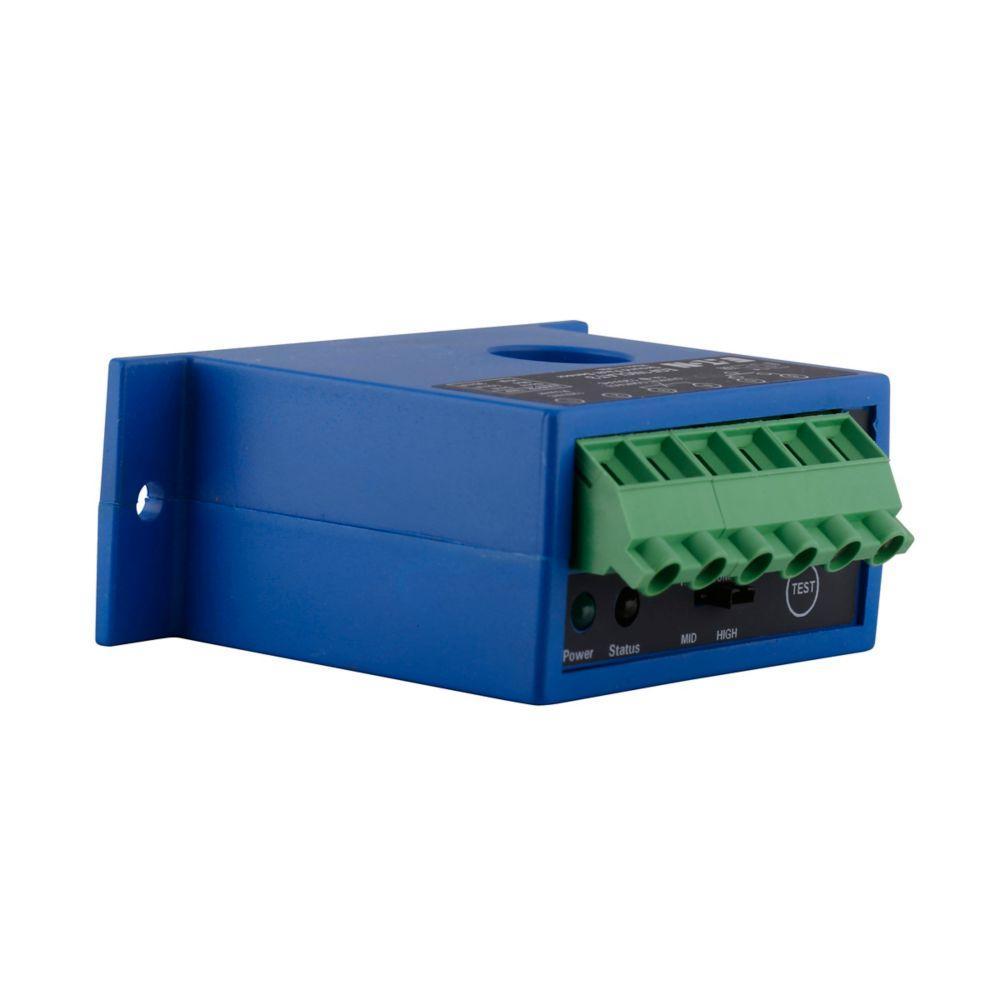

Eaton EGF1NCLAT3 PWR SENSOR,GFI,5-10-

Product Description

The Eaton EGF1NCLAT3 is a Ground Fault Sensor designed to provide protection from ground fault conditions. This device utilizes UL94 V0 rated plastic for its enclosure and operates with a maximum of one ampere alternating current. It features an isolated solid-state relay, suitable for various applications in electrical assemblies. The input voltage is 120 volts, and it comes with screw terminals for easy connections.

• 1A Maximum AC Rating
• Compact Size: 1.5 inches long, 2.5 inches wide, and 3.88 inches high
• Operates effectively within a temperature range of -20 to 50 degrees Celsius

Product Highlights

This sensor is ideal for monitoring electrical systems, ensuring safety and compliance in various industrial applications.

Product Information

Standard Information

• Brand: Eaton
• MPN: EGF1NCLAT3

Technical Specifications

• Type: Solid Core Ground Fault Sensor
• Voltage Rating: 120 VAC
• Amperage Rating: 1 A
• Response Time: 15 to 200 ms
• Connection Type: Screw Terminal
• Operating Temperature: -4 to 122 degrees Fahrenheit
• Frequency Rating: 50/400 Hz
• Environmental Conditions: 0 to 95% Non-Condensing Relative Humidity
