Eaton ECNR10 Current Limiting Time Delay Fuse 10 A 250 VAC/125 VDC

Product Description

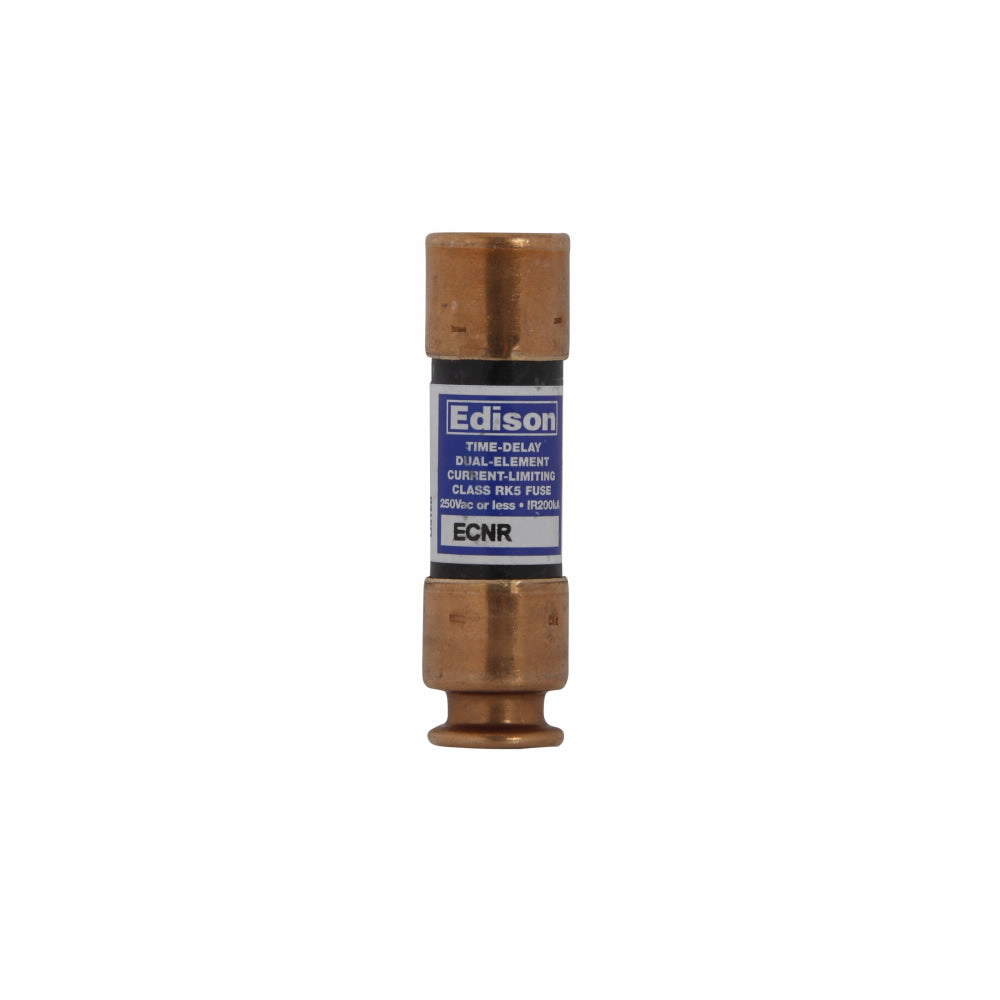

The Eaton ECNR10 is a Bussmann Edison Current Limiting Time Delay Fuse, designed for overcurrent protection. This UL Class RK5 dual-element fuse features a 10 A amperage rating and operates at 250 VAC/125 VDC. It offers a 200 kAIC interrupt rating and an 8-second response time at 500% load. The non-indicating fuse has ferrule end terminals and a fiberglass body, measuring 0.56 inches in diameter by 2 inches in length. It provides superior overload and cycling capabilities.

• Superior overload and cycling capabilities.
• Time-delay current-limiting design for effective protection.
• Provides motor overload, ground fault, and short-circuit protection.

Product Highlights

This Eaton ECNR10 fuse offers reliable, economical overcurrent protection for low-voltage systems, handling temporary inrush currents.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: ECNR10

Technical Specifications

• Amperage Rating: 10 A
• Application: Industrial Facilities and Factories, Safety and Security Systems, AC Power Distribution System Mains, Feeders and Branch Circuits, Protection Of Motor and Motor Branch Circuits, Transformers and Other Inductive Loads, Lighting, Heating and Other Non-inductive Loads Applications
• Body Size: 0.56 in Dia x 2 in L
• Class: RK5
• Element Type: Dual
• Indicator: Non-Indicating
• Material: Fiberglass
• Response Time: 8 s at 500%
• Series: ECNR
• Standards/Approvals: CE Certified|CSA C22.2|UL Listed
• Terminal Type: Ferrule End
• Fuse Type Detail: Current Limiting Time Delay
• Voltage Rating: 250 VAC/125 VDC
• Product Type: Fuse
• Interrupt Rating: 200 kAIC
• Subcategory: Low Voltage
• Barrels: 1
