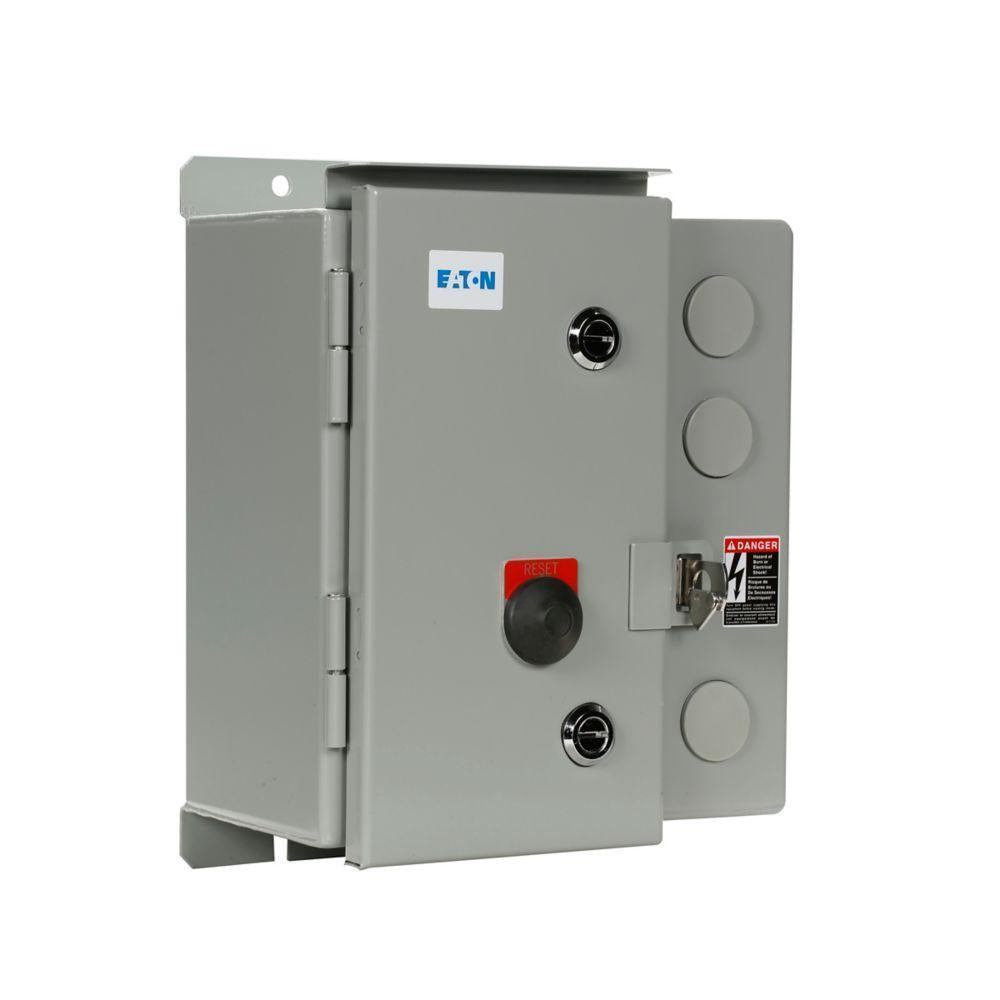

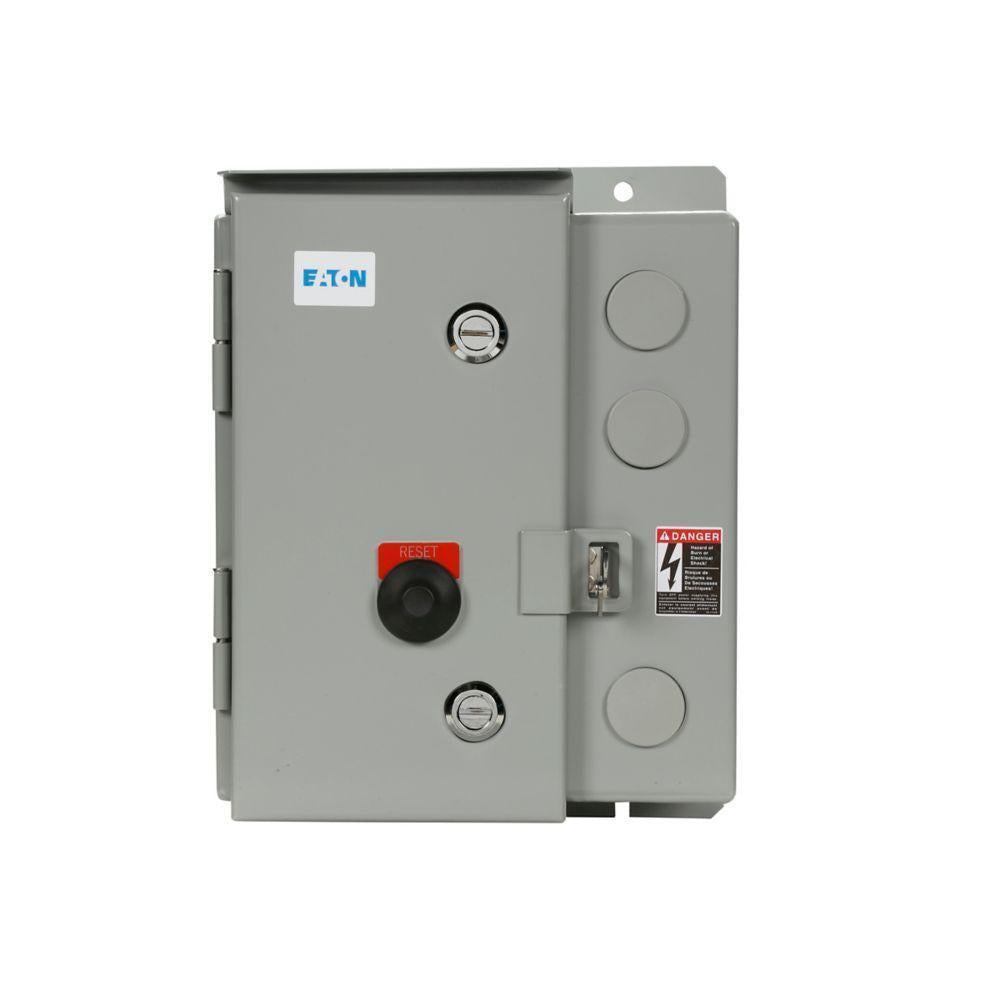

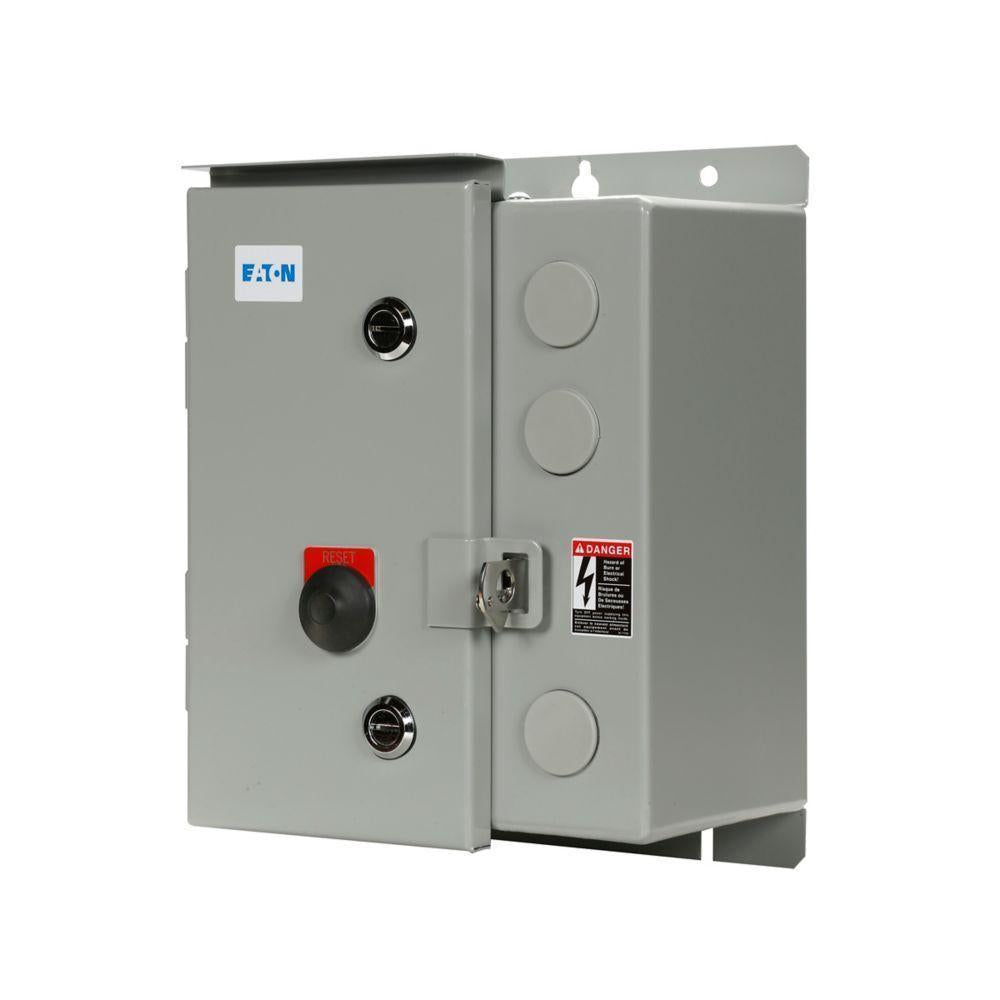

Eaton ECN0514AAA-R63/C NEMA Starter 110/120 VAC

Product Description

The EATON ECN0514AAA-R63/C NEMA starter features a compact, space-saving design with high-strength, impact, and temperature-resistant insulating materials. This full voltage non-reversing non-combination starter operates at 50/60 Hz with a 110/120 VAC coil and auto/manual reset. It includes a solid-state overload relay without ground fault and supports a full load current of 4 to 20 A.

• Line enclosed control non-combination starter
• Full Voltage Non-Reversing Non-Combination
• Auto/Manual Reset

Product Highlights

Compact design with durable materials. Ideal for motor control applications requiring reliable overload protection and easy reset options.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: ECN0514AAA-R63/C

Technical Specifications

• Frequency Rating: 50/60 Hz
• Full Load Current: 4 to 20 A
• Overload Relay: Solid-State without Ground Fault
• Phase: 1 ph
• Reset Type: Auto/Manual
• Series: Freedom
• Type: Full Voltage Non-Reversing Non-Combination
• Coil Voltage: 110/120 VAC
• Enclosure Type: NEMA 4X
• Size: Size 00
• Product Type: Motor control starter
• Product Length/Depth: 10.76 in
• Product Height: 7.15 in
• Product Width: 6.06 in
• UNSPSC: 39121521
