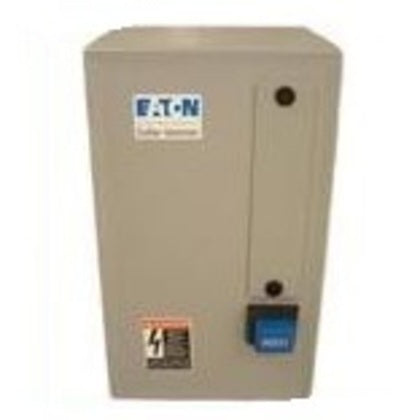

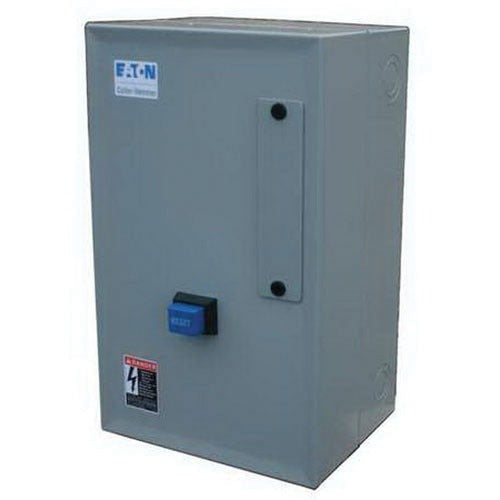

EATON ECN0501AAA-R63/B STARTER NEMA 110/120VAC NEMA 1

Product Description

The EATON ECN0501AAA-R63/B is a full voltage non-reversing non-combination starter designed for use in NEMA applications. This starter operates at 110/120 volts alternating current and fits within a NEMA 1 enclosure. It can handle full load currents from 1 to 5 amps, making it suitable for various motor control needs.

• Designed for 110/120VAC operation
• Full load current rating of 1 to 5 amps
• Includes auto/manual reset functionality

Product Highlights

The EATON starter series features a compact design using high-strength materials to ensure durability.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part No: ECN0501AAA-R63/B

Technical Specifications

• Phase: 1 ph
• Dimensions: 14.9 inches L x 10.1 inches W x 8.5 inches H
• Voltage Rating: 110/120 VAC
• Frequency Rating: 50/60 Hz
• Overload Relay: Solid-State without Ground Fault
• Coil Voltage: 110/120 VAC
• Enclosure Type: NEMA 1
• Full Load Current: 1 to 5 A
