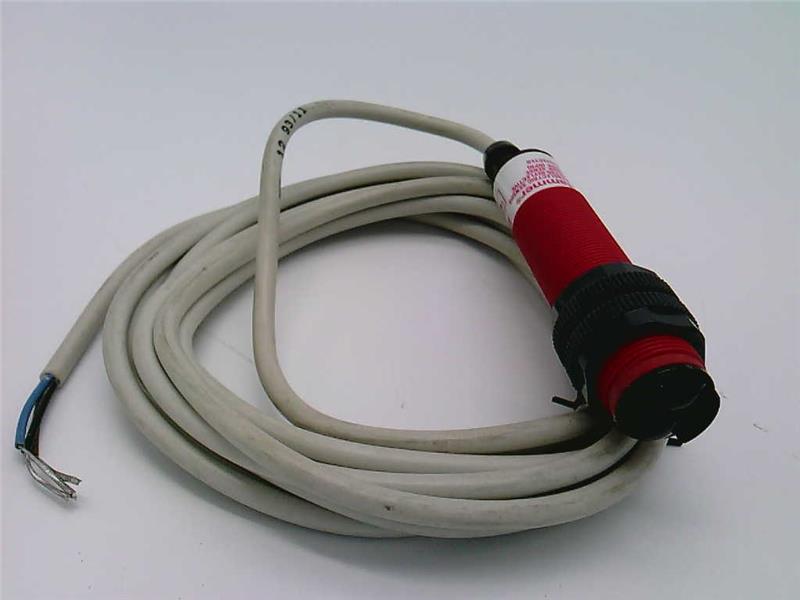

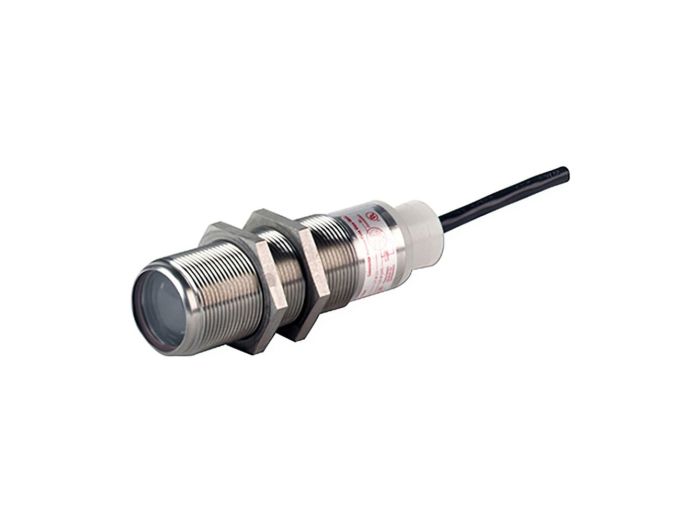

Eaton E58CAL18T110R2 Photoelectric Sensor 8-80 FT

Product Description

The EATON E58CAL18T110R2 is a photoelectric sensor with an 8-80 ft sensing range. It features a 3-wire configuration and NPN/PNP output. The sensor has an 18 mm threaded body and operates on 20-264 VAC or 10-30 VDC. It has gain adjustment to ensure peak performance.

• Gain adjustment on all models to ensure peak performance
• Select models have visible beams for quick alignment
• LED Output Indicator

Product Highlights

E58 Tubular series photoelectric sensors feature threaded bodies with flat sides for flexible mounting options, and solid polyurethane housing for high shock and vibration resistance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E58CAL18T110R2

Technical Specifications

• Part #: E58CAL18T110R2
• Category: Photoelectric
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: E58CAL18T110R2
• Manufacturer: Eaton
• Product Series: E58 TUBULAR
• Family Series: Eaton Photoelectric Sensors, E58 TUBULAR Series
• Description: Photoelectric Sensor
• Power Type: DC
• Voltage: 10-30 VDC
• Nominal Voltage: 12 VDC, 24 VDC
• Connection Type: Cable
• Operating Mode: Non Polarized Retroreflective
• Output Type: NPN
• Max Load Current: 0.25 A
• Composition: Non-Metallic
• Protection Rating: NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13
• Diameter: .71 IN
• IP/NEMA Rating: NEMA 1, NEMA 4X, NEMA 4
• Mounting: Threaded
• Volts DC Range: 10 - 30
• Range: 0 - 2 m, 0 - 6.500 ft
• Input Voltage: 10-30 Vdc
• Contact Configuration: NPN Open Collector
• Operating Temperature: -40 to 158 F (-40 to 70 C)
• Switch Type: Photoelectric
• Cord Length: 120 FT
• Maximum Dc Current: 250 mA
• Connection: 9.8 Ft. ( 3m ) Cable
• Cable Type: PVC
• Enclosure Material: Stainless Steel
• Sensor Type: Retroreflective
• Contact Rating: NPN: 250 mA at 30Vdc
• Environmental Rating: NEMA 1, 3, 4, 4X, 6, 12 and 13, IP69k
• Protection: Auto reset short circuit
• Led Indicators: Red Output Status
• Product Length/Depth: .47 IN
• Product Height: 2.6 IN
• Product Width: .71 IN
• Certifications: UL Listed
