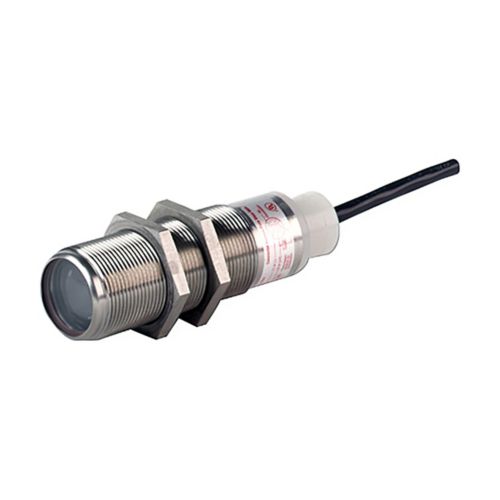

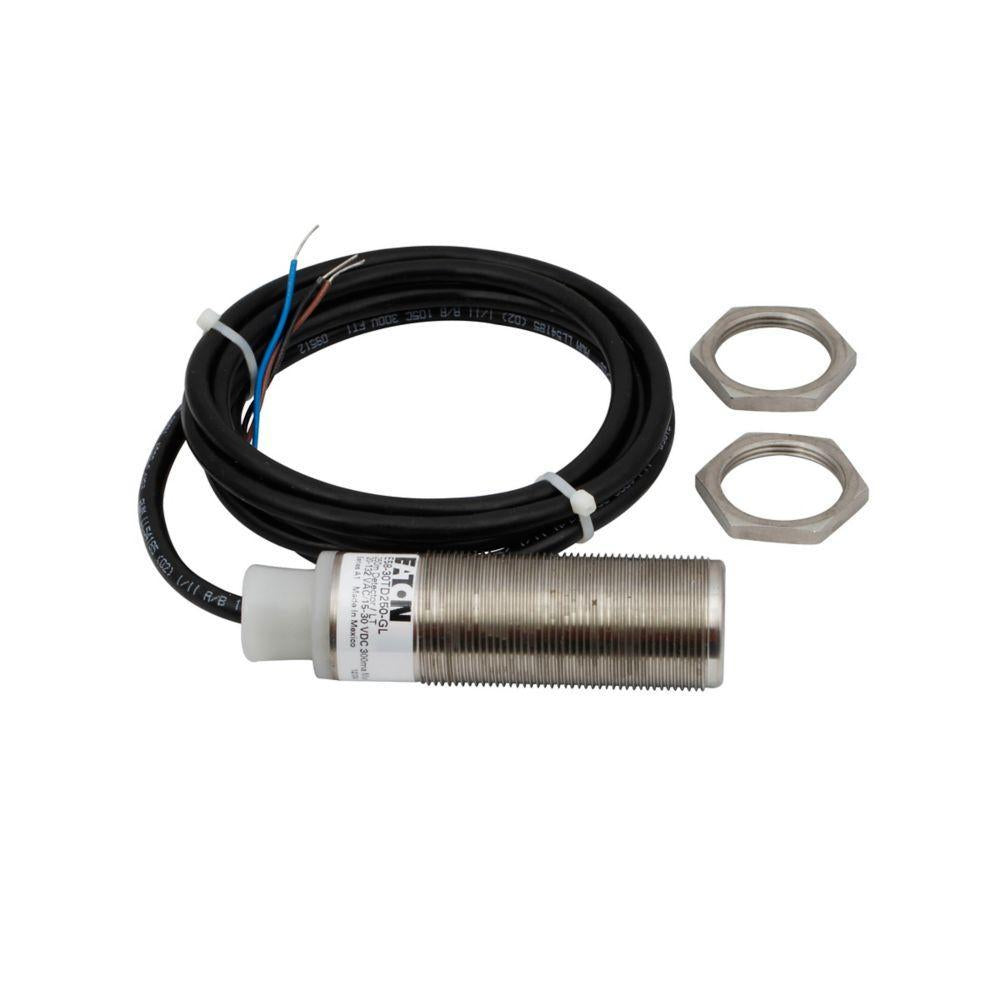

Eaton E58-30TD250-GL harsh-duty sensor

Product Description

The EATON E58-30TD250-GL harsh-duty sensor is designed to withstand harsh physical, chemical, and optical environments. It features stainless steel, PVDF, and tempered glass components mechanically assembled with Viton seals. It is highly resistant to chemical attack and moisture intrusion and can withstand heavy shock and vibration.

• Withstands harsh physical, chemical, and optical environments
• Resistant to chemicals and moisture intrusion
• Suitable for high-temperature, high-pressure washdown

Product Highlights

This sensor offers unparalleled optical performance and is ideal for automotive and food processing applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E58-30TD250-GL

Technical Specifications

• Product Name: Eaton harsh-duty sensor
• Catalog Number: E58-30TD250-GL
• UPC: 782114091692
• Product Length/Depth: 4.36 in
• Product Height: 1.18 in
• Product Width: 1.65 in
• Product Weight: 0.7 lb
• Certifications: UL Listed
• Product Type: Harsh-duty sensor
• Voltage Rating: 20-132 Vac at 50/60 Hz, 15-30 Vdc
• Series: E58 Harsh Duty Series
• Number of wires: 3
• Cord length: 6.6 ft
• cUL Listed: CE
• SKU: E58-30TD250-GL
• Warranty: 3 year
• Type: Photoelectric Sensor
• Contact Rating: 300 mA at 20-132 Vac/15-30 Vdc
• Cable type: Polyvinyl Chloride (PVC)
• Enclosure material: 303 stainless steel
• Operating mode: Light
• Contact configuration: AC: L1 switched DC: NPN open collector
• Sensor type: Through beam
• Input voltage: 20-132 Vac at 50/60 Hz, 15-30 Vdc
• LED indicator: Power on
• Protection: Latching short circuit
• Maximum AC current: 300 mA
• Maximum DC current: 300 mA
• Operating temperature - max: 131 °F
• Operating temperature - min: -40 °F
• Environmental rating: NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 12K, NEMA 13, IP69K
• Manufacturer Part Number: E58-30TD250-GL
• Manufacturer: Eaton - Cutler Hammer
• UNSPSC Code: 41110000
• Unit of Measure: EA
• Measurement Range: 250 m
• UPC Code: 782114091531
• Sensing Mode: Receiver
• Alternate Mfr Part Number: E58-30TD250-GL
• Technology: Photoelectric
• Body Style: Cylindrical
• Connection Type: Cable
• Sensing Method: Thru-Beam
• Sensing Range: 800 ft
• Sensing Beam: Visible Red
• Response Time: 10/2 ms
• Output Type: AC L1 Switched/DC NPN Open Collector
• Amperage Rating: 300 mA
• Wattage: 3 W
• Frequency Rating: 50/60 Hz
• Light Source: Power LED Indicator
• Vibration: 30 g
• Size: 4.36 in L x 1.18 in W x 1.18 in H
• Enclosure Type: NEMA 1/2/3/3R/3S/4/4X/6/6P/12/12K/13/IP69K
• Operating Temperature: -40 to 131 deg F
• Mounting: Panel
• Length: 9.8 ft
• Diameter: 30 mm
• Material: Stainless Steel
• IP/NEMA Rating: IP69K, NEMA 3R, NEMA 4X, NEMA 12, NEMA 12K, NEMA 13, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 6
• Amps: 0.300
• Volts DC Range: 15 - 30
• Volts AC Range: 20 - 132
