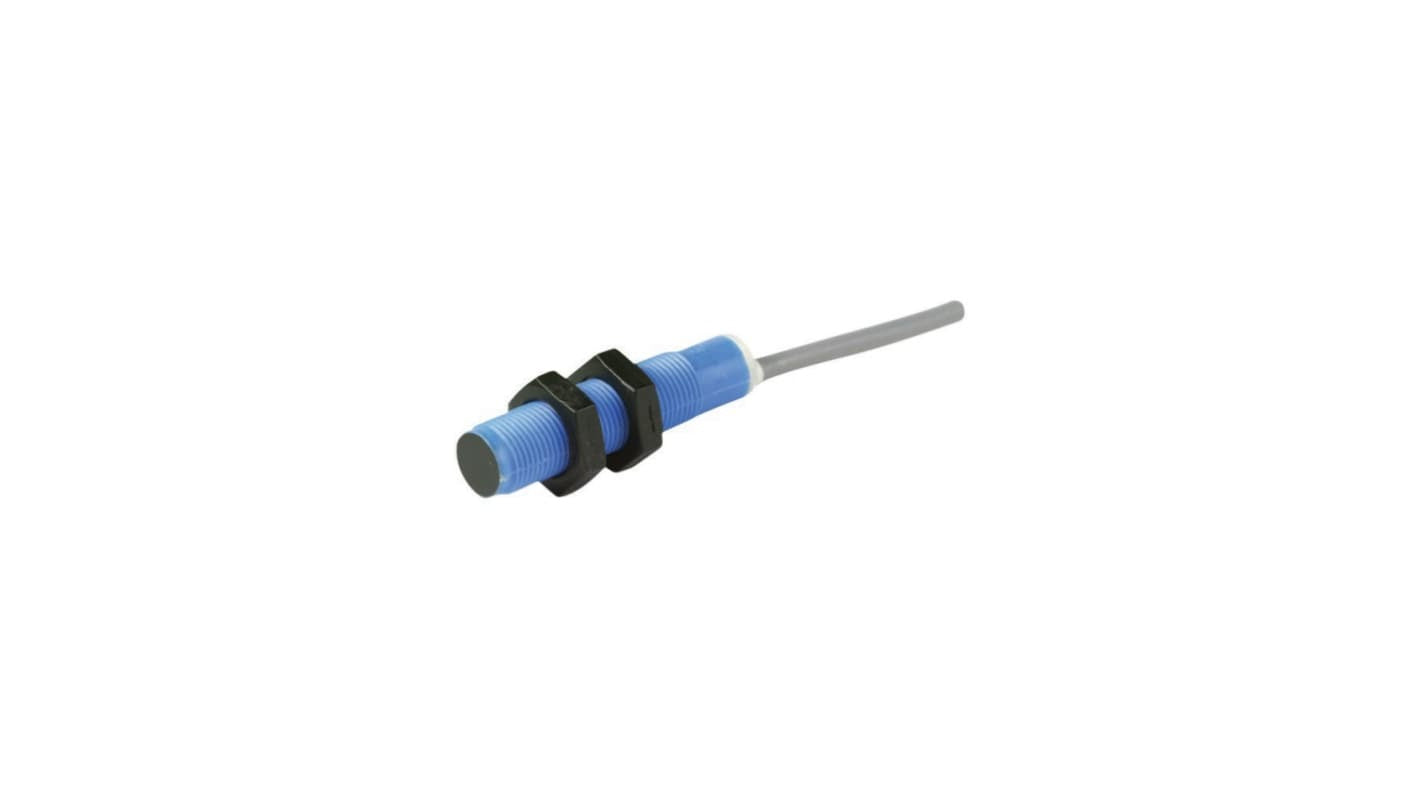

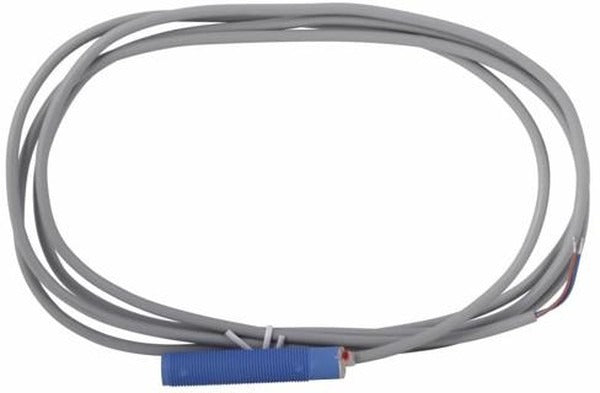

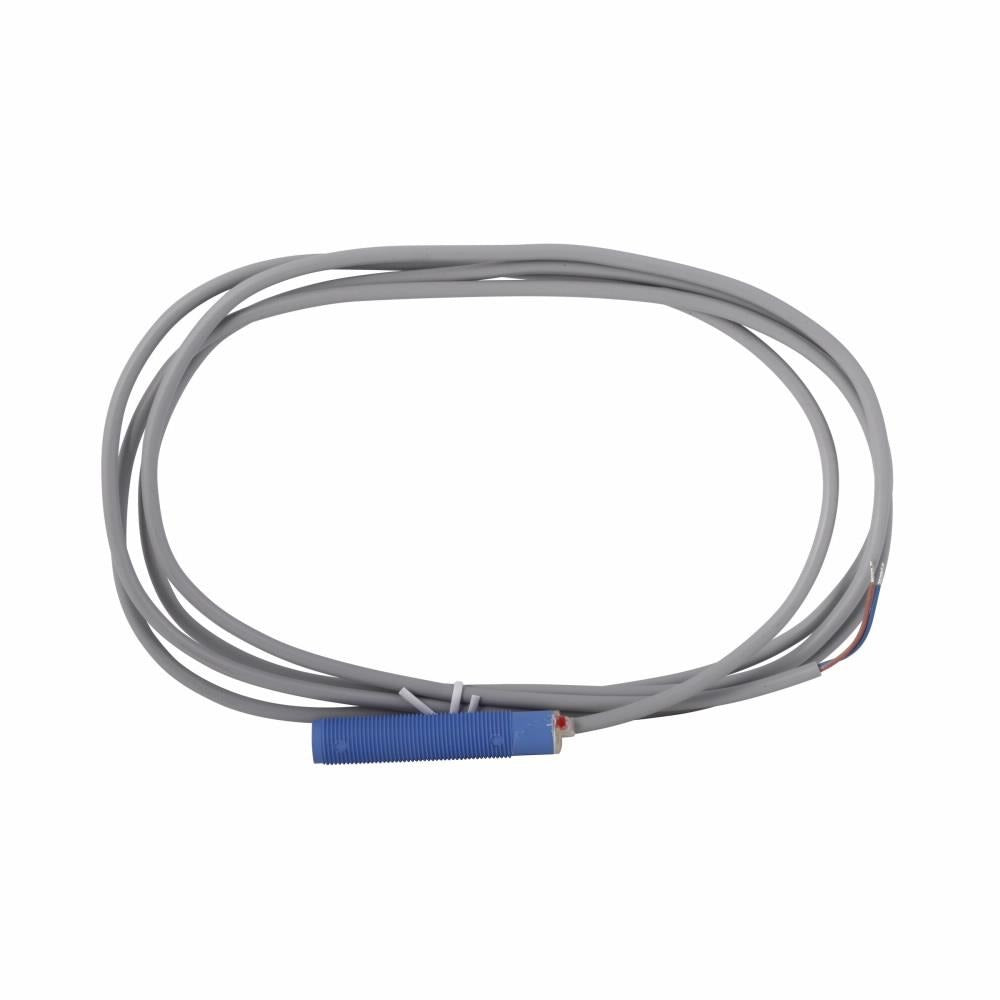

Eaton E55CAL12A2E Inductive Proximity Sensor 20-250 VAC (12 mm)

Product Description

The Eaton E55CAL12A2E is an inductive proximity sensor with a 12 mm M12 housing and a 4 mm sensing distance. It operates on 20–250 V AC with a two-wire normally open output, provides up to 150 mA switching current and a 25 Hz switching frequency, and includes a pre-attached cable. The sensor is non-flush (unshielded), plastic housed, IP66 rated, and rated for operation from -25 to 70 °C.

• 12 mm (M12) threaded plastic housing, 55 mm sensor length, 4 mm sensing distance, non-flush mounting
• Electrical: 20–250 V AC input, two-wire normally open output, max load current 150 mA, switching frequency 25 Hz
• Environmental and protection: IP66 / NEMA 4X, operating temperature -25 to 70 °C, red LED status indicator, polarity reversal and short-circuit protection

Product Highlights

M12 unshielded inductive sensor, 4 mm detection range, 20–250 V AC, two-wire NO output, IP66 rated

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E55CAL12A2E
• Country of Origin: China
