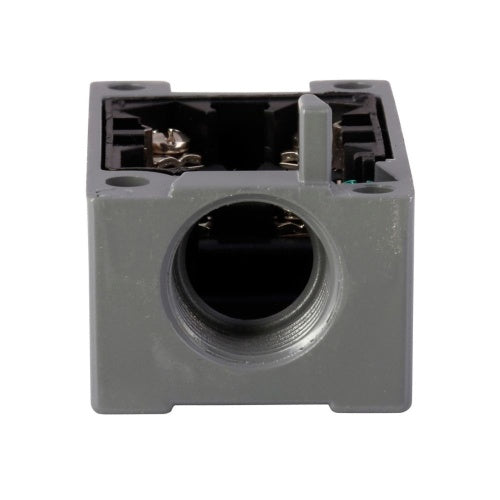

Eaton E51NLP22 NEMA Limit Switch Inductive Proximity Sensor

Product Description

The Eaton E51NLP22 is a NEMA limit switch style modular sensor with diffuse reflective sensing. This photoelectric sensor features an output ON LED indicator, screw terminals, 600 mA, complementary NPN open collector, and operates on 10-30 Vdc. It offers versatile sensing solutions suitable for industrial environments.

• Diffuse reflective sensor type
• Operating temperature range of -13 °F to 158 °F
• Die cast zinc enclosure
• NEMA 3, 3S, 4, 4X, 6, 6P, 12, 13, IP67 environmental ratings

Product Highlights

The Eaton E51NLP22 photoelectric sensor offers diffuse reflective sensing, modular design, and rugged construction for diverse industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E51NLP22
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton E51 NEMA limit switch inductive proximity sensor
• Catalog Number: E51NLP22
• UPC: 782113148847
• Product Length/Depth: 4.99 in
• Product Height: 1.89 in
• Product Width: 1.54 in
• Product Weight: 0.6 lb
• Certifications: UL Listed CSA Certified
• Product Type: Limit switch inductive proximity sensor
• Contact Rating: 600 mA
• Enclosure material: Die cast zinc
• Connection: Screw terminal
• Contact configuration: Complementary NPN open collector
• Series: E51
• Sensor type: Diffuse reflective
• Input voltage: 10-30 Vdc
• LED indicator: Output ON (1 LED per output)
• Protection: Latching short circuit
• Maximum DC current: 600 mA
• Operating temperature - max: 158 °F
• Operating temperature - min: -13 °F
• Environmental rating: NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
• Type: Photoelectric Diffuse Reflex
• UNSPSC Code: 41110000
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: E51NLP22
• Unit of Measure: EA
• MPN: E51NLP22
• Category: Photoelectric
• (Instrument-Sensor) NEMA Protection: NEMA 3S
• (Instrument-Sensor) Connection Type: Screw Terminal
• (Instrument-Sensor) IP Protection: IP67
• (Instrument-Sensor) Type of Operator: NPN
• Manufacturer: Eaton
• (Instrument-Sensor) Temperature Range: -13 °F - 158 °F
• (Instrument-Sensor) Supply Voltage: 10-30 VDC
• (Instrument-Sensor) Enclosure Composition: Die Cast Zinc
• (Instrument-Sensor) Indication: Output On (1 LED Per Output)
• (Instrument-Sensor) Contact Rating: 600 Ma
• Construction Style: Limit Switch
• Sensing Range: 8 in. (200mm)
• Output Mode: NO and NC (Complementary)
• Connection Size: 1/2 in. NPT
• Response Time: Fast
• Enclosure Rating NEMA: NEMA 3, 3S, 4, 4X, 6, 6P, 13
• Wires - Voltage Type: 4 Wire, 10-30V DC
