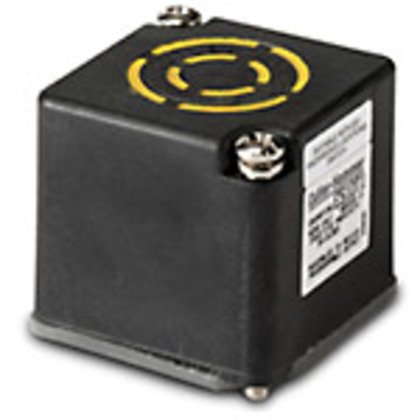

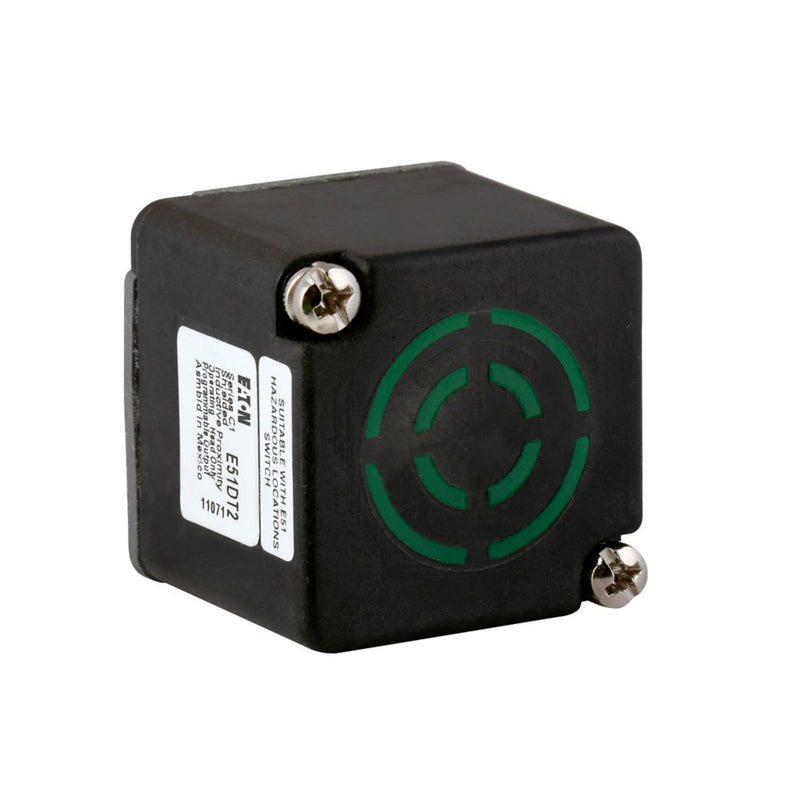

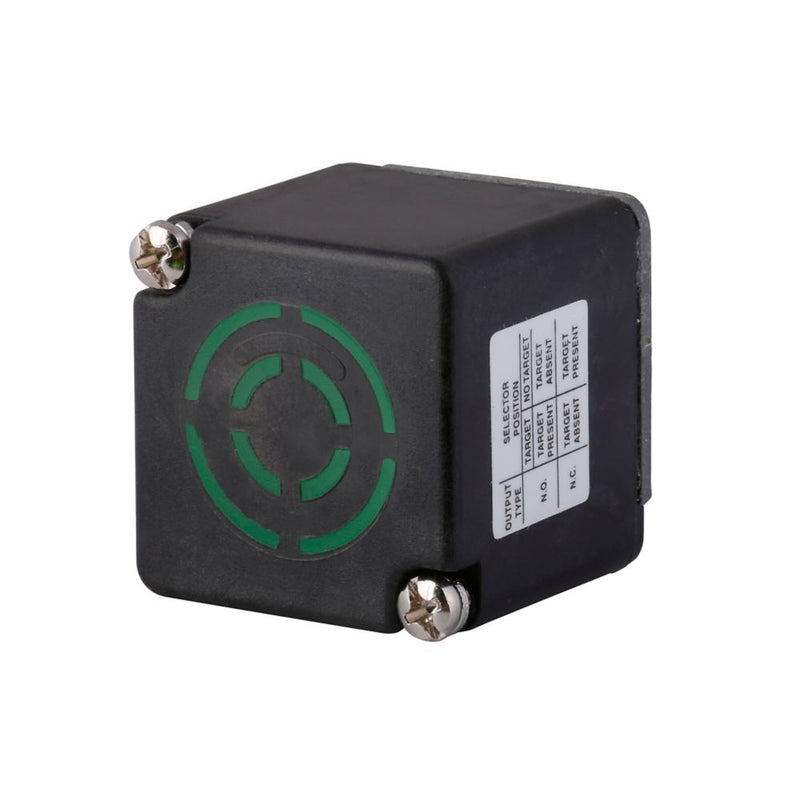

Eaton E51DT2 nema limit switch inductive proximity sensor

Product Description

The Eaton E51DT2 is a NEMA limit switch inductive proximity sensor. This inductive proximity sensor head from the E51 series has a 0.51 in range and features top sensing and shielded operation with alternate frequency. It is designed for stationary machinery and equipment in factory applications.

• Modular design for easy replacement and maintenance
• UL listed, CSA certified, CE and NEMA compliant
• Plastic enclosure material

Product Highlights

The EATON E51DT2 inductive proximity sensor is designed for precise mechanical detection and position sensing in rugged industrial environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E51DT2
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton E51 NEMA limit switch inductive proximity sensor
• Catalog Number: E51DT2
• UPC: 782113344911
• Product Length/Depth: 1.38 in
• Product Height: 1.51 in
• Product Width: 1.51 in
• Product Weight: 0.22 lb
• Warranty: 1 year
• Certifications: UL Listed, CSA Certified
• Product Type: Limit switch inductive proximity sensor
• Actuator function: Shielded
• Frequency rating: Alternate
• Enclosure material: Plastic
• Series: E51
• Environmental rating: NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
• Operating temperature - max: 158 °F
• Operating temperature - min: -13 °F
• Brand: Eaton
• Approval: UL, CSA
• Nema Rating: 3, 3S, 4, 4X, 6, 6P, 12, 13
• For Use With: E51 Series Limit Switches
• Temperature Rating: -13 to 158 deg F
• Actuator Type: Shielded
• Mpn: E51DT2
• GTIN: 00782113344911
• Country of Origin: Mexico
• Dimensions: 1.38 in x 1.51 in x 1.51 in (Length/Depth x Height x Width)
• Category: Motor Control
• Item Subcategory: Motor Control Part And Accessory
• Section: Limit Switch
• Enclosure Type: NEMA 3/3S/4/4X/6/6P/12/13/IP67
• Shield Type: Shielded
• Sensor Type: Inductive Proximity
• Sensing Range: 0.51 in
• Sensing Position: Top
