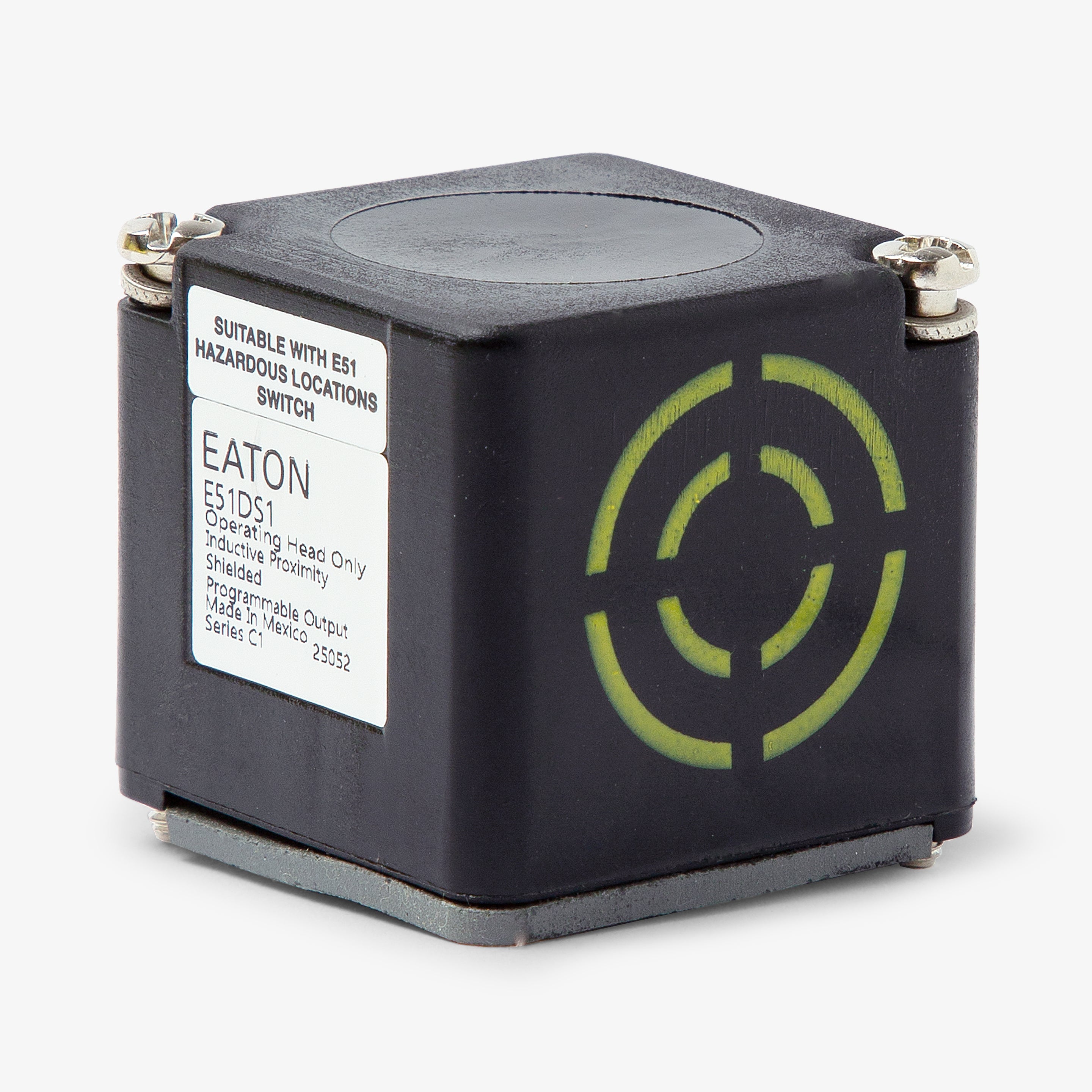

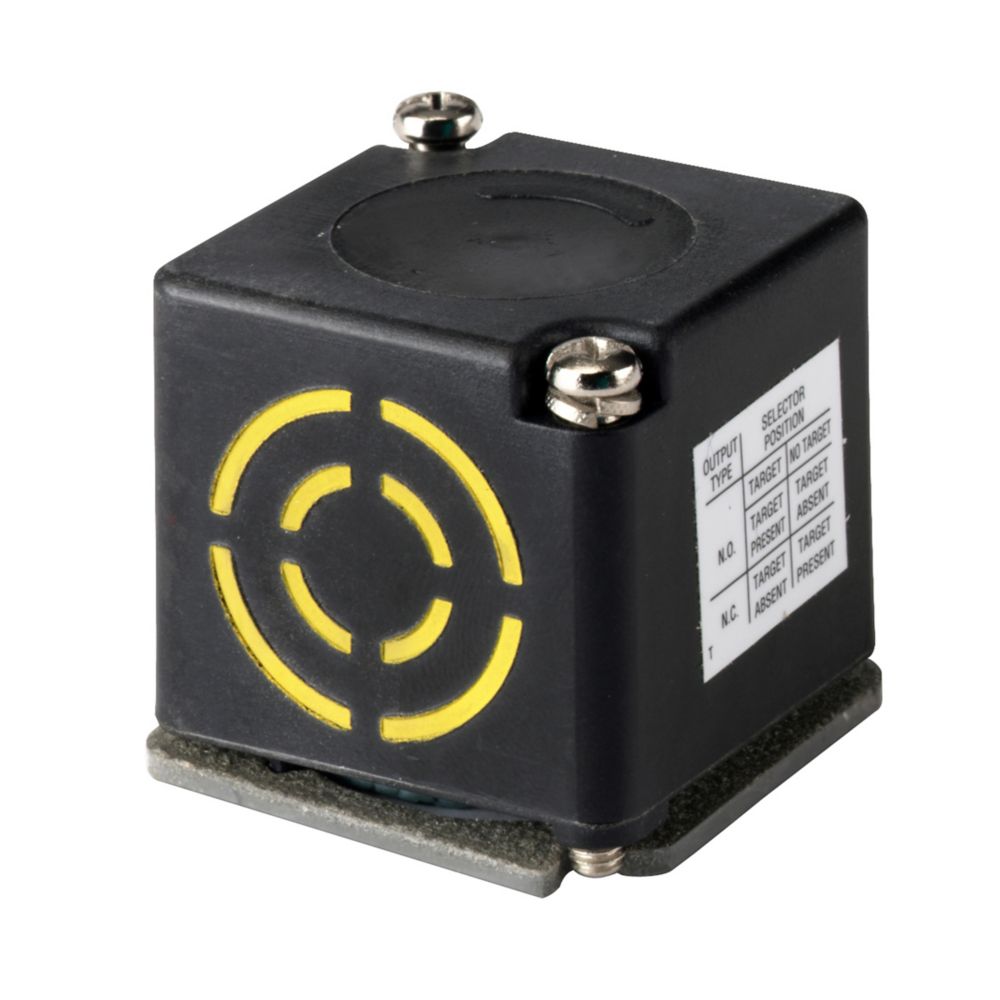

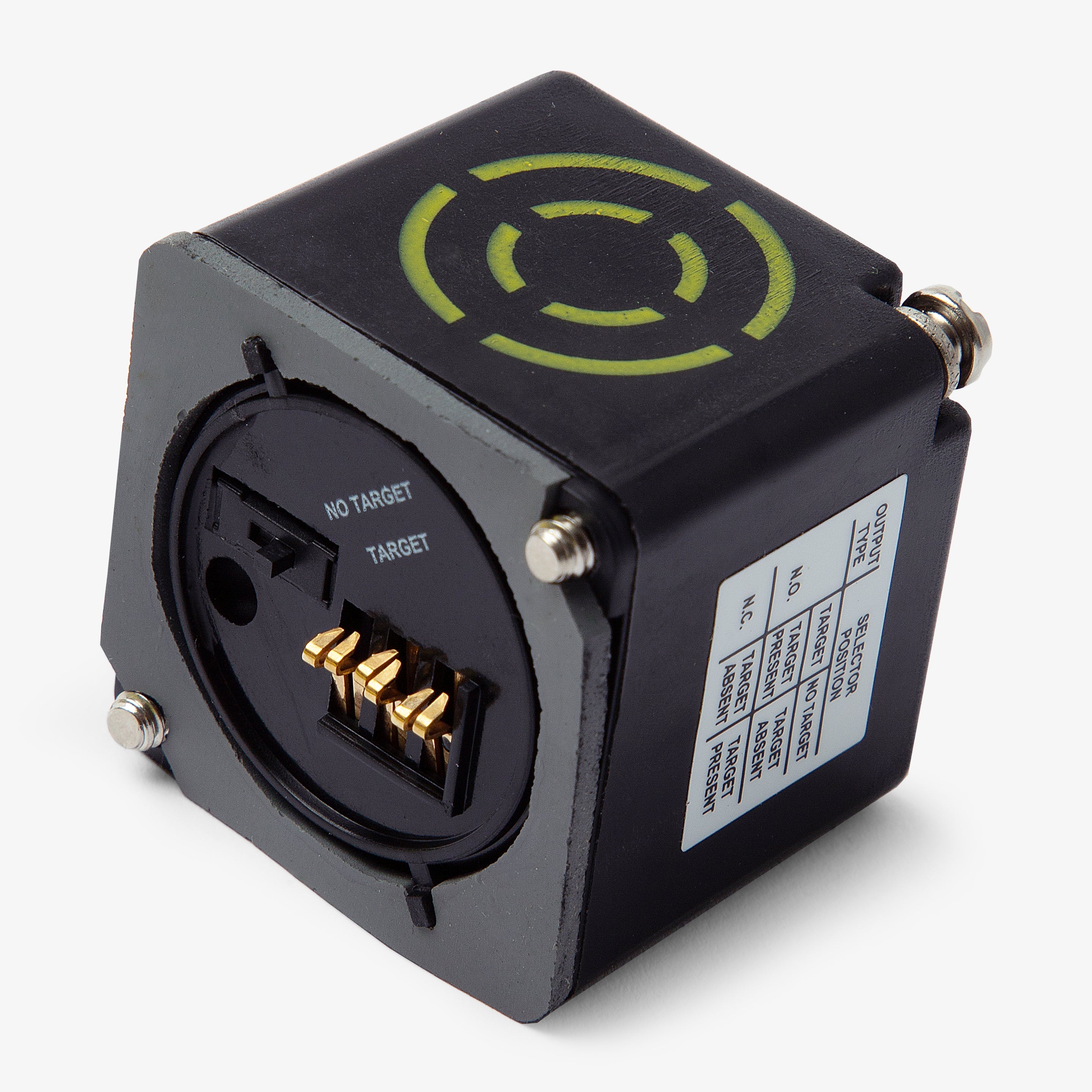

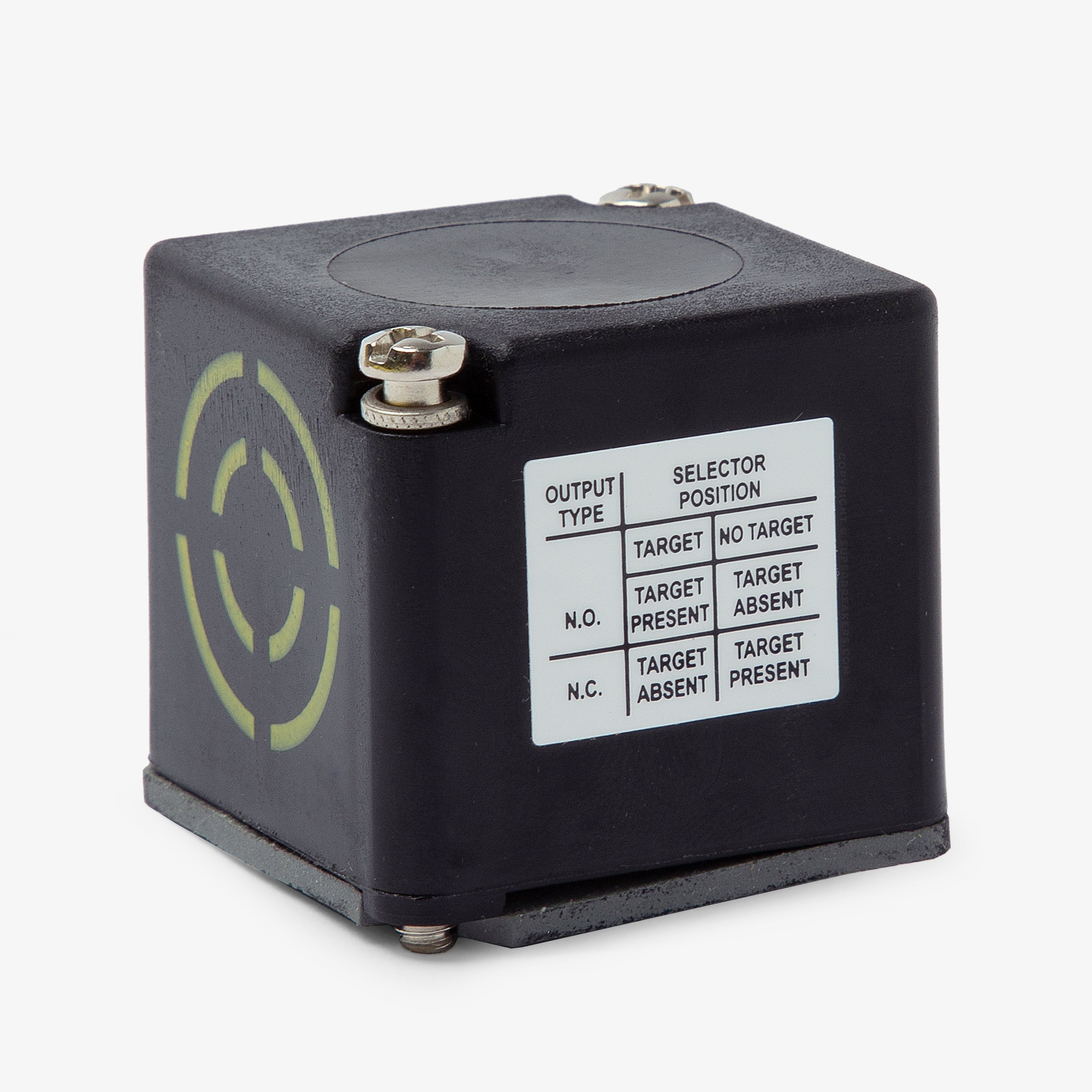

Eaton E51DS1 inductive proximity sensor 0.51 in

Product Description

The Eaton E51DS1 is an inductive proximity sensor with a 0.51 in sensing range and shielded operation. These modular, plug-in components are easy to maintain, which reduces downtime and inventory. It is designed for use with stationary machinery and equipment in factory applications. The sensor can be ordered as a component or fully assembled unit.

• Plastic enclosure material
• Shielded operating mode
• Standard frequency

Product Highlights

The EATON E51DS1 proximity sensor features a shielded actuator and is ideal for factory automation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E51DS1

Technical Specifications

• Enclosure Type: NEMA 3/3S/4/4X/6/6P/12/13/IP67
• Series: E51
• Shield Type: Shielded
• Temperature Rating: -13 to 158 deg F
• Sensor Type: Inductive Proximity
• Sensing Range: 0.51 in
• Sensing Position: Side
• Product Length/Depth: 1.38 in
• Product Height: 1.51 in
• Product Width: 1.51 in
• Product Weight: 0.1 lb
• Warranty: 1 year
• Certifications: CSA Certified, UL Listed
• Product Type: Limit switch inductive proximity sensor
• Actuator function: Shielded
• Frequency rating: Standard
• Enclosure material: Plastic
• Environmental rating: NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
• Operating temperature - max: 158 °F
• Operating temperature - min: -13 °F
• Mounting Type: Base
• Approval: UL, CSA
• Nema Rating: 3, 3S, 4, 4X, 6, 6P, 12, 13
• Actuator Type: Shielded
• Enclosure Material: Plastic
• Mpn: E51DS1
• Upc: 782113344881
• Manufacturer Part Number: E51DS1
• Manufacturer: Eaton - Cutler Hammer
• UNSPSC Code: 41110000
• Unit of Measure: EA
• Operation Mode: Shielded
• Alternate Mfr Part Number: E51DS1
• Frequency: Standard GHz
• Approvals: CSA Certified, UL listed
