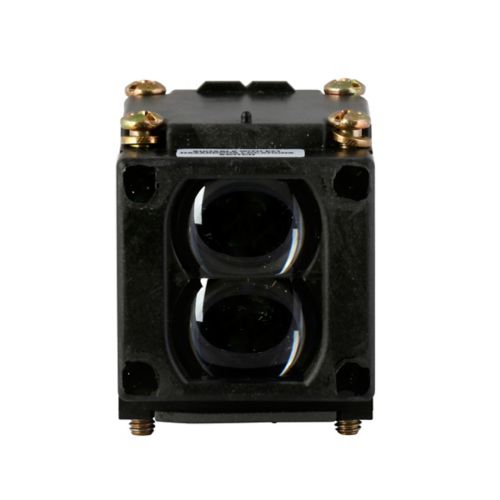

Eaton E51DP3 Limit Switch Photoelectric Sensor 35 ft

Product Description

The Eaton E51DP3 is a limit switch style modular inductive photoelectric sensor head. This photoelectric sensor features a right angle design and a sensing distance of 35 ft. Constructed with a plastic enclosure, it is a non-polarized retroreflective sensor suitable for various applications.

• Rugged construction ideal for industrial environments
• Viton gaskets ensure a positive seal and high resistance to industry chemicals
• Direct replacement for worn out limit switches

Product Highlights

The EATON E51DP3 photoelectric sensor combines high performance with a familiar limit switch style housing. Its modular, plug-in components provide application flexibility and ease of maintenance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E51DP3
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton E51 NEMA limit switch photoelectric sensor
• Catalog Number: E51DP3
• UPC: 782113142920
• Product Length/Depth: 1.54 in
• Product Height: 1.77 in
• Product Width: 1.82 in
• Product Weight: 0.1625 lb
• Warranty: 3 year
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Catalog Notes: Heads feature a light or dark operation selector switch which reverses the output function. Reflex range based on 3 in retroreflector. Diffuse reflective range based on 90% reflectance white card
• Product Type: Limit switch photoelectric sensor
• Enclosure material: Plastic
• Operating mode: Diffuse reflective
• Sensor type: Diffuse reflective
• Switch type: Photoelectric
• Operating temperature - max: 158 °F
• Operating temperature - min: -13 °F
• Environmental rating: NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
• Brand: Eaton - Cutler Hammer
• Numeric ID: 3882615
• Operation Mode: Non Polarized Retroreflective
• Series: E51 Series
• UNSPSC: 39121528
• Application: Electrical Assemblies, Panels and EOEMs Applications
• Response Time: 20 ms ON/30 to 22 ms AC/DC OFF
• Enclosure Type: NEMA 3/3S/4/4X/6/6P/12/13/IP67
• Operating Voltage: 120 Volt AC, 20 to 264 Volt AC/DC, 10 to 30 Volt DC
• Temperature Rating: -13 to 158
• Type: Limit Switch Modular Style Inductive Right Angle
• Sensor Type: Photoelectric/Retroreflective
• Field of View: 12 Inch Diameter at 35 Foot
• Sensing Range: 35 ft. (10.7m)
• Output Mode: Light/Dark Operate
