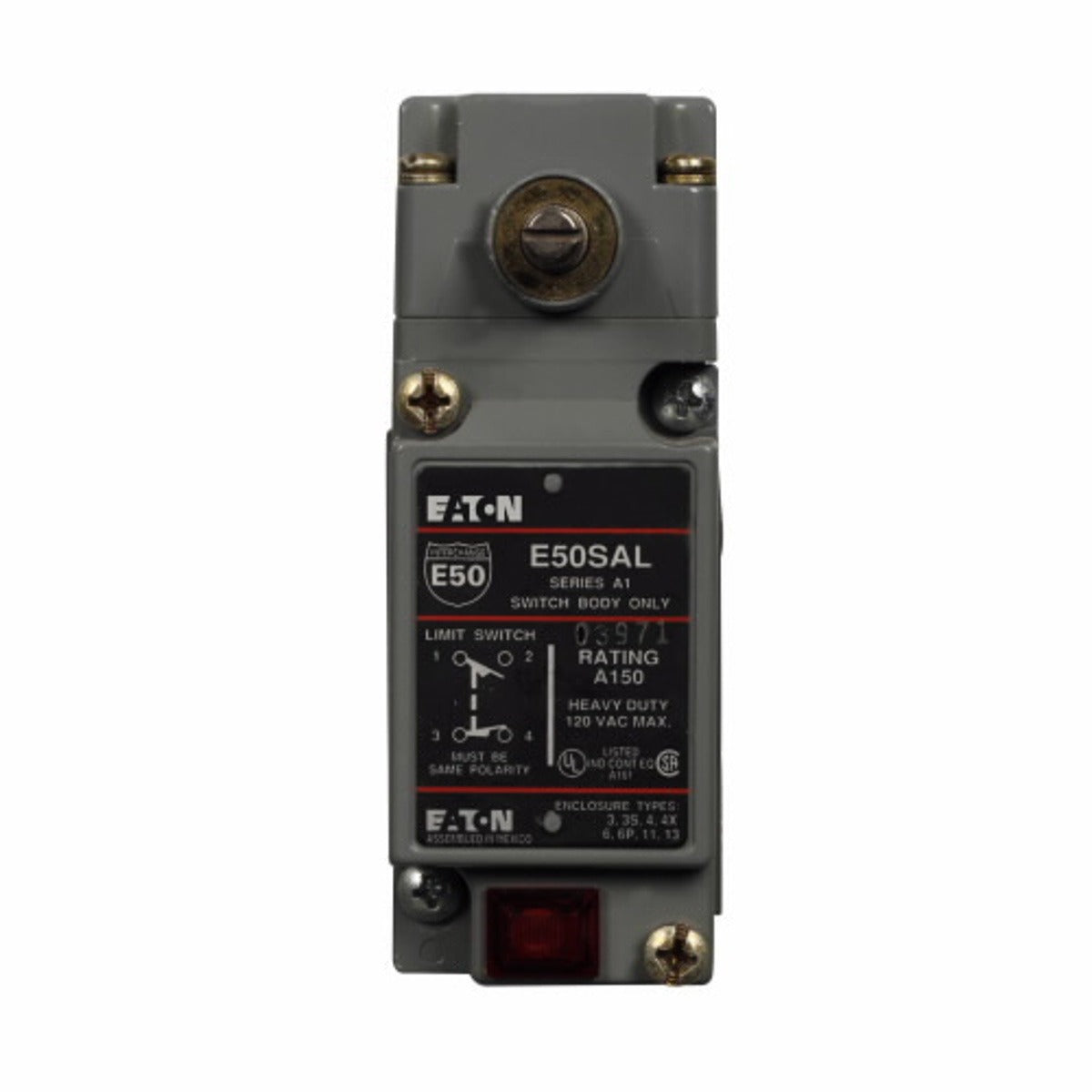

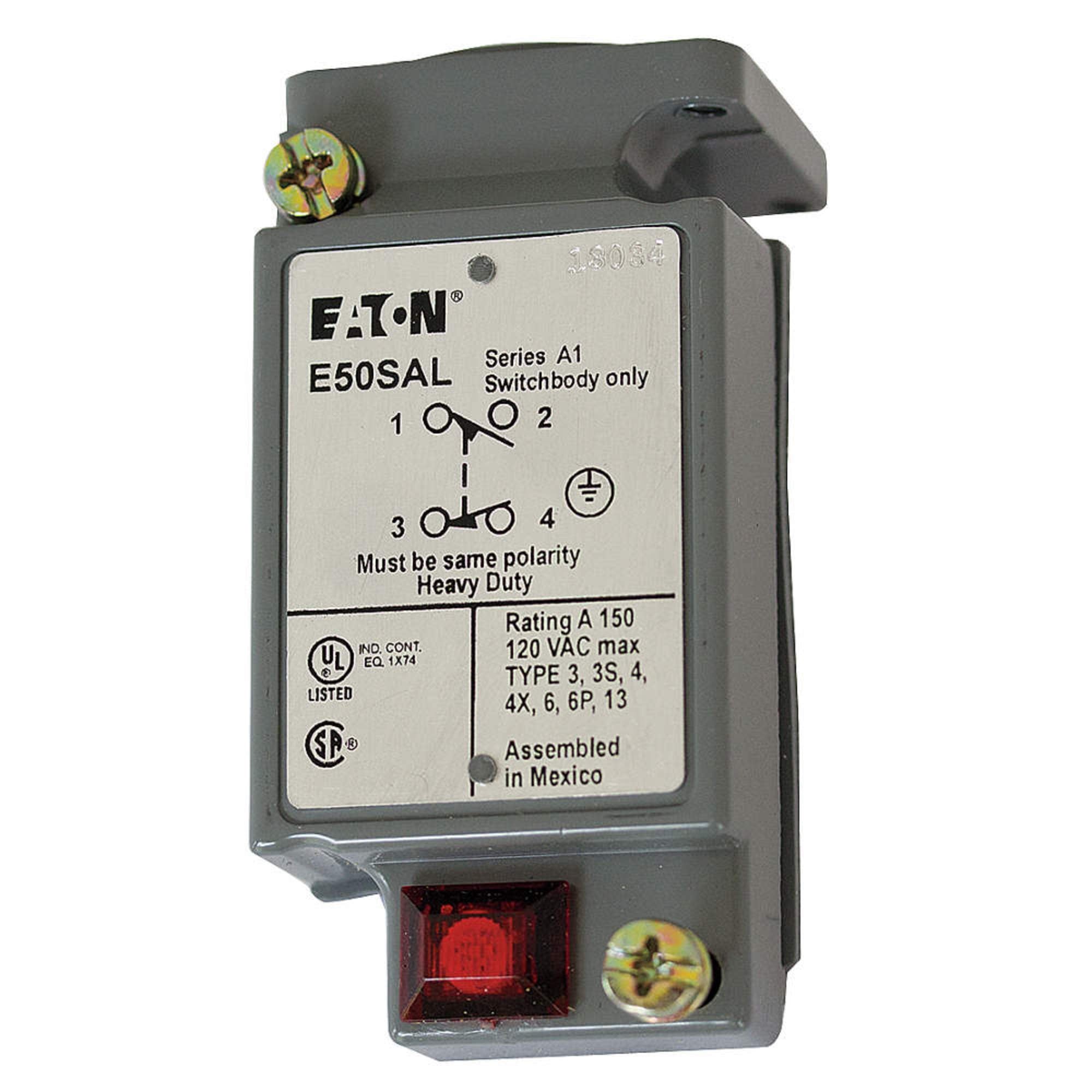

Eaton E50SAL Limit Switch Body 24-120 Vac/dc (1-Pole)

Product Description

Eaton E50SAL is a heavy-duty plug-in limit switch body that provides one normally open and one normally closed contact with an integrated LED indicator. It accepts control voltages of 24–120 Vac/dc and has electrical ratings of 10 A at 120 Vac and 1 A at 125 Vdc. The die-cast zinc enclosure carries multiple NEMA ratings and IP67 protection and operates from -40 to 121 °C for industrial applications.

• Contact configuration: 1 NO and 1 NC; electrical ratings 10 A at 120 Vac and 1 A at 125 Vdc
• Die-cast zinc enclosure with NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13 ratings and IP67 ingress protection

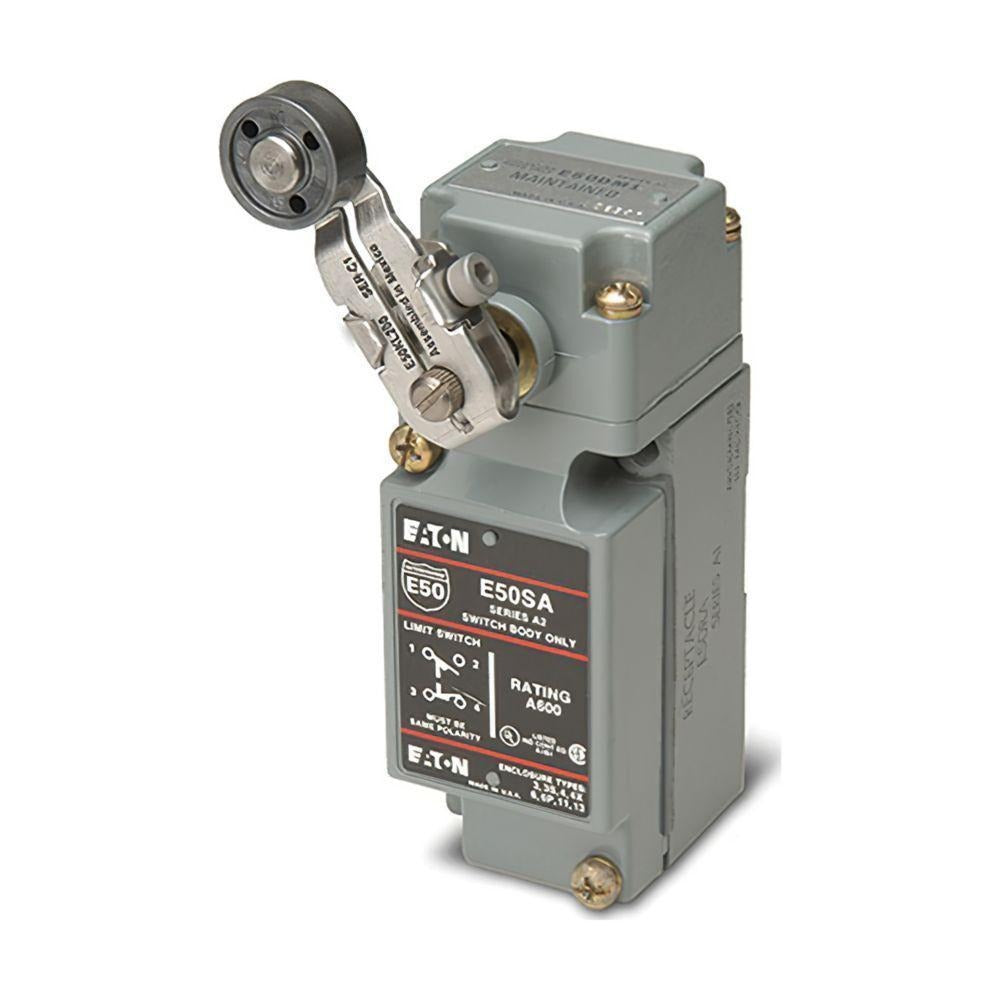

• Integrated LED indicator (24–120 Vac/dc), compatible with E50 series limit switch heads; mounting supports U.S. and DIN standards

Product Highlights

Heavy-duty E50 series limit switch body, 1 NO/1 NC, LED indicator, 24–120 Vac/dc, die-cast zinc housing, NEMA 1/3/3S/4/4X/6/6P/13 and IP67, -40 to 121 °C.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50SAL
• Country of Origin: Mexico
