Eaton E50RAS Limit Switch Receptacle

Product Description

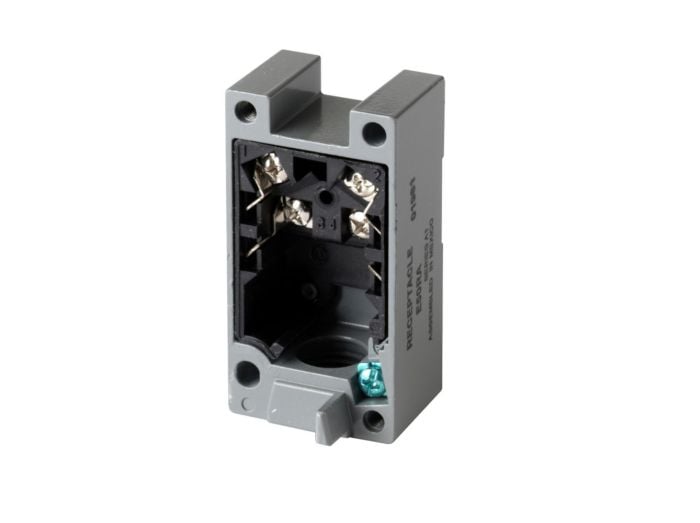

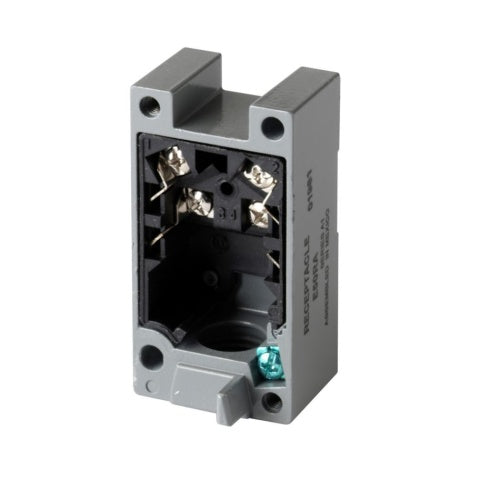

The EATON E50RAS is a heavy-duty limit switch receptacle designed for industrial applications. It is part of the E50 series and features a 5-terminal design. The receptacle is built with die-cast zinc and is suitable for use with E50 series plug-in limit switches.

• Heavy-Duty Plug-In Type
• Zinc Die Cast Construction
• NEMA 1, 2, 3S, 4X, 6P, 13; IP67 rated enclosure
• Modular Plug-In Components

Product Highlights

This receptacle offers design flexibility and high reliability for low maintenance, installation, and inventory costs.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50RAS
• Country of Origin: Mexico

Technical Specifications

• Series: E50
• Contact Configuration: 1NO-1NC 1 Form A/1 Form B
• Poles: 1
• Terminal Type: Screw
• Enclosure: NEMA 1/3/3S/4/4X/6/6P/13/IP67
• Enclosure Material: Die Cast Zinc
• Length: 2.92 in
• Width: 1.54 in
• Height: 1.06 in
• For Use With: E50 Series Heavy Duty Plug-In Limit Switch
• Manufacturer Part Number: E50RA
• Manufacturer: Eaton
• Product Series: E50
• Family Series: Eaton Limit Switches, E50 Series
• Description: Eaton E50 NEMA heavy duty plug-in limit switch receptacle, Gravity return, Screw Terminals, Rear or front mounting, Single-pole
• Actuator Type: Without Actuator
• Conduit Fitting: 1/2 NPT
• Material: Zinc
• (Instrument-Sensor) NEMA Protection: NEMA 3S
• (Instrument-Sensor) IP Protection: IP67
• Component: Receptacle
• (Instrument-Sensor) Enclosure Composition: Die Cast Zinc
• (Instrument-Sensor) Temperature Range: -40 0F - 250 0F
