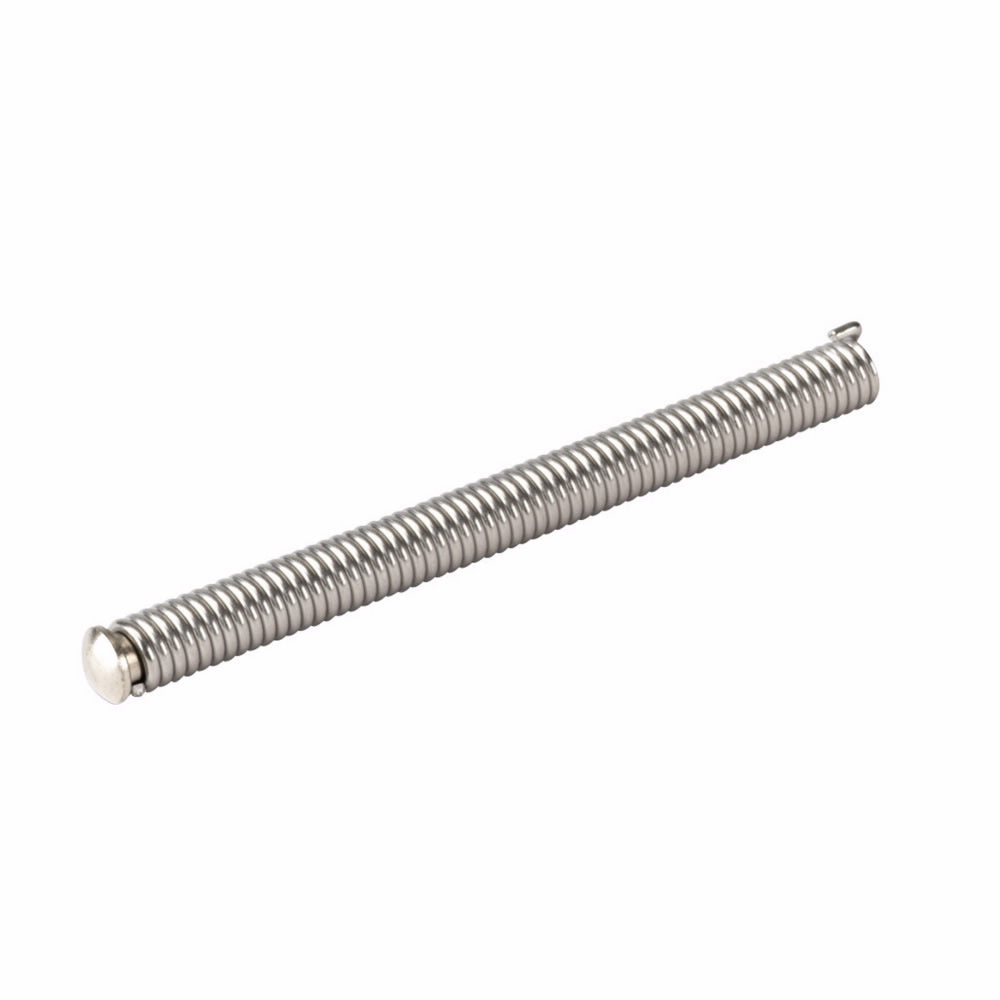

Eaton E50KW4 CH E50 Wobble Operator

Product Description

The EATON E50KW4 is a limit switch operator designed for use with EATON E50 plug-in and 6P+ limit switches, as well as 10316 rotary type limit switches. It features a coil spring wobble heavy-duty plug-in design suitable for industrial facilities and factories applications.

• Features a 4.26 in arm length
• Has a 0.34 in roller diameter
• Made with a nylatron roller material

Product Highlights

This heavy-duty plug-in limit switch accessory is RoHS and CE compliant, UL Listed, and CSA Certified.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50KW4

Technical Specifications

• Application: Industrial Facilities and Factories Applications
• Arm Length: 4.26 in
• Manufacturer Part Number: E50KW4
• Roller Diameter: 0.34 in
• Roller Material: Nylatron
• Series: E50
• Standards/Approvals: ATEX Approved|CE Marking|CSA Certified|Class I Group A/B/C/D, Class II Group E/F/G, Class III|IECEx/ECGJH|UL 1203|RoHS Compliant
• Type: Coil Spring Wobble Heavy Duty Plug-In
• Product Length/Depth: 4.26 in
• Product Height: 0.34 in
• Product Width: 0.34 in
• Product Weight: 0.15 lb
• Warranty: 1 year
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified CE
• Product Type: Heavy duty plug-in limit switch accessory
• Used with: Used with side rotary
• Special features: Used with Used with side rotary
• Cable type: SOOW-A
• Actuator: Coil Spring
• Switch type: Lever for wobble stick switches
• Operating temperature - max: 201 °F
• Operating temperature - min: 14 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
• Material: Stainless steel
• Nema Rating: 1, 3, 3S, 4, 4X, 6, 6P, 13
• Length (in): 4.26
• Width (in): 0.34
• Height (in): 0.34
• For Use With: Side Rotary Switches
• Standards: NEMA, RoHS
• Temperature Rating: 14 to 201 °F
• Duty Rating: Heavy Duty
• Actuator Type: Coil Spring
• Brand: Eaton
• MPN: E50KW4
• UPC: 0782113290782
• Model: E50KW4
• Weight: 0.150
• Length: 4.00
• Alternate Mfr Part Number: E50KW4
• Primary Type: Limit Actuator
• UNSPSC Code: 39120000
• Unit of Measure: EA
