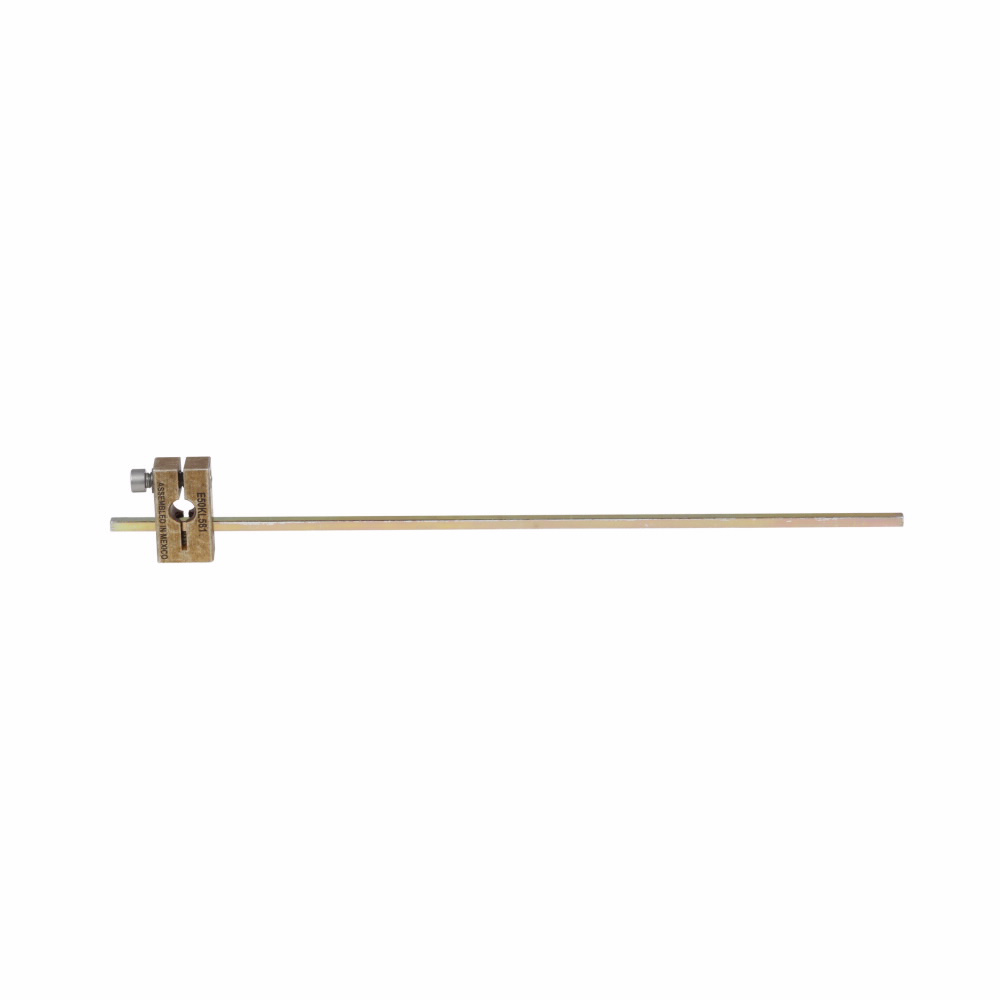

Eaton E50KL598 Operating Lever Adjustable Roller

Product Description

The Eaton E50KL598 is a limit switch lever designed for use with E50AR16P, E50AR1 and side rotary switches. It features an adjustable roller and is used with side rotary switches. Constructed with large nylatron, this heavy-duty plug-in limit switch operator ensures optimal performance for industrial facilities and factories applications.

• Limit Switch Operator
• Adjustable roller
• Used with side rotary

Product Highlights

The EATON E50KL598 is a Limit Switch Lever with adjustable roller, suitable for heavy-duty applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50KL598
• Country of Origin: Canada

Technical Specifications

• Type: Accessory
• Brand: Eaton
• Height: 0.84 Inch
• Length: 6.24 Inch
• Actuator: Adjustable Roller
• Material: Large Nylatron
• Product UPC: 78211330744
• Operating Temperature: 10 to 200 degrees F
• Product Name: Eaton E50 NEMA heavy duty plug-in limit switch operator
• Catalog Number: E50KL598
• Product Length/Depth: 6.24 in
• Product Width: 4 in
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified CE
• Used with: Used with side rotary
• Special features: Adjustable length
• Series: E50
• Switch type: Lever for side rotary switches
• Operating temperature - max: 200 00b0F
• Operating temperature - min: 10 00b0F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
• Nema Rating: 1, 3, 3S, 4, 4X, 6, 6P, 13
• For Use With: E50AR16P, E50AR1 and Side Rotary Switches
• Standards: NEMA, RoHS
• Temperature Rating: 10 to 200 00b0F
• Duty Rating: Heavy Duty
• Actuator Type: Roller Lever
• Mpn: E50KL598
• Upc: 782113307442
• Approval: CE, UL, CSA
• UNSPSC: 39121509
• Application: Industrial Facilities and Factories Applications
• Roller Width: 0.11 in
• Roller Diameter: 4 in
• Roller Material: Nylatron
• Roller Position: Front
• Includes: Bolt and Nut
• Manufacturer: Eaton Electrical
• Accessory Type: Operator
• For Use With/Related Products: E50 Series
• Packaging: Bag
• Lever: Arm Adjustability Adjustable
• Arm Depth: 6.24 in
• Arm Length - Minimum: 0.5 in
• Arm Material: Nylon
• Arm Width: 4 in
• Arm/Operator Length - Maximum: 3.25 in
• Compatible with Brand: Eaton
• Compatible with Grainger Part Number: 49A924; 49A992
• Compatible with Manufacturer Model Number: E50AR1; E50AR16P
• Compatible with Series: E50
• Display Qty: 1
• IP Rating: IP67
• NEMA Enclosure Rating: 1; 3; 3S; 4; 4X; 6; 6P; 13
• Roller Adjustability: Adjustable
