Eaton E50KL581 limit switch operator

Product Description

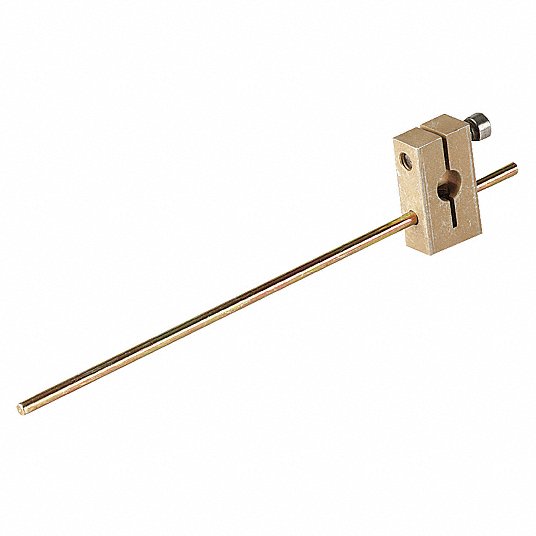

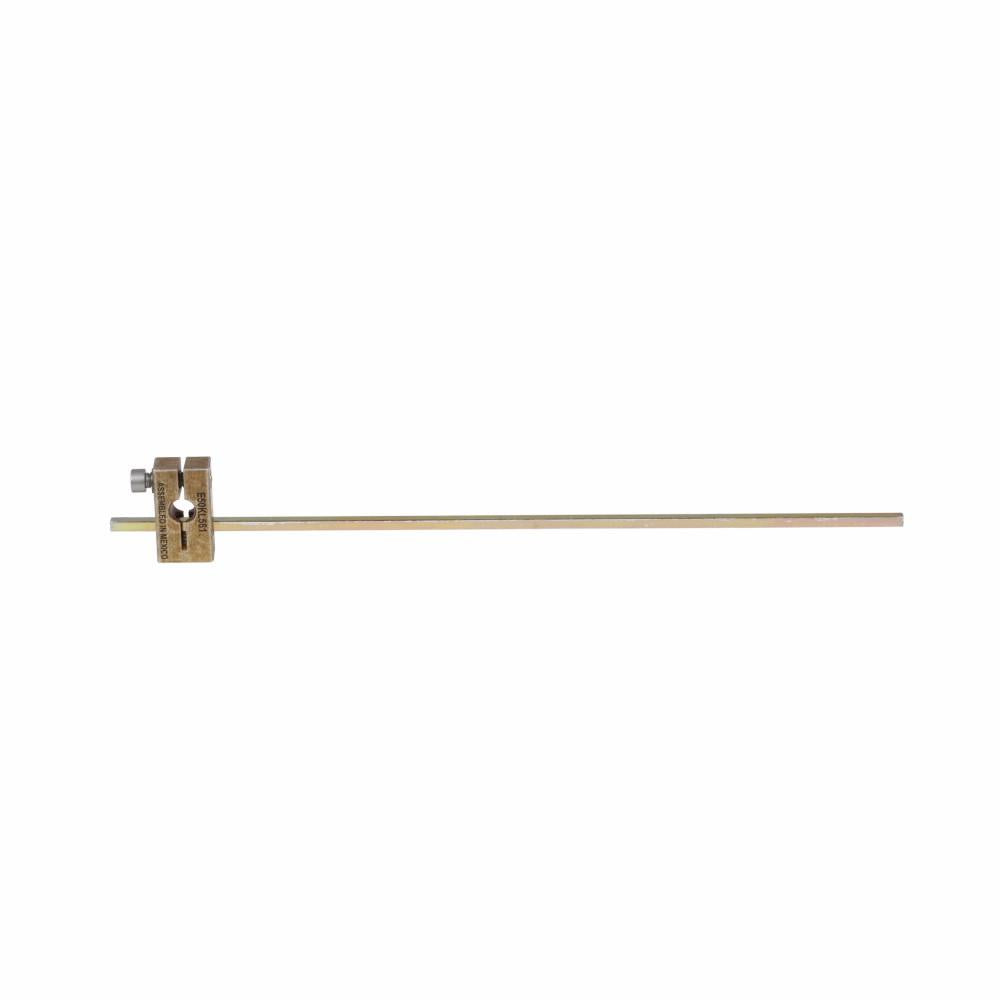

The EATON E50KL581 limit switch operator is a versatile and reliable choice for heavy-duty industrial applications. It is used with EATON E50 plug-in and 6P+ limit switches, as well as 10316 rotary type limit switches. Rod levers for limit switches are long, thin actuators that pivot around an axis and activate at preset positions.

• Modular, plug-in components provide application flexibility and reduced inventory.
• Manufactured to withstand harsh industrial environments.
• Chemical-resistant Viton gaskets, seals, and boots are standard.

Product Highlights

The EATON E50KL581 offers design flexibility, withstands harsh environments, and comes with chemical-resistant features. With modular, plug-in components, they reduce maintenance and inventory costs and simplify installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50KL581
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton E50 NEMA heavy duty plug-in limit switch operator
• Catalog Number: E50KL581
• UPC: 782113308753
• Product Length/Depth: 9.07 in
• Product Height: 0.38 in
• Product Width: 1.12 in
• Product Weight: 0.3 lb
• Warranty: 1 year
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified CE
• Product Type: Heavy duty plug-in limit switch accessory
• Used with: Used with side rotary
• Type: Operating Lever
• Cable type: SOOW-A
• Actuator Type: Rod
• Torque rating: 2.2 in-oz min return
• Series: E50
• Switch type: Lever for side rotary switches
• Operating Temperature - Max: 200 °F
• Operating Temperature - Min: 10 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
• Material: Metal Metal Rod Clamp: Aluminum
• Arm Length: 8-3/4 in
• Roller Diameter: 0.12 in
• Roller Material: Metal
• Arm Adjustability: Adjustable
• Arm Depth: 9.07 in
• Arm Length - Minimum: 1 in
• Arm Material: Metal
• Arm Width: 1.12 in
• Arm/Operator Length - Maximum: 9 in
• Compatible with Brand: Eaton
• Compatible with Grainger Part Number: 49A924;
• Compatible with Manufacturer Model Number: E50AR1;
• Compatible with Series: E50
• IP Rating: IP67
• Manufacturer Warranty Length: 1 yr
• NEMA Enclosure Rating: 1; 3; 3S; 4; 4X; 6; 6P; 13
• Standards: CE; CSA; RoHS; UL Listed
• UNSPSC: 39121509
• Operator Type: Limit Switch Rotary Lever
• Rod Type: Adjustable, Square
• Shaft: Metal
• Rod Length: 8.75 in. (222mm) Max
• Rod Diameter: Square 0.12 in. (3.2mm)
• (Instrument-Sensor) NEMA Protection: NEMA 3S
• (Instrument-Sensor) IP Protection: IP69K
• Manufacturer: Eaton
• Component: Operator
• (Instrument-Sensor) Actuator: Side Rotary
• (Instrument-Sensor) Temperature Range: 10 °F - 200 °F
• Accessory Type: Operator
• For Use With/Related Products: E50 Series
• Packaging: Bag
