Eaton E50KL556 nema heavy duty plug-in limit switch operator

Product Description

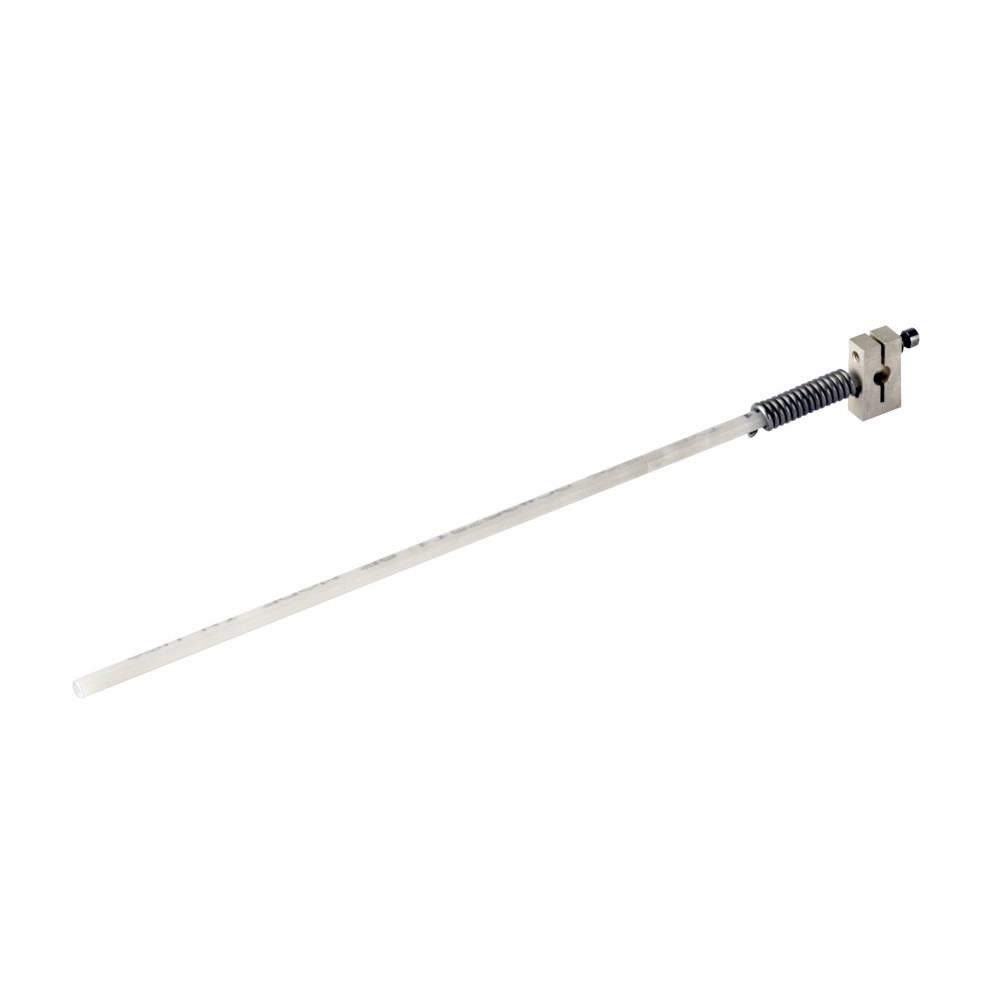

The EATON E50KL556 is a NEMA heavy-duty plug-in limit switch operator. It features a rotary lever with a rod clamp and a 12-inch length nylon spring rod with an aluminum clamp. Suitable for use with side rotary switches, this limit switch is designed for durability and versatility in demanding industrial environments.

• Heavy-duty plug-in design for reliable performance
• Includes a 12-inch nylon spring rod with aluminum clamp
• Suitable for use with side rotary switches

Product Highlights

This EATON limit switch operator is ideal for machine tool, automotive, and wastewater treatment applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50KL556
• Country of Origin: Mexico

Technical Specifications

• SKU: E50KL556
• Product Name: Eaton E50 NEMA heavy duty plug-in limit switch operator
• Catalog Number: E50KL556
• UPC: 782113306070
• Product Length/Depth: 12.44 in
• Product Height: 0.38 in
• Product Width: 1.12 in
• Product Weight: 0.3 lb
• Warranty: 1 year
• Compliances: RoHS Compliant, CE Marked
• Certifications: UL Listed, CSA Certified, CE
• Product Type: Heavy duty plug-in limit switch accessory
• Used with: Used with side rotary
• Type: Operating Lever
• Cable type: SOOW-A
• Actuator: Rod
• Series: E50
• Switch type: Lever for side rotary switches
• Operating Temperature - Max: 200 °F
• Operating Temperature - Min: 10 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
• Material: Nylon
• Country of Origin: China
• Suitable For Use With: Limit Switches Operator
• Arm Length: 12.12 in
• Roller Diameter: 1/4 in
• Roller Material: Nylon
• Operator Type: Limit Switch Rotary Lever
• Rod Type: Spring
• Shaft: Nylon
• Rod Length: 12.12 in. (308mm) Max
• Rod Diameter: 0.25" (6.4mm)
• Arm Adjustability: Adjustable
• Arm Depth: 12.44 in
• Arm Length - Minimum: 1 in
• Arm Material: Nylon
• Arm Width: 1.12 in
• Arm/Operator Length - Maximum: 9 in
• Compatible with Brand: Eaton
• Compatible with Grainger Part Number: 49A924; 49A992
• Compatible with Manufacturer Model Number: E50AR1; E50AR16P
• Compatible with Series: E50
• Display Qty: 1
• IP Rating: IP67
• Manufacturer Warranty Length: 1 yr
• NEMA Enclosure Rating: 1; 3; 3S; 4; 4X; 6; 6P; 13
• Standards: CE; CSA; RoHS; UL Listed
