Eaton E50KL553 E50 nema heavy duty plug-in limit switch operator

Product Description

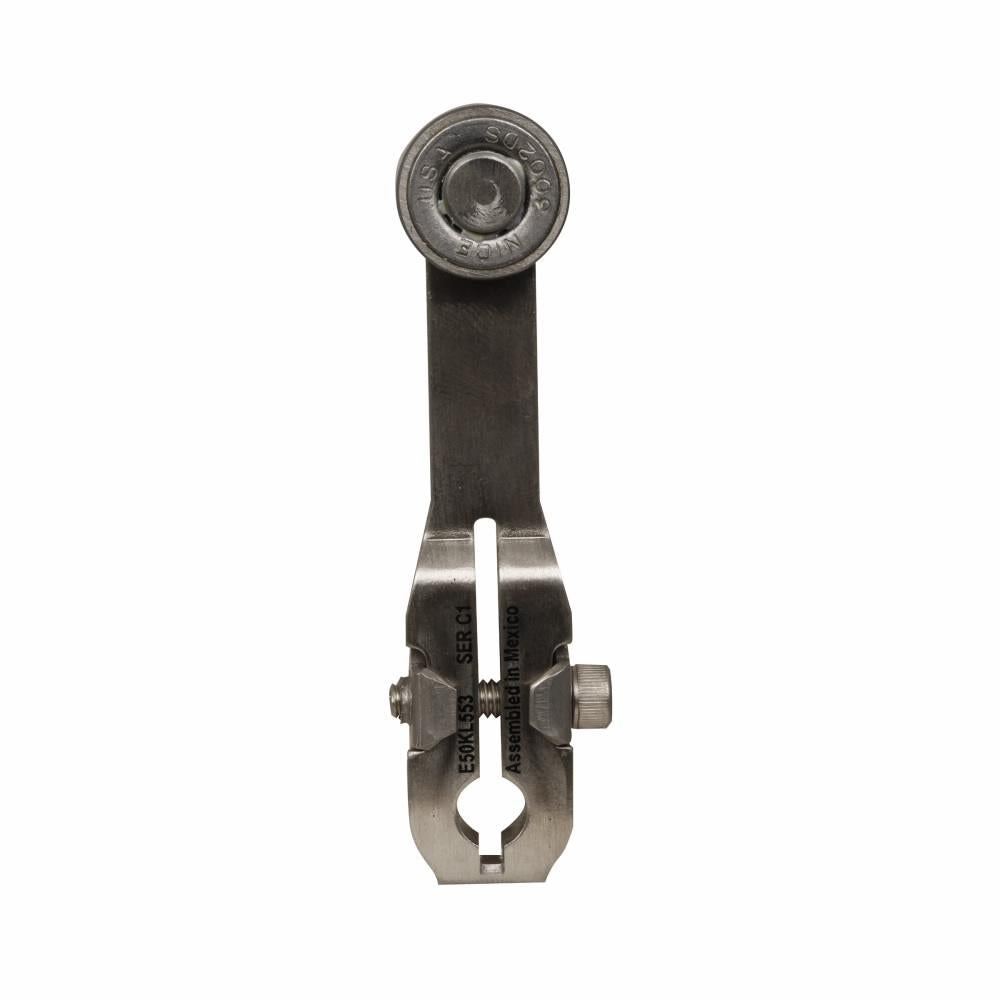

The Eaton E50KL553 is a heavy-duty plug-in limit switch accessory. It is used with side rotary switches. The switch features a 2.5 inch length Type 303 stainless steel lever and a standard ball bearing roller. It is suitable for demanding industrial settings and offers design flexibility.

• Heavy duty plug-in limit switch accessory
• Used with side rotary
• Operating Lever
• Standard ball bearing roller

Product Highlights

The Eaton E50KL553 is a reliable choice for heavy-duty industrial applications. It withstands harsh environments and reduces maintenance and inventory costs.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50KL553

Technical Specifications

• Catalog Number: E50KL553
• UPC: 782113308722
• Product Length/Depth: 3.22 in
• Product Height: 0.61 in
• Product Width: 0.69 in
• Product Weight: 0.1 lb
• Warranty: 1 year
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified CE
• Product Type: Heavy duty plug-in limit switch accessory
• Used with: Used with side rotary
• Special features: Used with Used with side rotary
• Type: Operating Lever
• Cable type: SOOW-A
• Actuator: Standard ball bearing roller
• Torque rating: 1.5 in-oz min return
• Series: E50
• Switch type: Lever for side rotary switches
• Operating temperature - max: 200 °F
• Operating temperature - min: 10 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
• Material: Roller: Steel ball bearing Lever: Stainless steel
• Arm Length: 2-1/2 in
• Roller Diameter: 0.69 in
• Roller Width: 1/4 in
• Roller Material: Stainless Steel
• Arm Material: Stainless Steel
• (Instrument-Sensor) NEMA Protection: NEMA 3S
• (Instrument-Sensor) IP Protection: IP69K
• Manufacturer: Eaton
• Component: Operator
• (Instrument-Sensor) Temperature Range: 10 °F - 200 °F
