Eaton E50KL531 E50 NEMA Limit Switch Operator 1-1/2 in

Product Description

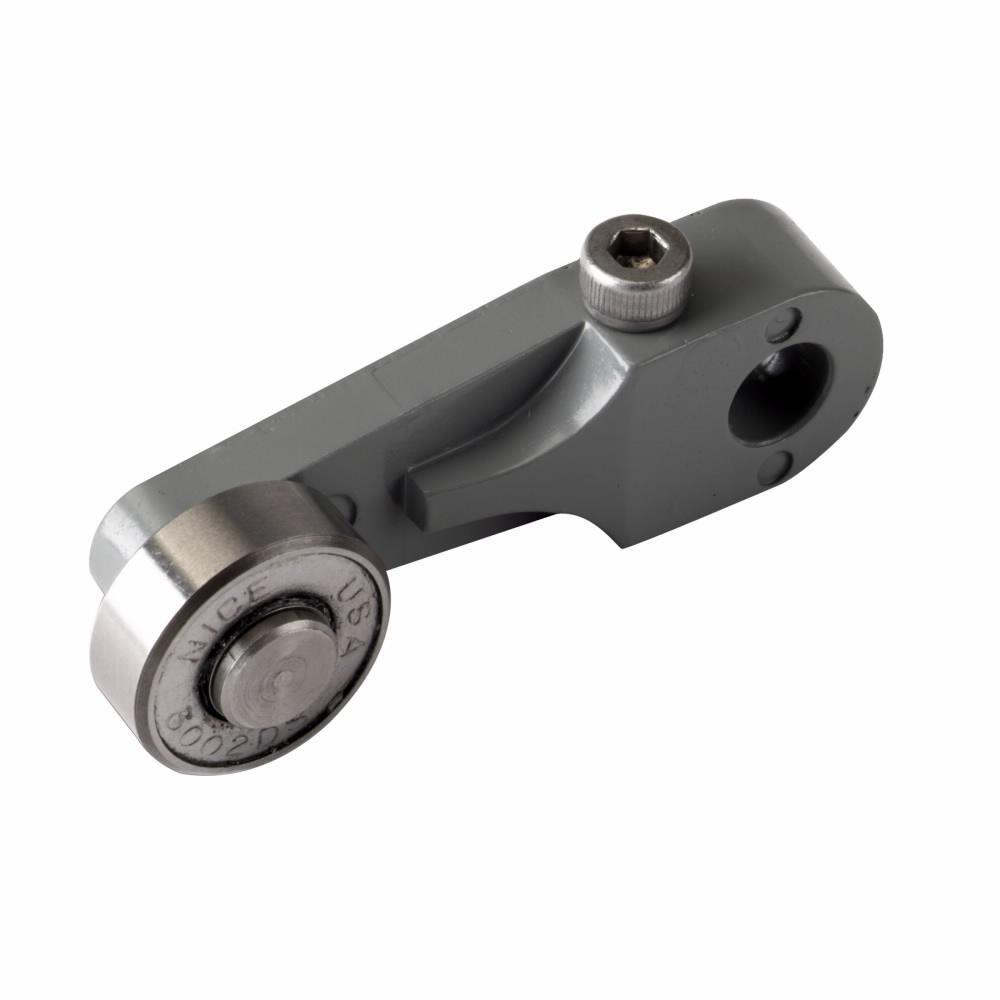

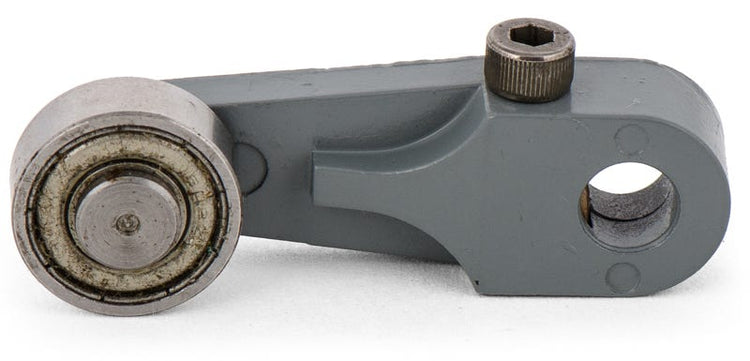

The EATON E50KL531 is a heavy-duty plug-in limit switch operator designed for use with side rotary switches. It features a stainless steel lever and a standard ball bearing roller. This limit switch operator is suitable for various applications requiring reliable and durable performance.

• 2.22 in L x 0.75 in W x 0.69 in H product dimension
• Standard ball bearing roller actuator
• NEMA 1/3/3S/4/4X/6/6P/13/IP67 enclosure rating

Product Highlights

The EATON E50KL531 ensures precise and consistent operation in demanding industrial environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50KL531

Technical Specifications

• Product Name: Eaton E50 NEMA heavy duty plug-in limit switch operator
• Catalog Number: E50KL531
• UPC: 782113297897
• Product Length/Depth: 2.22 in
• Product Height: 0.69 in
• Product Width: 0.75 in
• Product Weight: 0.15 lb
• Warranty: 1 year
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified CE
• Product Type: Heavy duty plug-in limit switch accessory
• Used with: Used with side rotary
• Type: Operating Lever
• Cable type: SOOW-A
• Actuator: Standard ball bearing roller
• Series: E50
• Switch type: Lever for side rotary switches
• Operating temperature - max: 200 °F
• Operating temperature - min: 10 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
• Material: Stainless steel Roller: Steel ball bearing Lever: Stainless steel
• Brand: Eaton/Cutler-Hammer
• Approval: CE, UL, CSA
• Nema Rating: 1, 3, 3S, 4, 4X, 6, 6P, 13
• Length (in): 2.22
• Width (in): 0.75
• Height (in): 0.69
• For Use With: Side Rotary Switches
• Standards: NEMA, RoHS
• Temperature Rating: 10 to 200 °F
• Duty Rating: Heavy Duty
• Actuator Type: Standard Ball Bearing Roller
• Mpn: E50KL531
• Upc: 78211329789
• Gtin: 782113297897
• UNSPSC Code: 39120000
• Manufacturer Part Number: E50KL531
• Unit of Measure: EA
• Minimum Order Qty: 1
• Order Interval: 1
• Arm Length: 1-1/2 in
• Arm Material: Stainless Steel
• Catalog ID: C-HE50KL531
• Roller Diameter: 0.69 in
• Roller Width: 1/4 in
• Roller Material: Stainless Steel
• Roller Position: Front
• Condition: New
