Eaton E50KL40 E50 Operating Lever 1.38 in L

Product Description

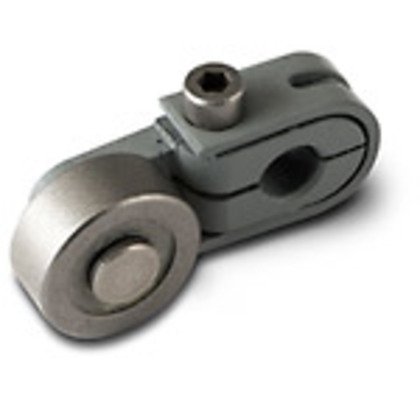

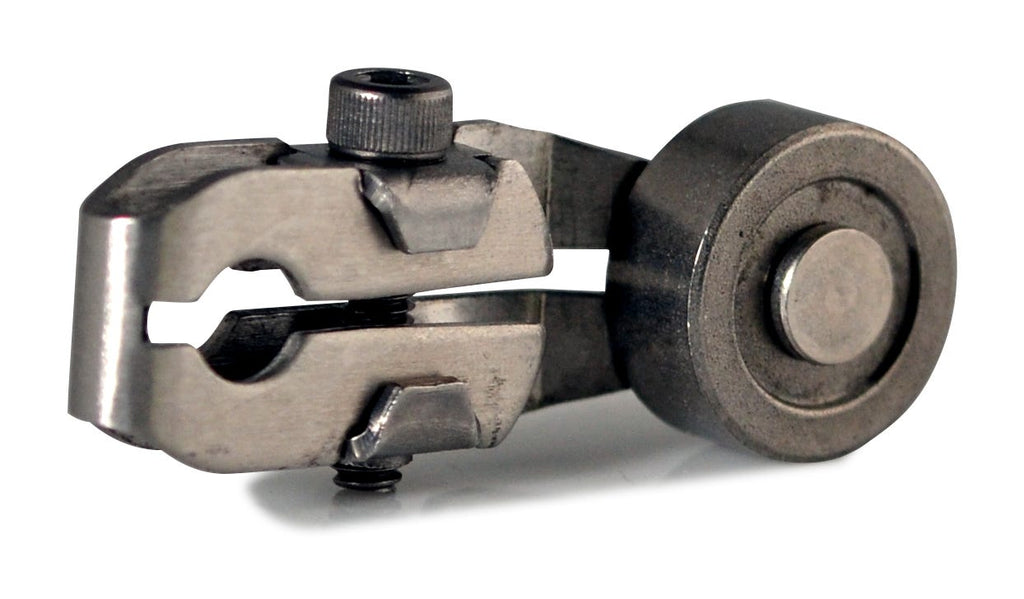

The Eaton E50KL40 is a limit switch lever with a standard roller actuator. This heavy-duty plug-in limit switch accessory is made with stainless steel and a metal roller. It is designed for use with side rotary switches and is suitable for industrial facilities and factories applications.

• Used with side rotary
• Stainless steel and metal roller construction
• NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67 environmental rating

Product Highlights

The EATON E50KL40 lever ensures reliable performance in demanding industrial environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50KL40
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton E50 NEMA heavy duty plug-in limit switch operator
• Catalog Number: E50KL40
• UPC: 782113317496
• Product Length/Depth: 2.1 in
• Product Height: 0.65 in
• Product Width: 0.75 in
• Product Weight: 0.1 lb
• Warranty: 1 year
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified CE
• Product Type: Heavy duty plug-in limit switch accessory
• Used with: Used with side rotary
• Type: Non-Adjustable Straight Standard Roller Heavy Duty Plug-In
• Cable type: SOOW-A
• Actuator: Standard roller
• Series: E50
• Switch type: Lever for side rotary switches
• Operating temperature - max: 200 °F
• Operating temperature - min: 10 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
• Material: Stainless steel Roller: Metal Lever: Stainless steel
• Nema Rating: NEMA 1/3/3S/4/4X/6/6P/13
• Mpn: E50KL40
• Gtin: 00782113317496
• Numeric ID: 3882618
• Mounting: Device
• Length: 1.380 in
• UNSPSC: 39122213
• Application: Industrial Facilities and Factories Applications
• Roller Width: 0.32
• Roller Diameter: 3/4
• Roller Material: Metal
• Roller Position: Front
• Lever Material: Stainless Steel
• Lever Length/Radius: 1.38 Inch
