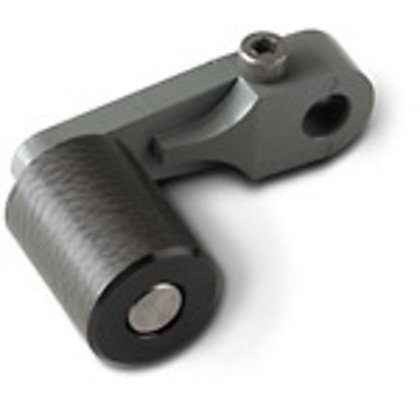

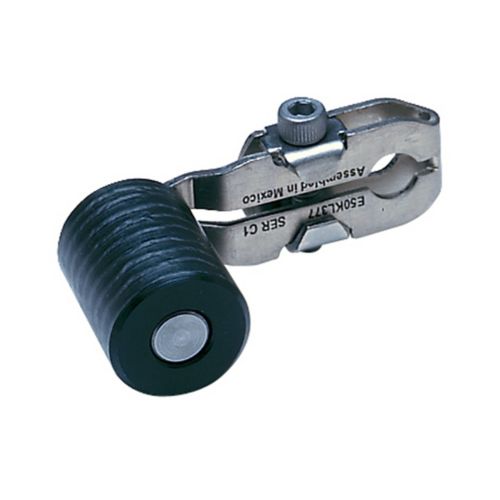

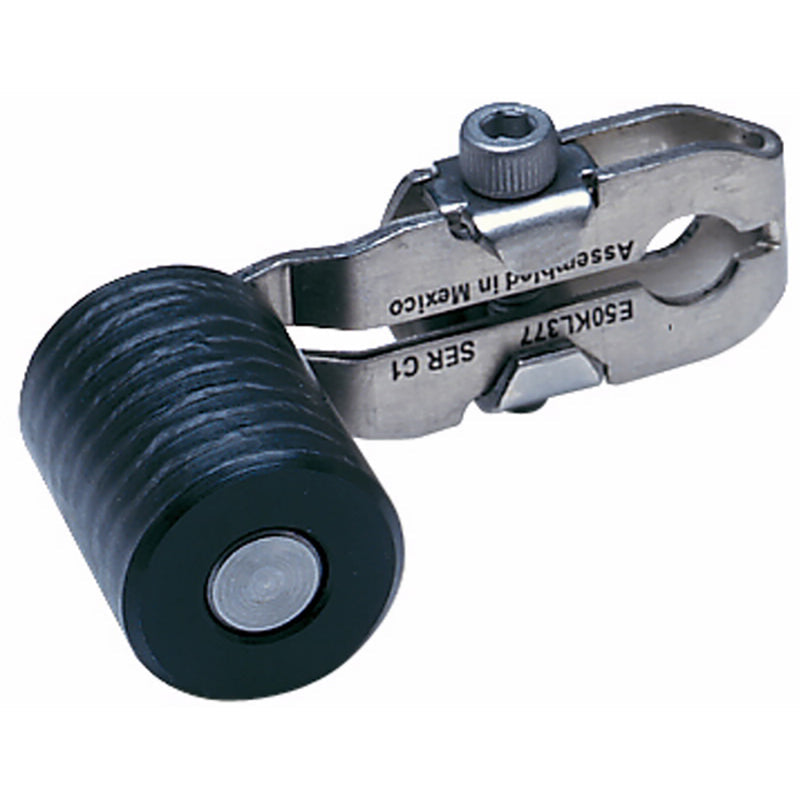

Eaton E50KL377 E50 NEMA heavy duty plug-in limit switch operator 1.5 inch length

Product Description

The Eaton E50KL377 is an E50 NEMA heavy-duty plug-in limit switch operator. Designed for use with side rotary switches, it features a 1.5 inch long Type 303 stainless steel lever and a Nylatron roller. This limit switch operator is suitable for demanding industrial motor control applications.

• Heavy duty limit switch operator
• Rotary lever with stainless steel arm
• Durable Nylatron roller

Product Highlights

The EATON E50KL377 limit switch operator offers reliable operation in harsh environments and is compatible with E50 series limit switches.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50KL377
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton E50 NEMA heavy duty plug-in limit switch operator
• Catalog Number: E50KL377
• UPC: 782113297873
• Product Length/Depth: 2.22 in
• Product Height: 1.33 in
• Product Width: 0.75 in
• Product Weight: 0.15 lb
• Warranty: 1 year
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified CE
• Product Type: Heavy duty plug-in limit switch accessory
• Used with: Used with side rotary
• Type: Operating Lever
• Cable type: SOOW-A
• Actuator: Roller lever
• Torque rating: 0.96 in-oz min return
• Series: E50
• Switch type: Lever for side rotary switches
• Operating temperature - max: 200 °F
• Operating temperature - min: 10 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
• Material: Nylatron Roller: Nylatron Lever: Stainless steel
• Mounting Type: Device
• Approval: CE, UL, CSA
• Nema Rating: 1, 3, 3S, 4, 4X, 6, 6P, 13
• Length (in): 2.22
• Width (in): 0.75
• Height (in): 1.33
• For Use With: E50AR16P, E50AR1 and Side Rotary Switches
• Standards: NEMA, RoHS
• Temperature Rating: 10 to 200 °F
• Duty Rating: Heavy Duty
• Brand: Eaton
• Model: E50KL377
• Depth: 0.750
• Length: 2.250
• Category: Switches
• Part Status: Active
• Manufacturer: Eaton Electrical
• Accessory Type: Operator
• For Use With/Related Products: E50 Series
• Packaging: Bag
