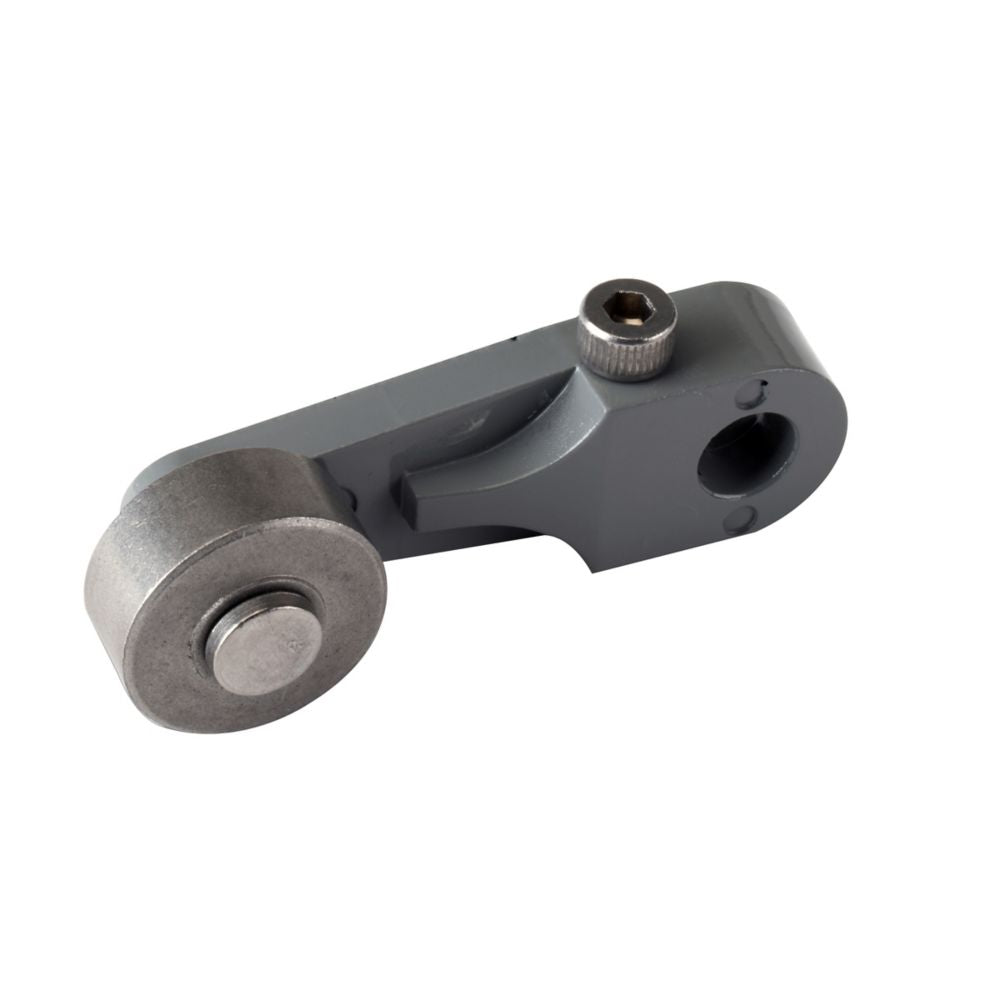

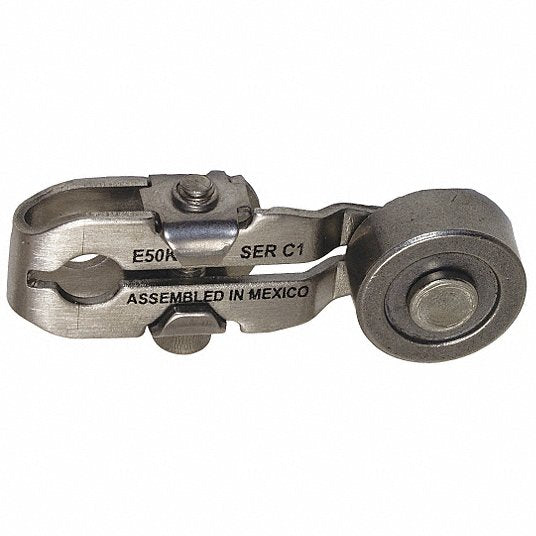

Eaton E50KL355 Limit Switch Lever Standard Roller

Product Description

The EATON E50KL355 limit switch lever is an accessory for use with side rotary limit switches. Constructed of metal, this standard roller lever is part of the E50 series. It provides smooth contact with moving objects to reduce friction and minimize wear.

• Limit switch lever
• Standard roller
• Metal construction

Product Highlights

The EATON E50KL355 limit switch lever is a durable and reliable component for industrial automation applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50KL355
• Country of Origin: United States

Technical Specifications

• Type: Accessory
• Brand: Eaton
• Width: 0.75 in
• Height: 0.65 Inch
• Length: 2.22 Inch
• Weight: 0.15 lb
• Actuator: Standard
• Material: Metal
• Standard: Contact Manufacturer
• Product UPC: 78211329788
• 12-Digit UPC: 782113297880
• Product Series: E50
• Operating Temperature: 10 To 200 degrees F
• Lever Length/Radius: 1.5 Inch
• Lever Material: Stainless Steel
• Manufacturer Name: Eaton
• PDW ID: ECL129769
• Roller Diameter: 0.75 Inch
• Roller Material: Metal
• Roller Mounting Location: Front
• Roller Type: Standard
• Roller Width: 0.32 Inch
• Used On: E50/E506P/10316 Series Rotary Head Limit Switch
• Product Name: Eaton E50 NEMA heavy duty plug-in limit switch operator
• Catalog Number: E50KL355
• Product Length/Depth: 2.22 in
• Product Height: 0.65 in
• Product Width: 0.75 in
• Warranty: 1 year
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified CE
• Product Type: Heavy duty plug-in limit switch accessory
• Used with: Used with side rotary
• Cable type: SOOW-A
• Series: E50
• Switch type: Lever for side rotary switches
• Operating temperature - max: 200 °F
• Operating temperature - min: 10 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
• Application: Industrial Facilities and Factories Applications
• Roller Position: Front
• UNSPSC: 39121509
• Part Number: E50KL355
• Manufacturer: Eaton Cutler-Hammer
• Category: Switches
• Dimensions (HxWxD): 2.22 x 0.65 x 0.75
• MPN: E50KL355
• Condition: New Open box
• Arm Adjustability: Fixed
• Arm Depth: 2.22 in
• Arm Length - Minimum: 1.5 in
• Arm Material: Metal
• Arm Width: 0.75 in
• Arm/Operator Length - Maximum: 1.5 in
• Compatible with Brand: Eaton
• Compatible with Grainger Part Number: 49A924; 49A992
• Compatible with Manufacturer Model Number: E50AR1; E50AR16P
• Compatible with Series: E50
• Display Qty: 1
• IP Rating: IP67
• Manufacturer Warranty Length: 1 yr
• NEMA Enclosure Rating: 1; 3; 3S; 4; 4X; 6; 6P; 13
• Roller Adjustability: Fixed
• Standards: CE; CSA; RoHS; UL Listed
