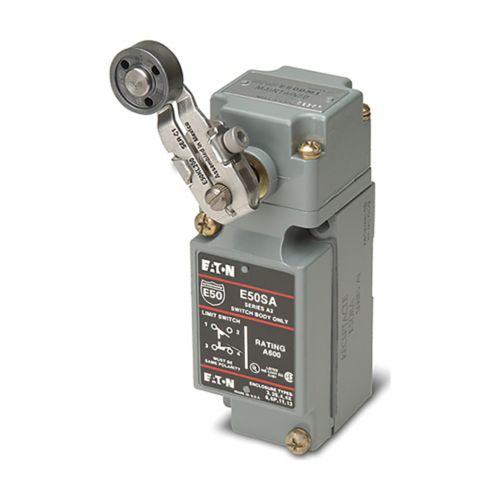

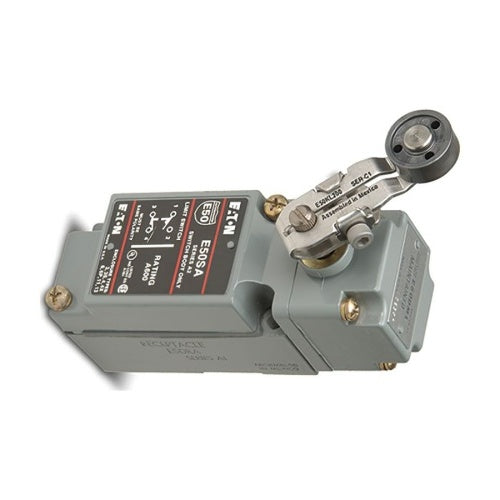

Eaton E50KL29 Limit Switch Operator

Product Description

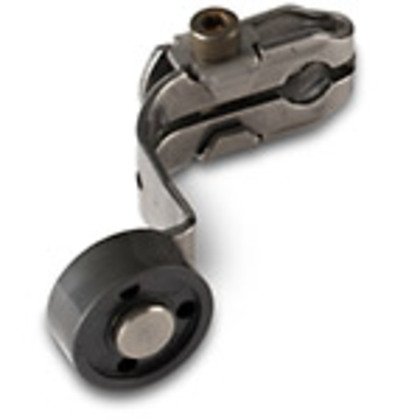

The Eaton E50KL29 is a limit switch operator designed for use with side rotary switches. It features an offset outboard roller and is suitable for heavy-duty industrial applications. The modular, plug-in components offer design flexibility and can withstand harsh environments. It is a cost-effective and practical solution for demanding industrial settings.

• Features an offset outboard roller
• Modular, plug-in components provide application flexibility
• Withstands harsh industrial environments

Product Highlights

The Eaton E50KL29 limit switch operator is a reliable choice for heavy-duty industrial applications, offering design flexibility and durability.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50KL29

Technical Specifications

• Product Name: Eaton E50 NEMA heavy duty plug-in limit switch operator
• Catalog Number: E50KL29
• UPC: 782113344683
• Product Length/Depth: 0.75 in
• Product Height: 2.3 in
• Product Width: 1.5 in
• Product Weight: 0.06 lb
• Warranty: 1 year
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified CE
• Catalog Notes: Lever length is from the operating shaft axis to the roller axis
• Product Type: Heavy duty plug-in limit switch accessory
• Special features: Offset outboard roller
• Type: Operating Lever
• Cable type: SOOW-A
• Enclosure material: Lever: stainless steel Roller: steel ball bearing
• Actuator: Roller lever
• Series: E50
• Switch type: Lever for side rotary switches
• Operating temperature - max: 201 °F
• Operating temperature - min: -40 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67, IP69K
• Material: Roller: Steel ball bearing Lever: Stainless steel
• Brand: Eaton - Cutler Hammer
• Approval: CE, UL, CSA
• Nema Rating: 1, 3, 3S, 4, 4X, 6, 6P, 13
• Length (in): 0.75
• Width (in): 1.5
• Height (in): 2.3
• For Use With: Side Rotary Switches
• Standards: NEMA, RoHS
• Temperature Rating: -40 to 201 °F
• Duty Rating: Heavy Duty
• (Instrument-Sensor) NEMA Protection: NEMA 3S
• (Instrument-Sensor) IP Protection: IP69K
• Manufacturer: Eaton
• Component: Operator
• (Instrument-Sensor) Actuator: Side Rotary
• (Instrument-Sensor) Temperature Range: -40 °F - 201 °F
• (Instrument-Sensor) Enclosure Composition: Roller: Steel Ball Bearing
• MPN: E50KL29
• Roller Diameter: 0.69 in
• Roller Position: Front
• Roller Width: 1/4 in
• Arm Length: 1-1/2 in
• Roller Material: Steel
• Arm Material: Stainless Steel
