Eaton E50KL204 NEMA Heavy Duty Plug-In Limit Switch Operator

Product Description

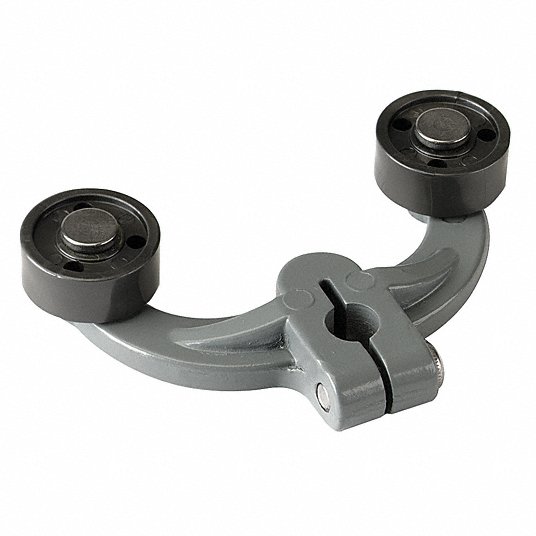

The Eaton E50KL204 NEMA heavy-duty plug-in limit switch operator features a rotary fork lever. Constructed with a die-cast zinc lever and Nylatron rollers, it is suitable for use with side rotary switches. This limit switch operator is UL, CSA, and CE certified.

• Fork lever
• Used with side rotary switches
• Operating temperature range of 10 to 200°F

Product Highlights

The EATON E50KL204 is a heavy-duty limit switch operator with a fork lever, designed for stability and precision in tracking moving objects.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50KL204
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton E50 NEMA heavy duty plug-in limit switch operator
• Catalog Number: E50KL204
• UPC: 782113290935
• Product Length/Depth: 2.87 in
• Product Height: 0.62 in
• Product Width: 1.92 in
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified CE
• Product Type: Heavy duty plug-in limit switch accessory
• Used with: Used with side rotary
• Special features: Fork lever
• Type: Operating Lever
• Actuator: Roller lever
• Series: E50
• Switch type: Lever for side rotary switches
• Operating temperature - max: 200 °F
• Operating temperature - min: 10 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
• Material: Nylatron Roller: Nylatron Lever: Die cast Zinc
• Brand: Eaton
• MPN: E50KL204
• Actuator Type: Forked Roller Lever
• Arm Adjustability: Fixed
• Arm Depth: 2.87 in
• Arm Length - Minimum: 0.38 in
• Arm Material: Nylon
• Arm Width: 1.92 in
• Arm/Operator Length - Maximum: 0.38 in
• Compatible with Brand: Eaton
• Compatible with Grainger Part Number: 49A924;
• Compatible with Manufacturer Model Number: E50AR1; E50AR16P
• Compatible with Series: E50
• Display Qty: 1
• IP Rating: IP67
• NEMA Enclosure Rating: 1; 3; 3S; 4; 4X; 6; 6P; 13
• Roller Adjustability: Fixed
• Roller Diameter: 0.75 in
• Roller Material: Nylon
• Roller Position: Front
• Roller Width: 0.32 in
• Standards: CE; CSA; RoHS; UL Listed
