Eaton E50KL200 E50 NEMA Limit Switch Operator

EATON
Brand: EATON
SKU: E50KL200
Availability: In Stock

Ships same day if ordered by 12 pm
$37.53
$37.53
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

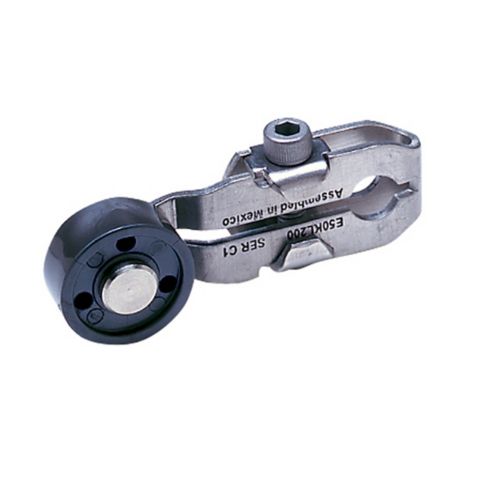

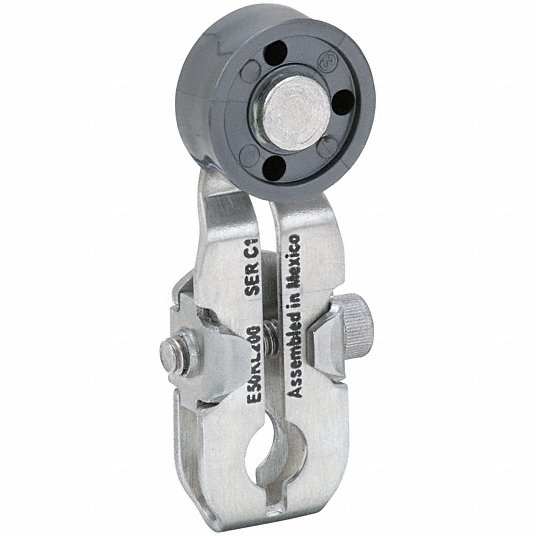

The Eaton E50KL200 is a NEMA heavy-duty plug-in limit switch operator. Designed for use with side rotary switches, it features a 1.5-inch length Type 303 stainless steel lever and a Nylatron roller. This limit switch operator is UL, CSA, and CE certified.

  • 2.22 in L x 0.75 in W x 0.65 in H product dimension
  • Roller actuator
  • NEMA 1/3/3S/4/4X/6/6P/13/IP67 enclosure rating

Product Highlights

Heavy duty plug-in limit switch operator with stainless steel lever and Nylatron roller.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: E50KL200
  • Country of Origin: Mexico
Technical Specifications
Product Name
Eaton E50 NEMA heavy duty plug-in limit switch operator
Catalog Number
E50KL200
UPC
782113297866
Product Length/Depth
2.22 in
Product Height
0.65 in
Product Width
0.75 in
Product Weight
0.15 lb
Warranty
1 year
Compliances
RoHS Compliant CE Marked
Certifications
UL Listed CSA Certified CE
Product Type
Heavy duty plug-in limit switch accessory
Used with
Used with side rotary
Type
Operating Lever
Cable type
SOOW-A
Actuator
Roller
Series
E50
Switch type
Lever for side rotary switches
Operating temperature - max
200 °F
Operating temperature - min
10 °F
Environmental rating
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Material
Nylatron Roller: Nylatron Lever: Stainless steel
Brand
Eaton/Cutler-Hammer
Approval
CE, UL, CSA
Nema Rating
1, 3, 3S, 4, 4X, 6, 6P, 13
Length (in)
2.22
Width (in)
0.75
Height (in)
0.65
For Use With
E50AR16P, E50AR1 and Side Rotary Switches
Standards
NEMA, RoHS
Temperature Rating
10 to 200 °F
Duty Rating
Heavy Duty
Mpn
E50KL200
Upc
782113297866
Gtin
00782113297866
Arm Length
1-1/2 in
Arm Material
Stainless Steel
Arm Width
3/4 in
Catalog ID
C-HE50KL200
Roller Diameter
3/4 in
Roller Material
Nylatron
Roller Position
Front
Roller Width
0.32 in
Lever
Arm Adjustability Fixed
Arm Depth
2.22 in
Arm Length - Minimum
1.5 in
Compatible with Brand
Eaton
Compatible with Grainger Part Number
49A924;
Compatible with Manufacturer Model Number
E50AR1;
Compatible with Series
E50
IP Rating
IP67
Manufacturer Warranty Length
1 yr
NEMA Enclosure Rating
1; 3; 3S; 4; 4X; 6; 6P; 13
Operating Temperature - Maximum
200 °F
Operating Temperature - Minimum
10 °F
Roller Adjustability
Fixed
