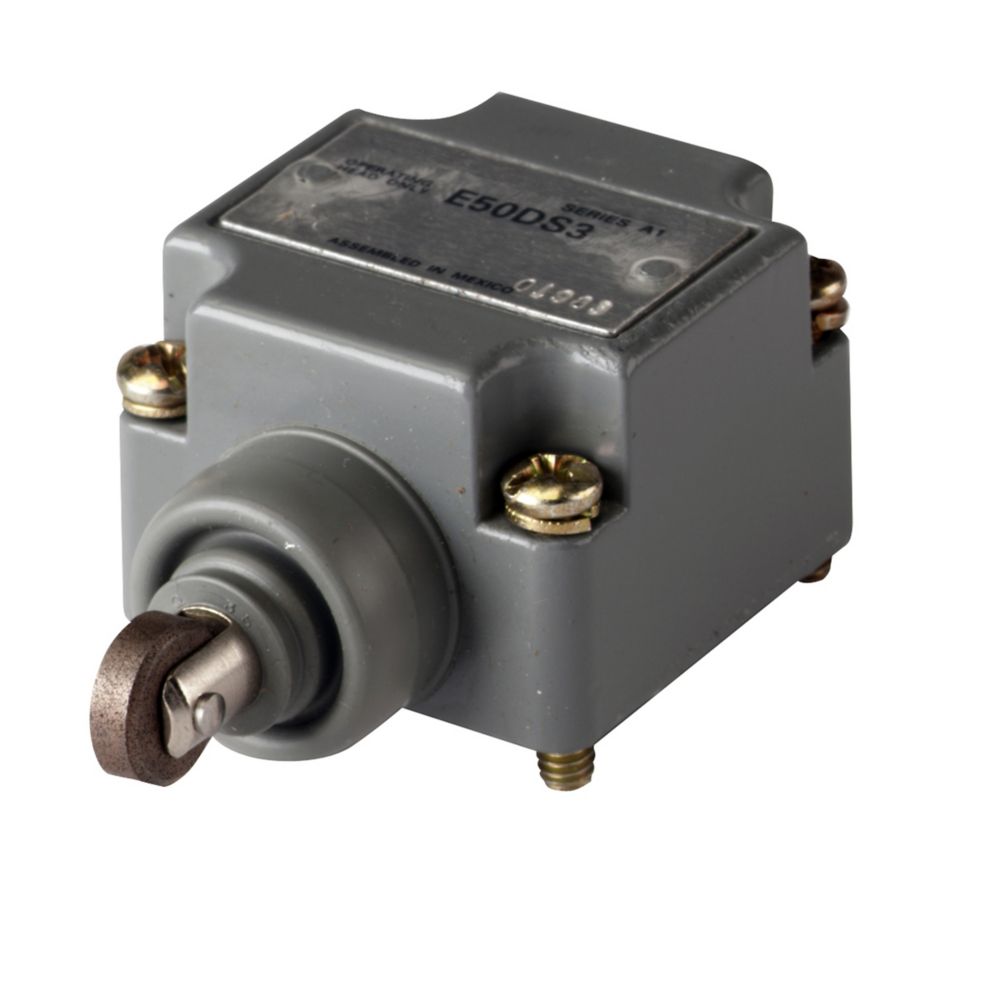

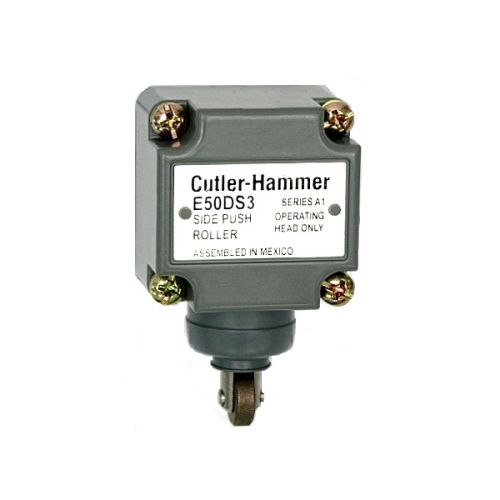

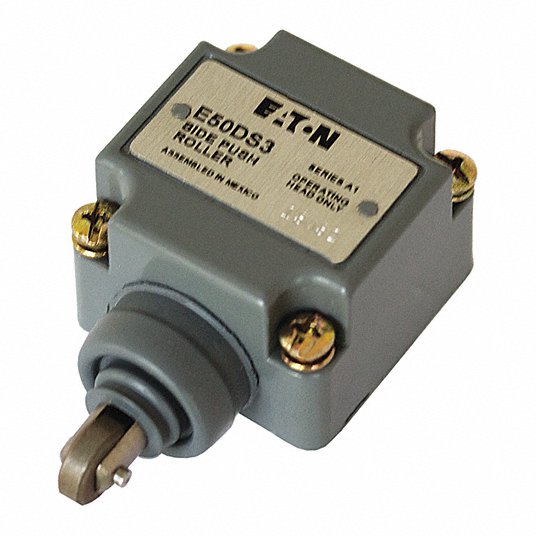

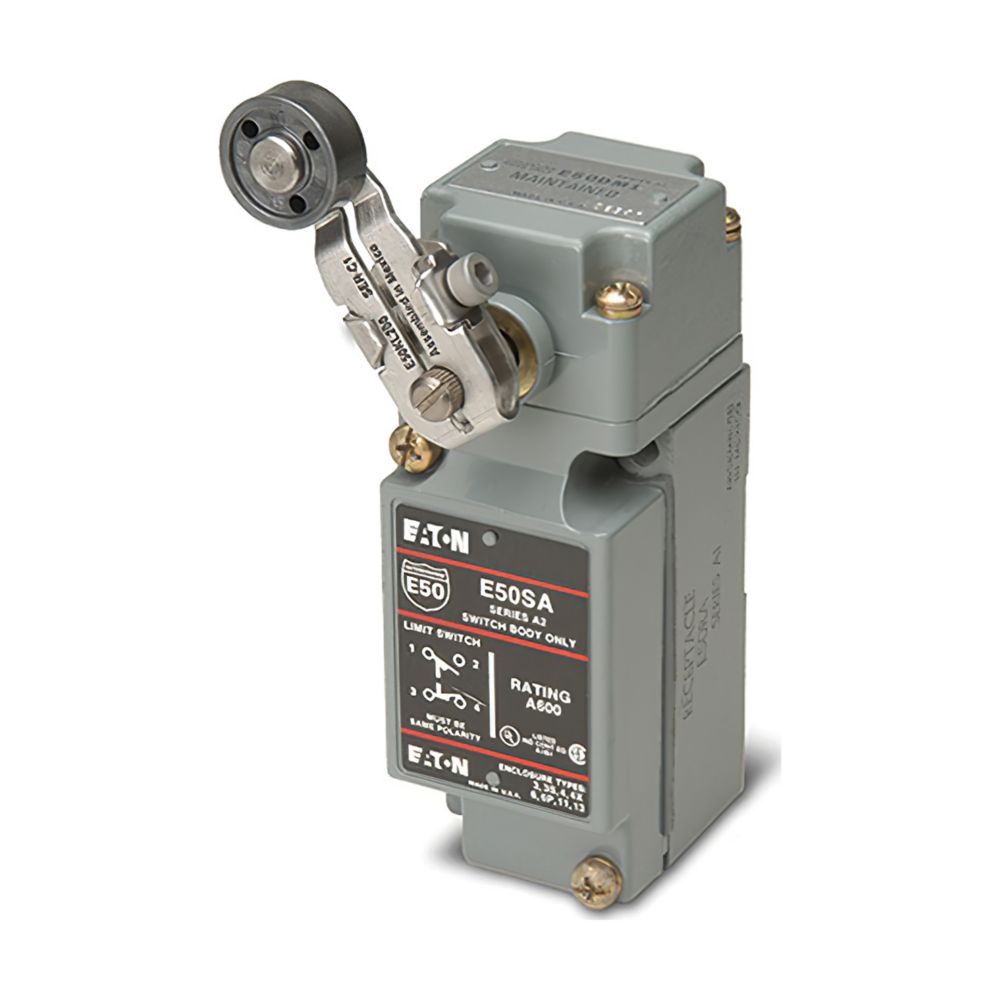

Eaton E50DS3 limit switch operating head

Product Description

The EATON E50DS3 is a limit switch operating head designed for use with E50/E50 6P/10316 Series Limit Switches. It is manufactured to withstand physical and environmental stress in harsh industrial environments. Heads and switch bodies can be replaced without rewiring. The unit features keyed, four-direction head positioning and field convertible rotary heads.

• Modular, plug-in components provide application flexibility and reduced downtime
• Manufactured to take the physical and environmental abuse of harsh industrial environments
• Heads and switch bodies can be replaced without rewiring

Product Highlights

The EATON E50DS3 limit switch operating head offers application flexibility and is built for harsh industrial environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50DS3
• Country of Origin: USA

Technical Specifications

• Approval: UL, CSA, CE
• Manufacturer Name: Eaton
• Operating Force: 4 Lb
• Operating Temperature: 14 to 200 Deg F (With/Without Cable)
• Operating Travel: 0.065 Inch
• Operation Type: Spring Return
• PDW ID: ECL129673
• Product UPC: 782113290645
• Reset Travel: 0.03 Inch
• Total Travel: 0.25 Inch
• Type: Side Push Roller
• Used On: E50/E50 6P/10316 Series Limit Switch
• Product Length/Depth: 1.05 in
• Product Height: 2.94 in
• Product Width: 1.54 in
• Compliances: RoHS Compliant
• Certifications: UL Recognized
• Product Type: Heavy duty plug-in limit switch
• Cable type: SOOW-A
• Enclosure material: Die cast zinc
• Actuator: Side push roller
• Series: E50
• Switch type: Adjustable side push roller
• Operating temperature - max: 201 0F
• Operating temperature - min: 14 0F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
• CE Marked: CE Marked
• CSA Certified: CSA Certified
• UL Listed: UL Listed
• Voltage: 600
• Voltage Type: AC
• Manufacturer: Eaton Cutler-Hammer
• Family: E50 Series
• Action: Momentary
• Actuator Location: Side
• Actuator Style: Push Roller
• Plunger: Plunger
• Arm Length - Maximum: 0.05 in
• Arm/Operator Length: 0.05 in
• Compatible with Brand: Eaton
• Compatible with Grainger Part Number: 49A973
• Compatible with Manufacturer Model Number: E50SA
• Compatible with Series: E50
• Differential Travel: 0.25 in
• Directional Movement: Linear
• Display Qty: 1
• Display Sell UOM: EA
• IP Rating: IP67
• Includes Actuator: Actuator Included
• NEMA Enclosure Rating: 1; 3; 3S; 4; 4X; 6; 6P; 13
• Operating Torque: 4 in-lb
• Overall Depth: 1.05 in
• Overall Height: 2.94 in
• Overall Width: 1.54 in
• Overtravel: 0.07 in
• Plunger Adjustability: Fixed
• Pretravel: 0.03 in
• Roller Adjustability: Fixed
• Roller Diameter: 0.44 in
• Roller Material: Nylon
• Roller Position: Side
• Roller Width: 0.16 in
• Standards: CSA; RoHS; UL Listed
• UNSPSC: 39122221
• Material: Die Cast Zinc
• Application: Water and Wastewater Systems, Automation and Logic Control Equipment Applications
• Temperature Rating: 14 to 201
• Travel: 1/4
• Actuator Type: Push Roller
• Actuator/Head Type: Operating Head
