Eaton E50DS2 Side Pushbutton Limit Switch Actuator

Product Description

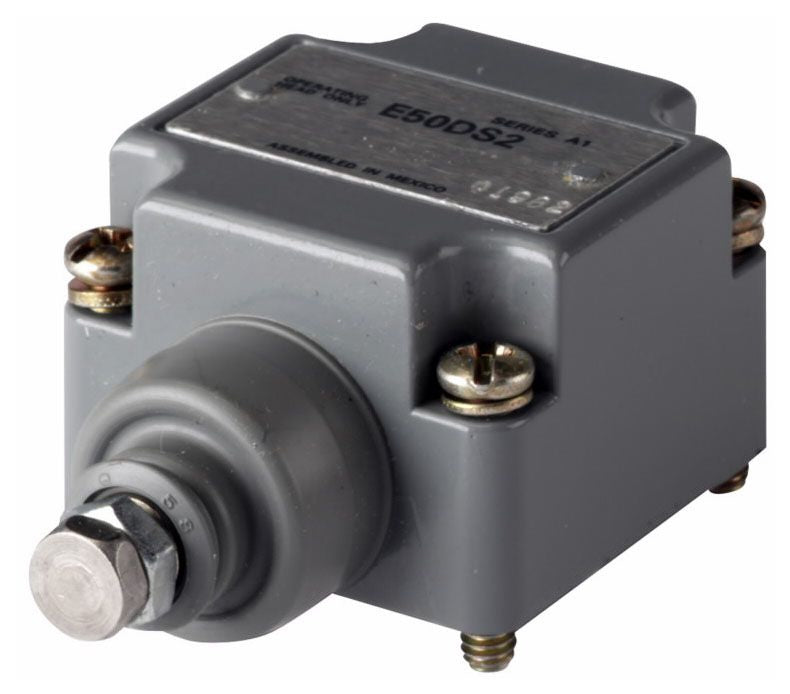

The EATON E50DS2 is a side pushbutton actuator designed for use with E50 series limit switches. This operator head mounts to a compatible limit switch body and provides mechanical pushbutton actuation from the side of the unit. It converts physical contact or mechanical force into an electrical signal, making it a key component in machine control, conveyor systems, and industrial automation applications. Licensed electricians and industrial maintenance technicians are the primary installers. The E50DS2 measures 1.050 inches by 1.540 inches by 2.790 inches and weighs 0.110 pounds.

This side pushbutton actuator is suited for industrial control panel wiring, machine guarding, and position-sensing applications where a side-entry actuation point is required. It is commonly installed on automated machinery, door interlocks, conveyor lines, and equipment requiring discrete position or limit detection. The side-entry orientation allows for installation in space-constrained enclosures or mounting arrangements where a top-entry operator is not practical.

Key Features

• Side pushbutton actuation for space-constrained or side-entry mounting configurations
• Designed for use with the E50 series limit switch body platform
• Compact form factor: 1.050 inches x 1.540 inches x 2.790 inches
• Lightweight construction at 0.110 pounds
• Suited for machine control, conveyor, and position-sensing installations

Compatibility

Designed as an OEM-style operator head for use with EATON E50 series limit switch bodies in industrial control and automation applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and the equipment manufacturer guidelines. Disconnect and lock out all power to the control circuit before removing or installing any limit switch component. Verify that the actuator model is compatible with the intended limit switch body before assembly. Do not force-mount the operator head, as improper fitment can result in misalignment or premature wear.

Technical Specifications

• Actuator Type: Side Pushbutton
• Length: 1.050 inches
• Width: 1.540 inches
• Height: 2.790 inches
• Weight: 0.110 pounds
• UPC: 78211329063

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50DS2
