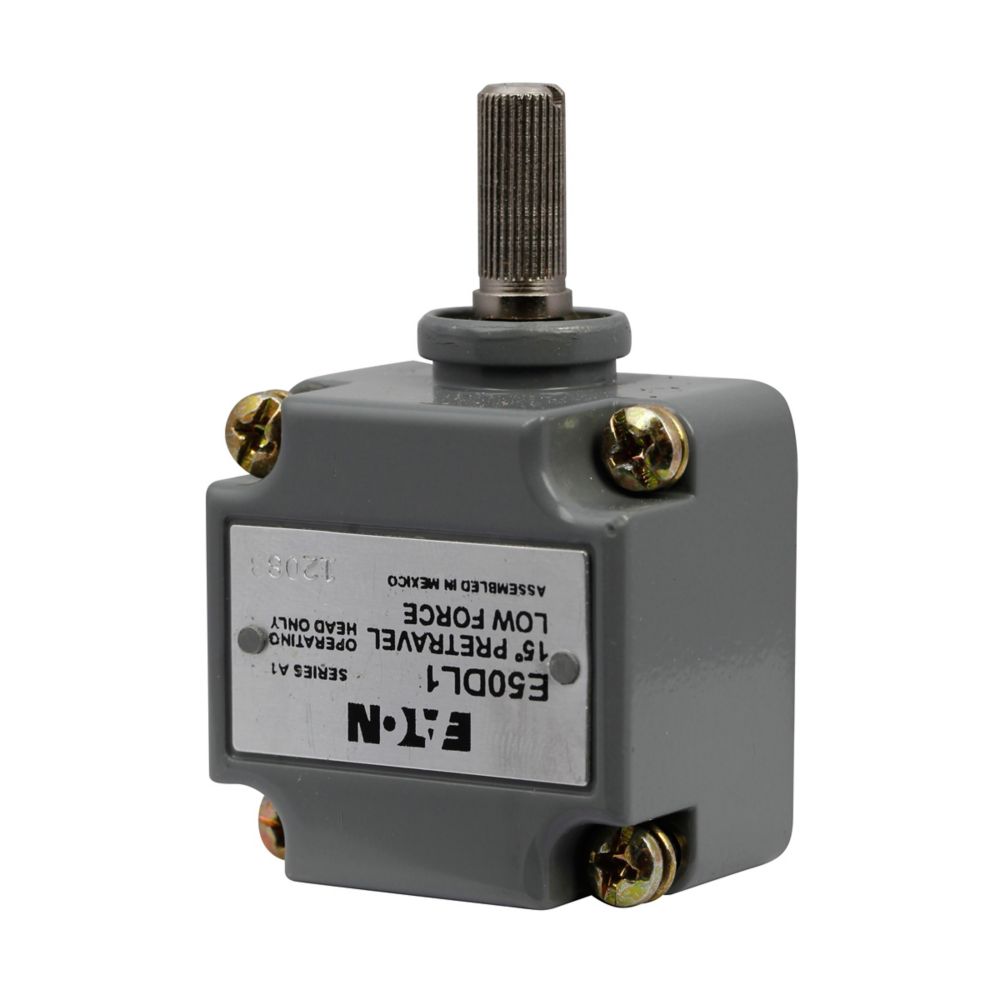

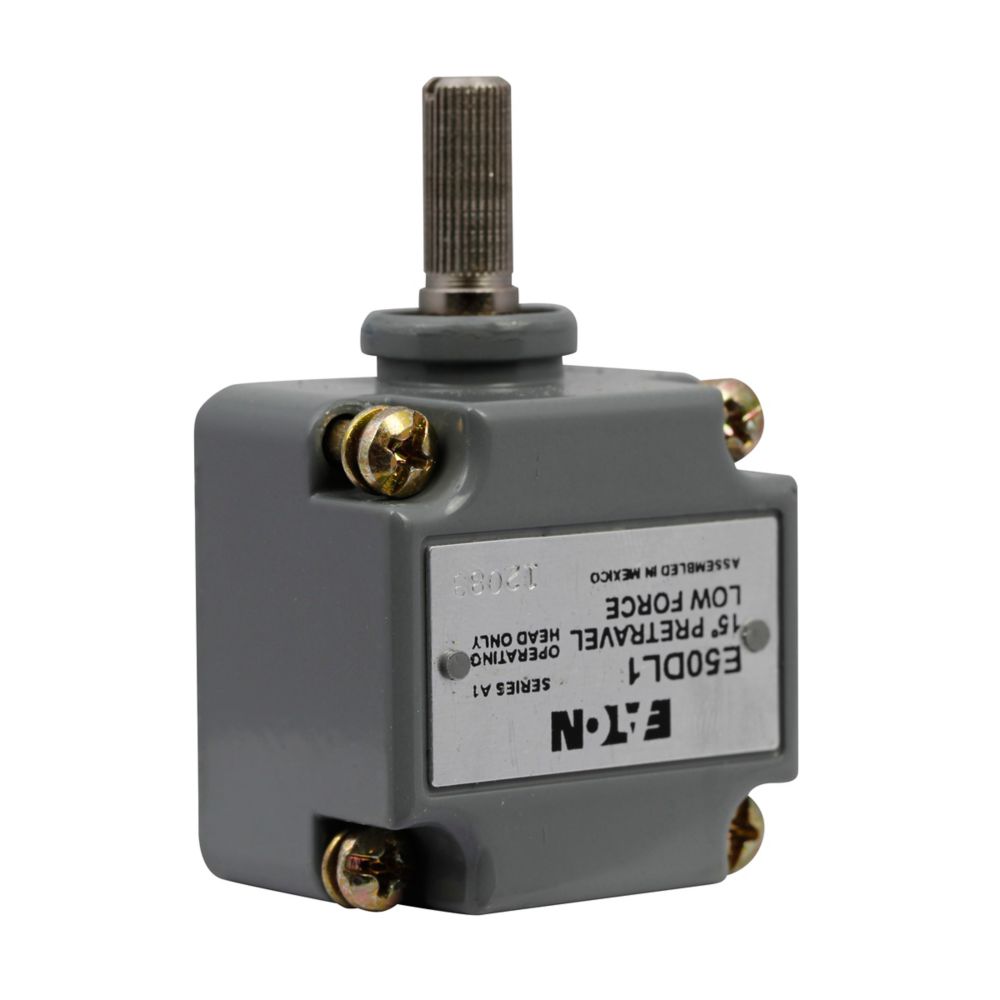

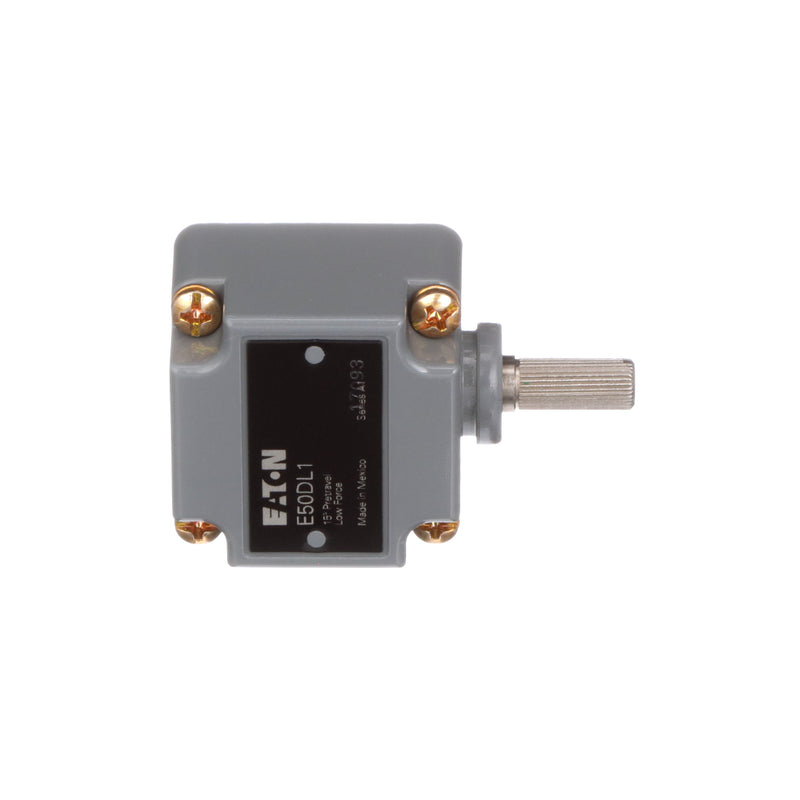

Eaton E50DL1 Limit Switch Head Side Rotary Lever/Spring Return

EATON
Brand: EATON
SKU: E50DL1
Availability: In Stock

Ships same day if ordered by 12 pm
$206.74
$206.74
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Eaton E50DL1 is a modular plug-in limit switch head. It is an industry standard known for its design versatility and high reliability, ensuring low maintenance and installation costs. The zinc die-cast enclosure offers chemical resistance to coolants and hydraulic fluids. It is suitable for heavy-duty industrial applications.

  • Side rotary low force spring return actuator
  • Die cast zinc construction
  • NEMA 1/3/3S/4/4X/6/6P/13 NEMA Rating

Product Highlights

This heavy-duty plug-in limit switch head features a side rotary lever with spring return and is suitable for motor control applications.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: E50DL1
  • Country of Origin: Mexico
Technical Specifications
Dimensions
1.05 in L x 1.54 in W x 2.46 in H
Material
Die Cast Zinc
Operating Force
1.5 in-lb
Series
E50
Temperature Rating
-40 to 175 deg F
Travel
90 deg
Actuator Location
Side
Actuator Type
Rotary Lever/Spring Return
Suitable For Use With
E50 Series Heavy Duty Plug-In Limit Switch
NEMA Rating
NEMA 1/3/3S/4/4X/6/6P/13
Product Type
Heavy duty plug-in limit switch
Type
Operating Head
Cable type
SOOW-A
Enclosure material
Die cast zinc
Actuator
Side rotary low force spring return
Switch type
Side rotary Low Force
Operating temperature - max
175 °F
Operating temperature - min
-40 °F
Environmental rating
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Part Number
E50DL1
Manufacturer
Eaton Cutler-Hammer
Category
Motor Controls
Dimensions (HxWxD)
1.05 x 2.46 x 1.54
Weight
0.11 lb
UNSPSC
39121509
Approval
UL, CSA, CE
Application
Water and Wastewater Systems, Automation and Logic Control Equipment Applications
Operating Temperature
10 to 250 Deg F (Without Cable), 10 to 221 Deg F (With Cable)
Reset Travel
6 Degree
Operation Type

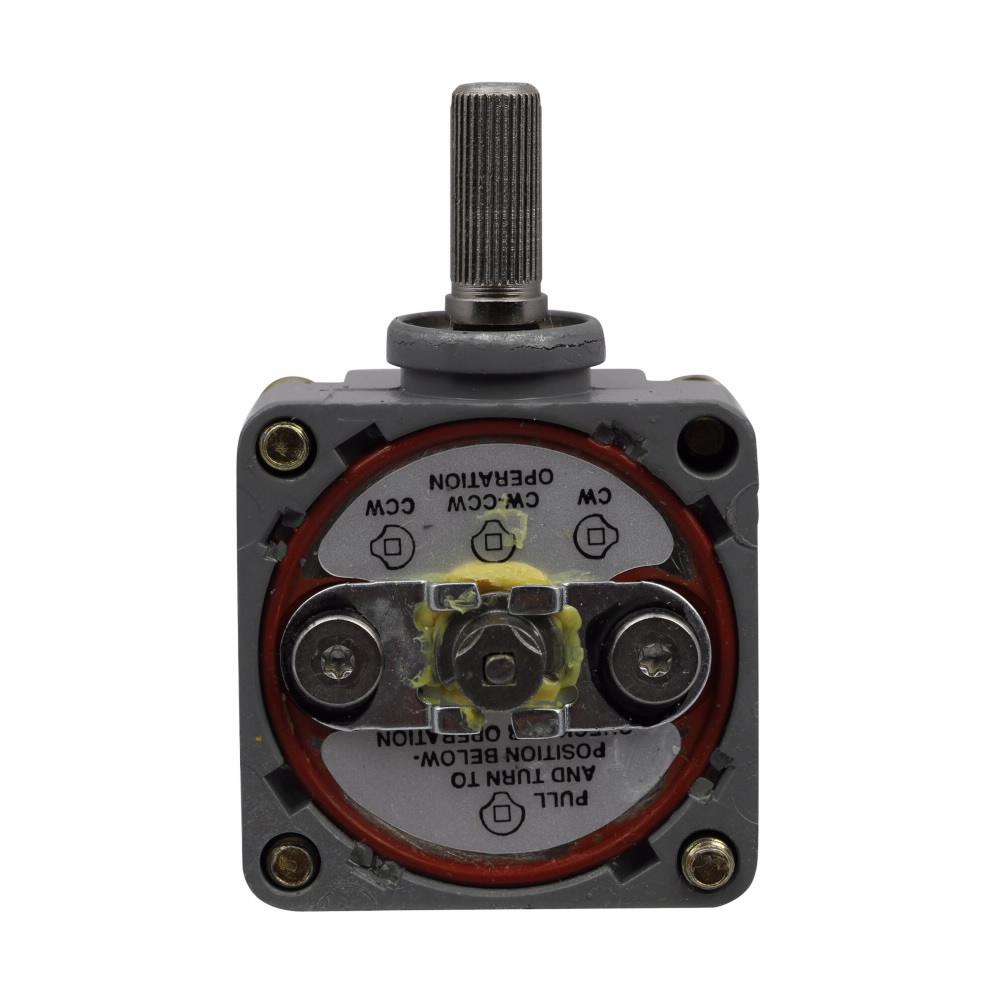

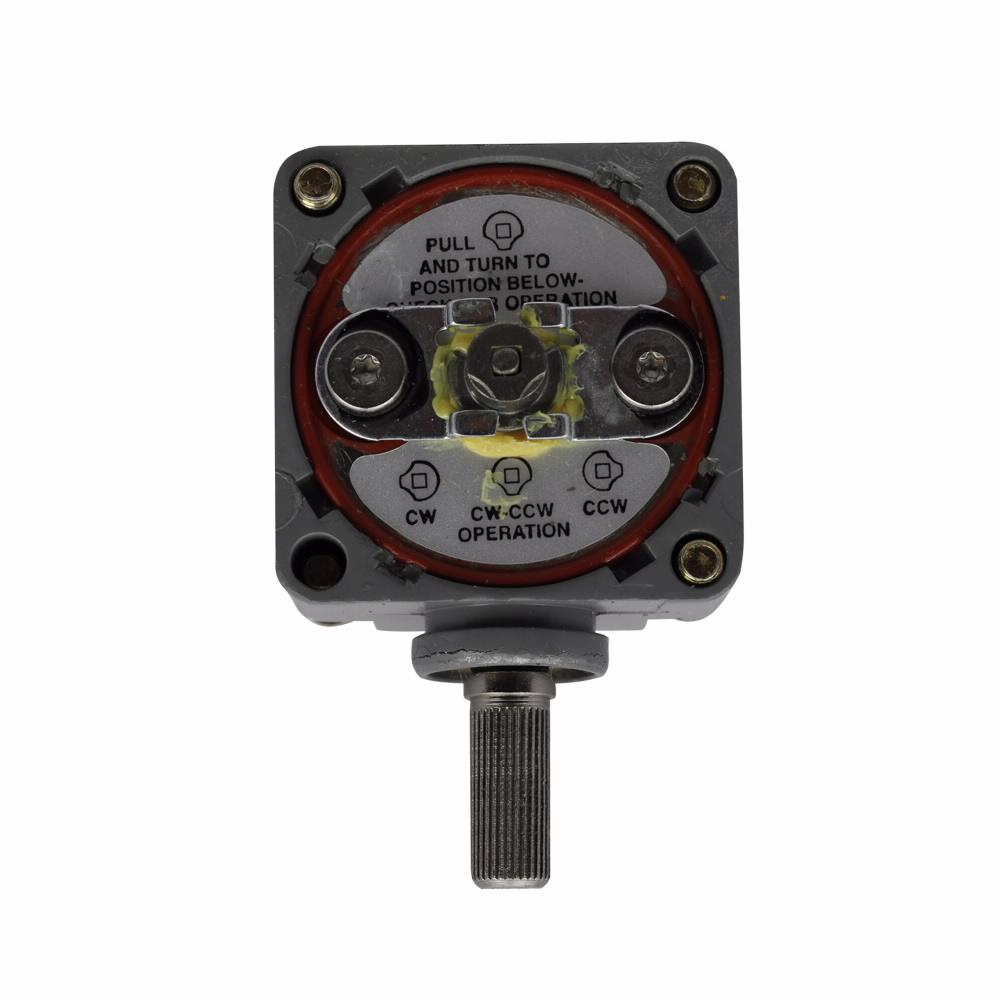

Clockwise/Counterclockwise Convertible, Low Force, Spring Return
Operating Travel
15 Degree
Actuator/Head Type
Operating Head
Brand
Eaton
MPN
E50DL1
GTIN
0782113290577
UPC
0782113290577
eBay Product ID (ePID)
1711951714
Current Type
AC
Operation Method
On/Off
Fuse Type
Switch
Switch Style
Rotary
Termination Type
Screw
Number in Pack
1
Features
Heavy Duty
Mounting Style
Cable
Maximum Amperage
50 A
Number of Positions
10
Number of Phases
1
Model
E50DL1
Item Height
4 in
Width
3.250
Length
1.750
Action
Momentary
Actuator Style
Rotary
Lever Arm Length - Maximum
0.63 in
Arm/Operator Length
0.63 in
Compatible with Brand
Eaton
Compatible with Grainger Part Number
49A973
Compatible with Manufacturer Model Number
E50SA
Compatible with Series
E50
Differential Travel
90°
Directional Movement
CCW/CW
Display Qty
1
Display Sell UOM
EA
Includes Actuator
No Actuator Included
Manufacturer Warranty Length
1 yr
NEMA Enclosure Rating
1; 3; 3S; 4; 4X; 6; 6P; 13
Operating Torque
1.5 in-lb
Overall Depth
1.05 in
Overall Height
2.46 in
Overall Width
1.54 in
Overtravel
15°
Pretravel
5°
Standards
CSA; RoHS; UL Listed
Total Travel
90°
For Use With
Eaton E50 Series Heavy Duty Limit Switches
Accessory Type
Limit Switch Operating Head
Product Range
E50 Series
SVHC
No SVHC (17-Dec-2015)
Compatible Frames
JDB,JD,HJD,JDC
Certification
CSA, RoHS, UL Listed
