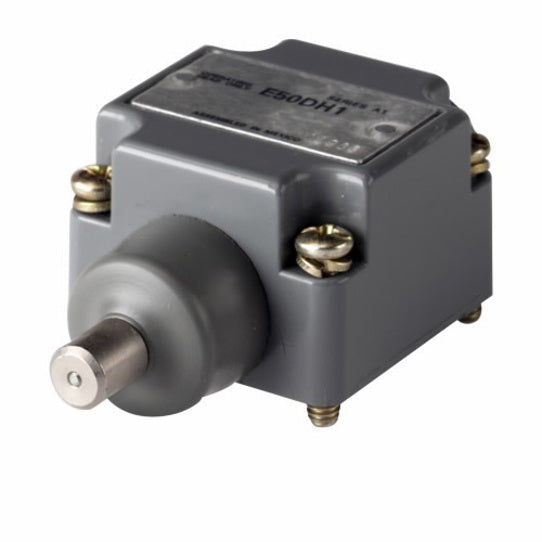

Eaton e50dh1 Limit Switch Head Side Pushbutton Heavy Duty

Product Description

The EATON e50dh1 is a side-pushbutton limit switch head designed for use with the E50 Series heavy-duty plug-in limit switch platform. It provides reliable position sensing and actuation control in demanding industrial environments. The e50dh1 features a die cast zinc enclosure with standard Viton gaskets, seals, and boots that deliver strong resistance to coolants, cleansing agents, and hydraulic fluids. It carries NEMA ratings 1, 3, 3S, 4, 4X, 6, 6P, and 13, making it suitable for both indoor and wash-down or submersion-rated installations. Licensed electricians and industrial maintenance technicians are the primary installers of this component.

The e50dh1 is used in machine tool, automotive, water and wastewater treatment, and other heavy-duty industrial applications. Its mounting dimensions accommodate both U.S. and DIN standards, allowing straightforward retrofit installations on existing E50 Series switch bodies. Typical deployment includes position detection on cutting and forming machine tools, as well as process equipment in stationary factory environments. This modular design simplifies field replacement without disturbing the full switch assembly.

Key Features

• Side pushbutton actuator style for space-conscious panel and machine mounting
• Die cast zinc enclosure for durability in heavy-duty industrial settings
• Viton gaskets, seals, and boots provide chemical resistance to coolants and hydraulic fluids
• NEMA 1, 3, 3S, 4, 4X, 6, 6P, and 13 rated for versatile environmental protection
• Compatible with U.S. and DIN mounting dimensions for easy retrofit
• CSA Certified, UL Recognized, and RoHS Compliant

Compatibility

Designed for use with the E50 Series heavy-duty plug-in limit switch platform. Modular plug-in construction allows the switch head to be swapped independently of the switch body, supporting a range of machine tool, automotive, and industrial process applications.

Installation Notes

Installation of limit switch heads should be performed by a qualified electrician or industrial maintenance technician in accordance with applicable NEC requirements. De-energize all circuits and lock out the machine before removing or installing the switch head. Verify actuator alignment with the target cam or trip dog before securing the assembly. Do not exceed the rated operating temperature range during installation or service.

Technical Specifications

• Item Type: Heavy Duty Plug-In Limit Switch Head
• Actuator Style: Side Pushbutton
• Enclosure Material: Die Cast Zinc
• Gaskets and Seals: Viton
• NEMA Rating: 1, 3, 3S, 4, 4X, 6, 6P, 13
• Operating Temperature: 14 degrees F minimum
• Certifications: CSA Certified, UL Recognized, RoHS Compliant
• Country of Origin: Mexico

Standard Information

• Brand: EATON
• Manufacturer Part Number: e50dh1
