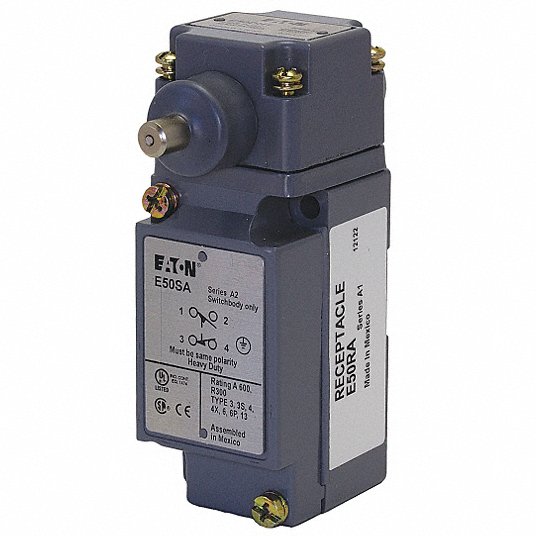

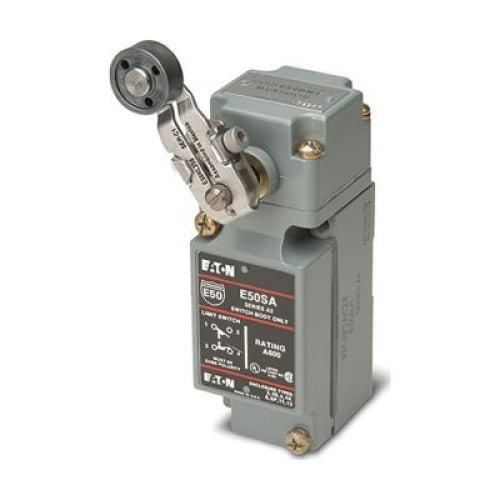

Eaton E50AH1 NEMA Heavy Duty Plug-In Limit Switch

Product Description

The EATON E50AH1 is a NEMA heavy-duty plug-in limit switch designed for industrial applications. It features a side pushbutton and maintained action. The switch is rated for 10A at 240Vac and 1A at 250Vdc. It is constructed with a die-cast zinc enclosure and screw terminal connections, suitable for harsh environments.

• Heavy-duty plug-in limit switch
• Side pushbutton with maintained action
• Die-cast zinc enclosure

Product Highlights

This limit switch offers reliable performance in demanding industrial settings, providing robust and versatile control.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50AH1
• Country of Origin: Mexico

Technical Specifications

• SKU: E50AH1
• Type: Limit Switch
• Contact Rating: 10A at 240Vac, 1A at 250Vdc
• Enclosure material: Die cast zinc
• Connection: Screw terminal
• Contact configuration: 1 NO-1 NC
• Series: E50
• Switch type: Maintained, Side pushbutton
• Operating temperature - max: 201 °F
• Operating temperature - min: 14 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
• Maximum AC current: 10 A
• Maximum DC current: 1 A
• Product Length/Depth: 4.22 in
• Product Height: 2.25 in
• Product Width: 1.54 in
• Product Weight: 1.1 lb
• Warranty: 1 year
• Compliances: CE Marked, RoHS Compliant
• Certifications: UL Listed, CSA Certified
• Product Type: Heavy duty plug-in limit switch
• Brand: EATON
• Voltage: 600VAC
• Poles: 1
• Mounting Type: Chassis Mount
• Approval: CE, UL, CSA
• Terminal Connection: Screw
• Nema Rating: 1, 3, 3S, 4, 4X, 6, 6P, 13
• Length (in): 4.22
• Width (in): 1.54
• Height (in): 2.25
• Standards: CE; CSA; UL Listed
• Temperature Rating: 14 to 201 °F
• Duty Rating: Heavy Duty
• Actuator Type: Side Rotary - No Lever
• Action: Maintained
• Amperage: 10
• Voltage Rating - DC: 125 V
• Manufacturer: Eaton Electrical
• Packaging: Box
• Termination Style: Screw Terminal
• Part Status: Active
• Ingress Protection: IP67 - Dust Tight, Waterproof
• Circuit: DPST-NO/NC
• Mechanical Life: 13,000,000 Cycles
• Switch Function: On-Mom, Off-Mom
• Electrical Life: 100,000 Cycles
• Current Rating (Amps): 10A (AC), 1A (DC)
• Operating Temperature: -10°C ~ 94°C
• Voltage Rating - AC: 120 V
• AC Contact Rating: 10 A @ 240 V
• Actuator Length: 1.44 in
• Actuator Location: Side
• Actuator Style: Plunger
• Arm Material: Metal
• Body Configuration: Plug-In
• Body Depth: 1.78 in
• Body Height: 3.13 in
• Body Material: Zinc
• Body Material Type: Metallic
• Body Width: 1.54 in
• Boot Sealed Actuator: No Boot
• Contact Form: 1NO/1NC
• DC Contact Rating: 1 A @ 250 V
• Differential Travel: 0.32 in
• Directional Movement: Linear
• Electrical Connection: Screw Terminals
• IP Rating: IP67
• Includes Actuator: Actuator Included
• Manufacturer Warranty Length: 1 yr
• Mounting Hole Diameter: 0.2 in
• Mounting Hole Horizontal Center to Center Distance: 59 mm
• Mounting Hole Vertical Center to Center Distance: 29 mm
• Number of Mounting Holes: 2
• Operating Force - Maximum: 5 lbf
• Operating Force - Minimum: 8 ozf
• Overall Depth: 1.54 in
• Overall Height: 4.22 in
• Overall Width: 3.03 in
• Plunger Adjustability: Fixed
• Pretravel: 0.13 in
• Reset Travel: 0.13 in
• Total Travel: 0.32 in
• UNSPSC: 39121509
• Component: Limit Switch
• (Instrument-Sensor) NEMA Protection: NEMA 3S
• (Instrument-Sensor) Connection Type: Screw Terminal
• (Instrument-Sensor) IP Protection: IP67
• (Instrument-Sensor) Contact Configuration: 1 NO + 1 NC
• (Instrument-Sensor) Contact Rating: 1 Amp At 250 VDC
• (Instrument-Sensor) Actuator: Side Pushbutton
• Sub Component: Heavy-Duty Plug-In Switch
• (Instrument-Sensor) Enclosure Composition: Die Cast Zinc
• (Instrument-Sensor) Temperature Range: 14 °F - 201 °F
