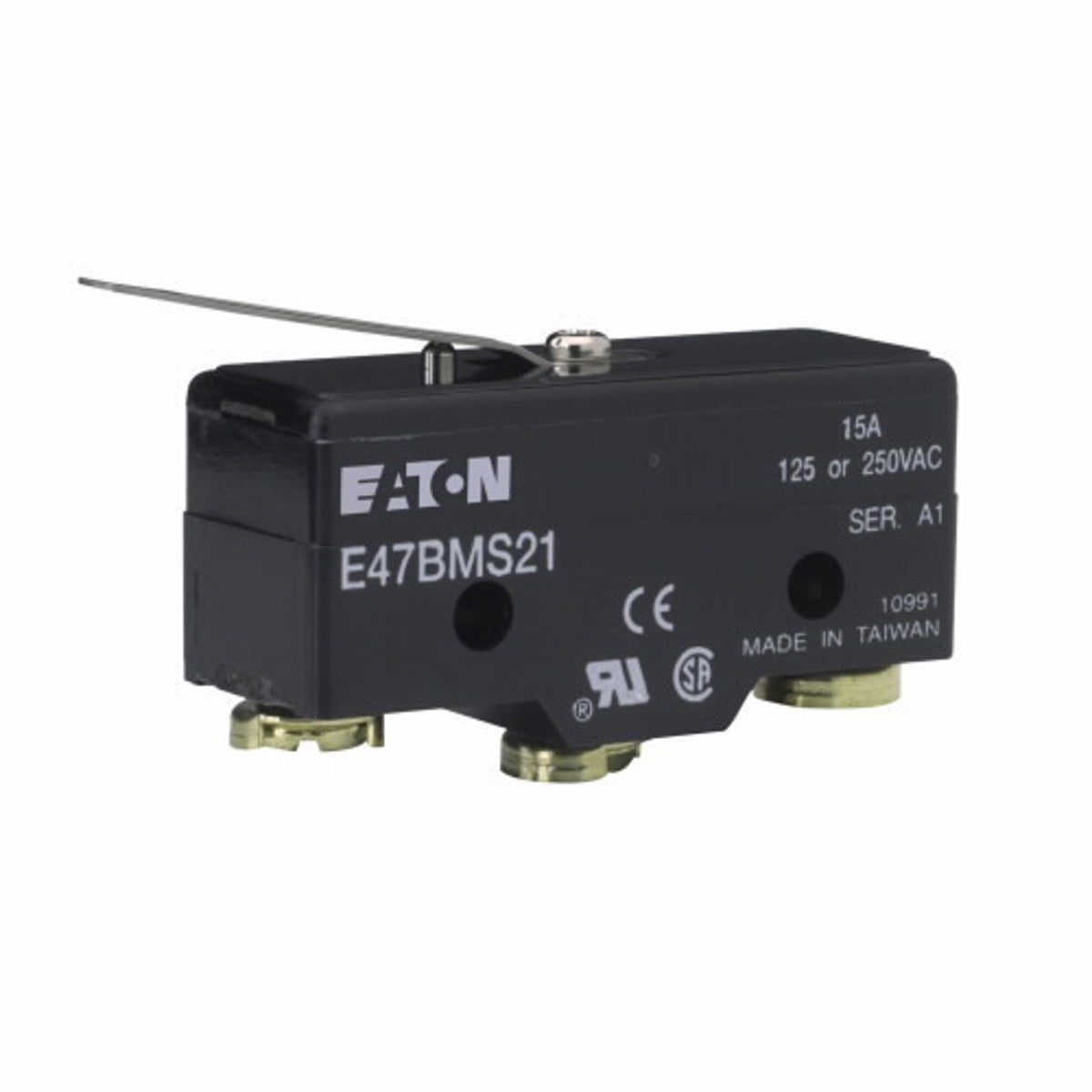

Eaton E47BMS21 Precision Limit Switch 15 A (Reversed Lever)

Product Description

Eaton E47BMS21 is a precision limit switch with a reversed lever actuator designed for compact industrial applications. It features SPDT contacts with screw terminal connections and a 15 A contact rating at 125 Vac and 14 Vdc. The unit uses a mineral-filled phenolic enclosure with an encapsulated die-cast aluminum housing for protection against moisture, contaminants, shock and vibration, and operates from -10 to 70 °C.

• SPDT contact configuration with screw terminal connections; contact rating 15 A at 125 Vac / 15 A at 14 Vdc
• Mineral-filled phenolic enclosure and encapsulated die-cast aluminum housing sealed against moisture, contaminants, shock and vibration
• Reversed lever actuator, threaded mounting, compact size for restricted spaces

Product Highlights

Compact precision limit switch, SPDT, 15 A contact rating, mineral-filled phenolic enclosure, operating temperature -10 to 70 °C

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E47BMS21
• Country of Origin: Taiwan, Province Of China
