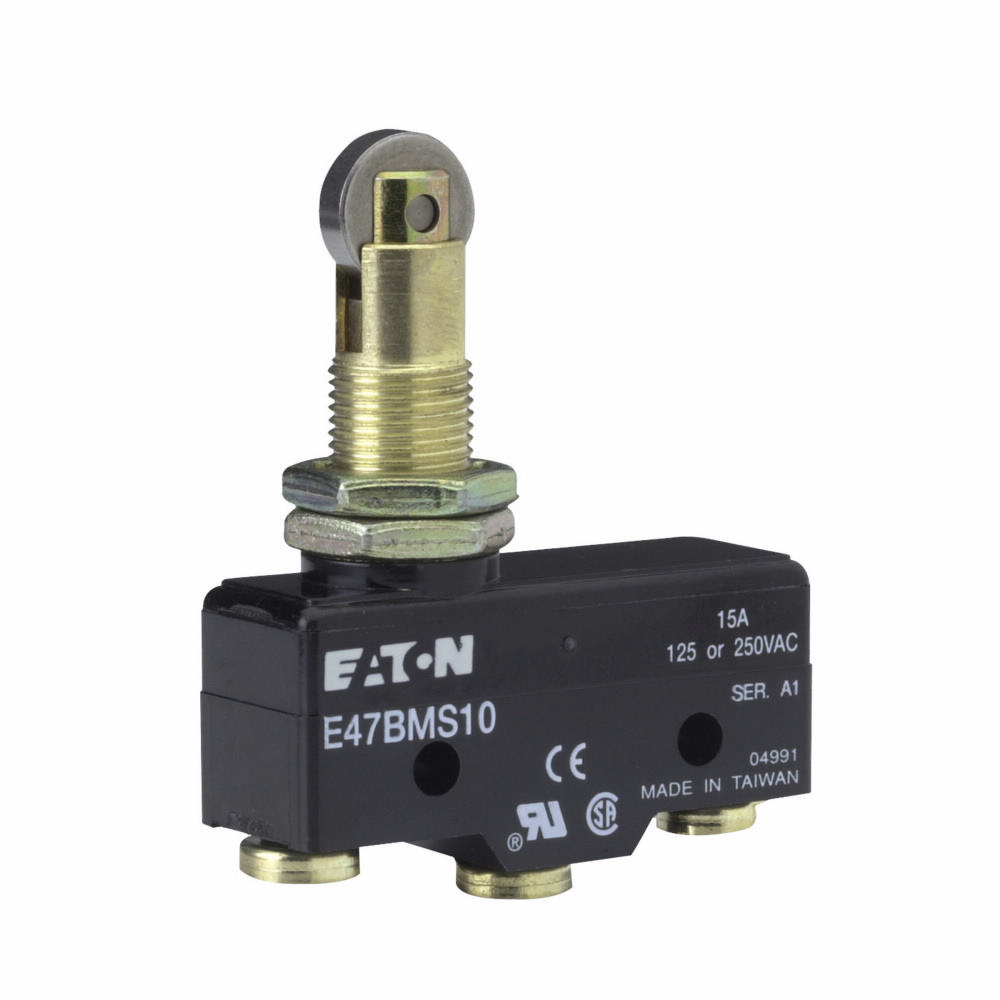

Eaton E47BMS10 Precision Limit Switch, 15A at 250 Vac, 6A at 30 Vdc

The Eaton E47BMS10 is a precision limit switch designed for reliable operation in various industrial settings. It features a roller plunger actuator that provides high accuracy in switching at a cost-effective price. This limit switch is suitable for safety and security systems in industrial facilities and factories.

• Current Capacity: 15A at 250 Vac, 6A at 30 Vdc
• Operating Temperature Range: -13 to 176 degrees F
• Screw terminal connection type

The E47BMS10 precision limit switch is compact and offers robust performance, making it ideal for applications where space is a constraint.

• Manufacturer: Eaton
• Catalog Number: E47BMS10

• Type: E47
• Actuator: Roller plunger
• Contact Configuration: 1-SPDT (Form C)
• Connection Type: Screw terminals
• Enclosure Material: Mineral filled phenolic
• Closed Contact Resistance: 15 MOhm
• Frequency Rating: 50/60 Hz
• Operating Cycles: 20 cpm
• Standards: CSA Certified, UL Listed
• Country of Origin: Taiwan, Province of China
• UPC: 782113770901
• GTIN: 00782113770901
