Eaton E47BMS04 E47 Limit Switch 15A

Product Description

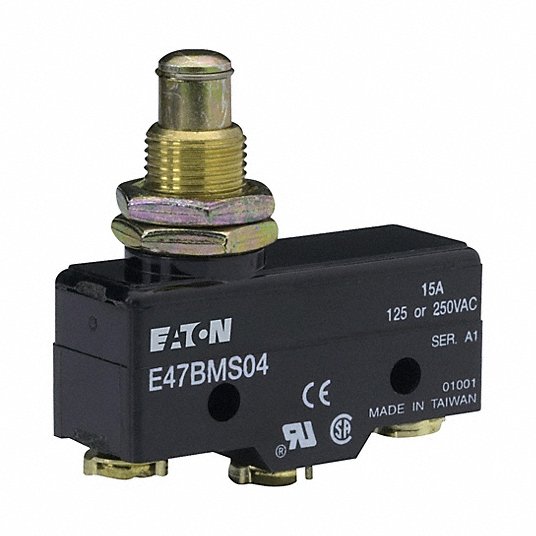

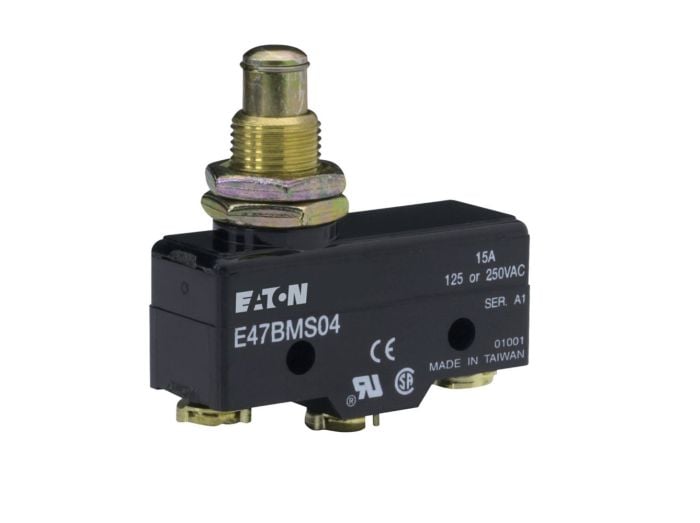

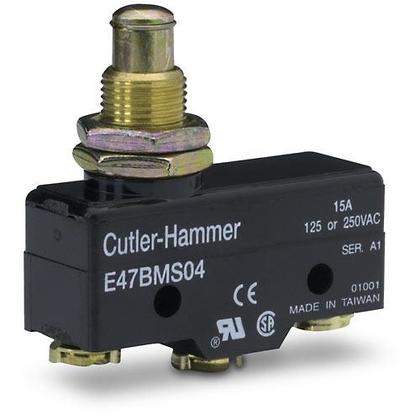

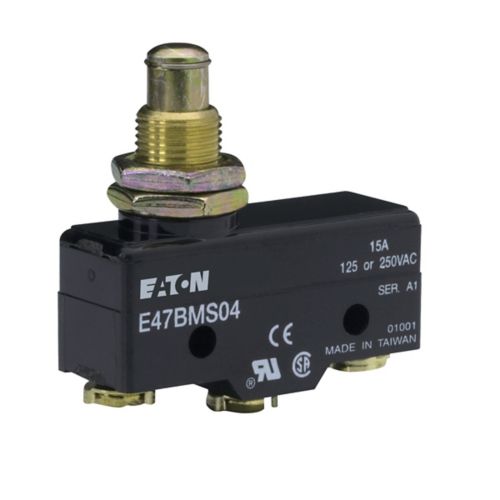

The EATON E47BMS04 is an E47 limit switch with an extended straight plunger, suitable for industrial use. It features screw terminals and a 1-SPDT (form C) contact configuration. The switch is rated for 15A at 250 Vac and 6A at 30 Vdc, with an operating speed of 0.01 mm/s-1m/s. It is designed to control on/off functions in a variety of applications.

• Extended straight plunger actuator
• Screw terminal connection
• Rated 15A at 250 Vac, 6A at 30 Vdc

Product Highlights

Compact precision limit switch with high accuracy switching and a rugged metal housing, ideal for restrictive spaces.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E47BMS04
• Country of Origin: Taiwan

Technical Specifications

• Product Name: Eaton E47 limit switch
• Catalog Number: E47BMS04
• UPC: 782113770888
• Product Length/Depth: 1.94 in
• Product Height: 1.36 in
• Product Width: 0.69 in
• Product Weight: 0.11 lb
• Warranty: 1 year
• Certifications: CSA Certified UL Listed
• Product Type: Limit switch
• Type: Plunger
• Contact Rating: 15A at 250 Vac, 6A at 30 Vdc
• Enclosure material: Mineral filled phenolic
• Actuator: Extended straight plunger
• Connection: Screw terminal
• Contact configuration: 1-SPDT (form C)
• Series: E47
• Operating temperature - max: 176 °F
• Operating temperature - min: -13 °F
• Environmental rating: NEMA 1
• Maximum AC current: 15 A
• Maximum DC current: 15 A
• Operating speed: 0.01 mm/s-1m/s
• Manufacturer: Eaton
• Product Series: E47_PRECISION
• Family Series: Eaton Limit Switches, E47_PRECISION Series
• Description: Precision Limit Switch, E47, Extended straight plunger, Screw Terminals, 15A at 250 Vac, 6A at 30 Vdc, 0.01 mm/s-1m/s, 1-SPDT Form C
• Actuator Type: Plunger
• Contacts: FORM C (SPDT)
• Rating @ 125 VAC: 15 A
• Rating @ 125 VDC: 0.4 A
• Rating @ 250 VAC: 15 A
• Rating @ 250 VDC: 0.2 A
• Rating @ 480 VAC: 3 A
• Connection Type: Screw Terminals
• Indicator: No
• Material: Phenolic
• Approvals: CE, CSA, UR
• Net Weight: 0.115 lbs
• Gross Weight: 0.4 lbs
• AC Contact Rating: 15 A @ 250 V
• Body Material: Thermoplastic
• Center Mounting Hole Distance: 1 in
• Contact Form: SPDT
• DC Contact Rating: 6 A @ 30 V
• Differential Travel - Maximum: 0.002 in
• Display Qty: 1
• Display Sell UOM: EA
• Electrical Connection: Screw Terminals
• Includes: Extended Straight Plunger
• Manufacturer Warranty Length: 1 yr
• Operating Force - Maximum: 28.22 ozf
• Operating Force - Minimum: 0.35 ozf
• Over Travel: 0.217 in
• Overall Depth: 1.94 in
• Overall Height: 1.36 in
• Overall Width: 0.69 in
• Pre-Travel: 0.016 in
• Release Force: 4.02 ozf
• Roller Adjustability: Fixed
• Roller Material: Metal
• Roller Position: Top
• Roller Width: 0.21 in
• Standards: CSA; UL Listed
• Country of Origin: Taiwan (subject to change)
• Amps: 15
• MPN: E47BMS04
• GTIN: 0782113770888
• Fuse Type: Switch
• Mounting Style: Screw
• Maximum Amperage: 250 A
• Model: E47BMS04
