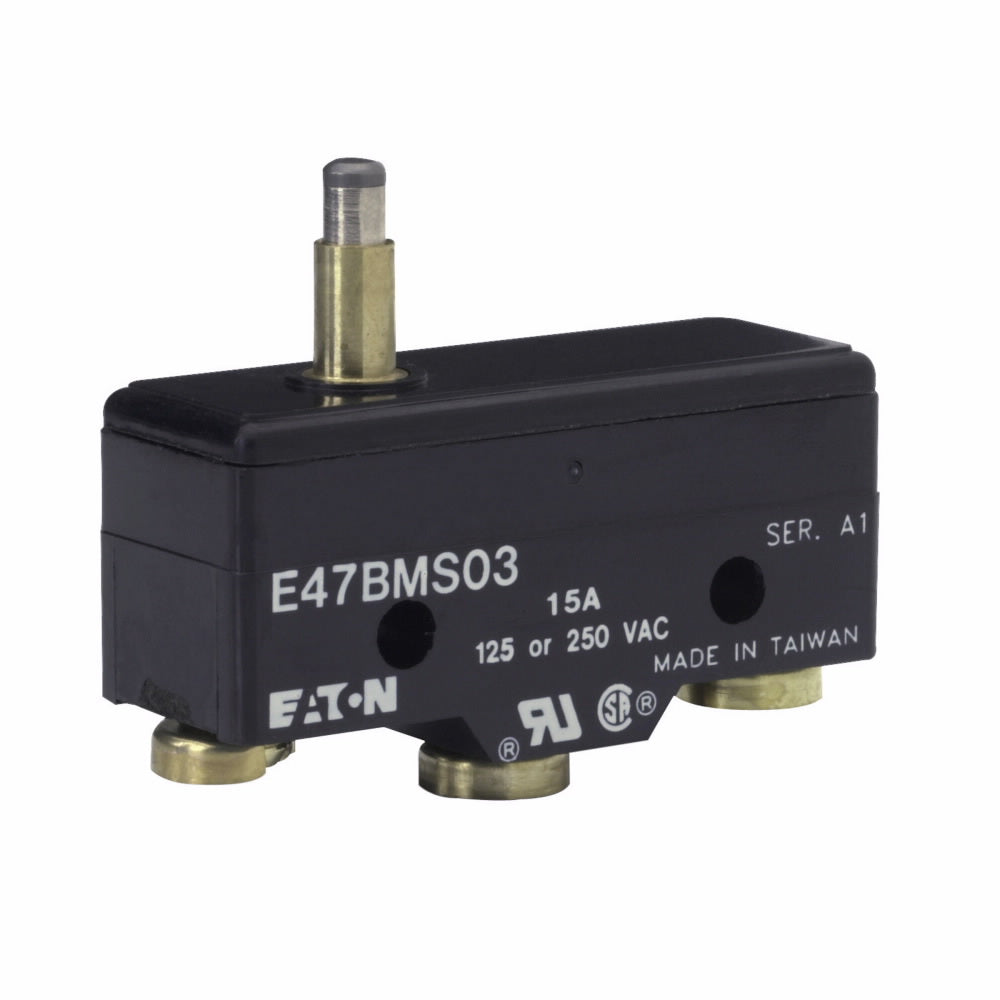

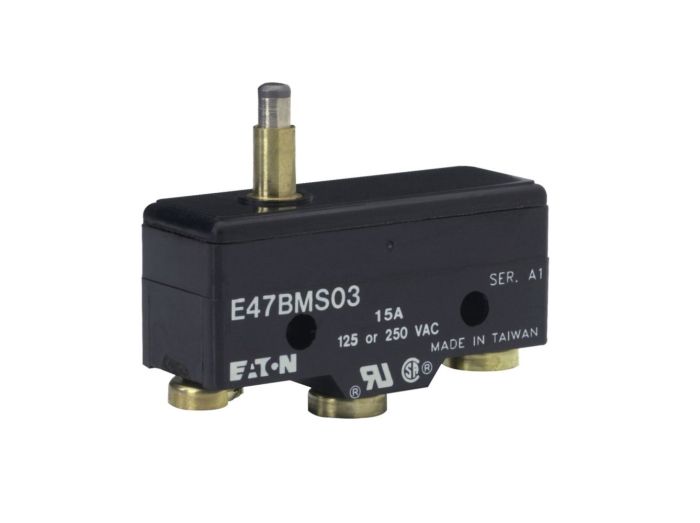

Eaton E47BMS03 Precision Limit Switch, Extended Plunger, Screw Term

Product Description

The EATON E47BMS03 precision limit switch is a basic switch from the E47 series. It features an extended plunger actuator and screw connection. This SPDT switch is suitable for various applications, including agriculture machinery, vending machines, and industrial facilities. The compact housing is ideal for use in space-restricted environments.

• Compact housings are ideal for use where space is restricted
• Precision, snap action operators provide accurate repeatability of electrical and mechanical operating characteristics
• High current capacity (up to 20 A) allows power load switching and motor handling capability

Product Highlights

The EATON E47BMS03 limit switch offers high accuracy switching at an affordable price. It is a versatile choice for precise and reliable electrical control.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E47BMS03

Technical Specifications

• Actuator: Extended Plunger
• Amperage Rating: 15 A
• Application: Agriculture Machinery, Vending Machines, Packaging Machinery, HVAC Equipment, Test Instruments, Semi Trailer Trucks, Boom Trucks, Sliding Gates, Elevators, Industrial Facilities, Factories - Safety and Security Systems Applications
• Connection Type: Screw Terminals
• Contact Configuration: SPDT
• Contact Rating: 15 A at 125 VAC, 15 A at 14 VDC
• Enclosure: NEMA 1
• Frequency Rating: 50/60 Hz
• Manufacturer Part Number: E47BMS03
• Material: Phenolic
• Mounting Type: Threaded
• Number of Poles: 1
• Operating Cycles: 3000000 Cycles Mechanical/500000 Cycles Electrical
• Operating Temperature: -13 to 176 deg F
• Series: E47
• Standards/Approvals: CE Marking|CSA Certified|UL Listed
• Type: Basic
• Product Length/Depth: 0.69 in
• Product Height: 1.94 in
• Product Width: 1.47 in
• Compliances: CE Marked
• Certifications: CSA Certified UL Listed
• Catalog Notes: Bottom facing M4 x 0.7 (8-32) terminal screws with cup washers will accept 22 -12 AWG (2.5 sq. mm maximum)
• Product Type: Limit switch
• Environmental rating: NEMA 1
• Maximum AC current: 15 A
• Maximum DC current: 15 A
• Maximum Amperage: 15 A
• Current Rating: 1-15 A
• Current Type: AC/DC
• Termination Type: Screw
• Number in Pack: 1
• Model: Eaton E47BMS03
• Head: Plunger
• Head Action: Spring Return, Standard
• Force to Operate: 12.30 oz (3.42N) OF
• Pre-Travel - max: 0.016 in (0.41mm) PT
• Differential-Travel - max: 0.002 in (0.05mm) DT
• Over-Travel: 0.063 in (1.60mm) OT
• Contact Rating - nominal: 15A
• Contact Rating @ 125 VAC: 15 A
• Contact Rating @ 125 VDC: 0.4 A
• Contact Rating @ 250 VAC: 15 A
• Contact Rating @ 250 VDC: 0.2 A
• Contact Rating @ 480 VAC: 3 A
• Construction: Phenolic
• Brand: CUTLER HAMMER
• Product Series: E47_PRECISION
• Family Series: Eaton Limit Switches, E47_PRECISION Series
• Description: E47 Precision Limit Switch, Basic, Extended Plunger, Mineral Filled Phenolic enclosure, 15A max AC, 15A max DC, SPDT, 15A at 125Vac / 15A at 14Vdc, Screw Terminals
• Actuator Type: Plunger
• Contacts: FORM C (SPDT)
• Indicator: No
