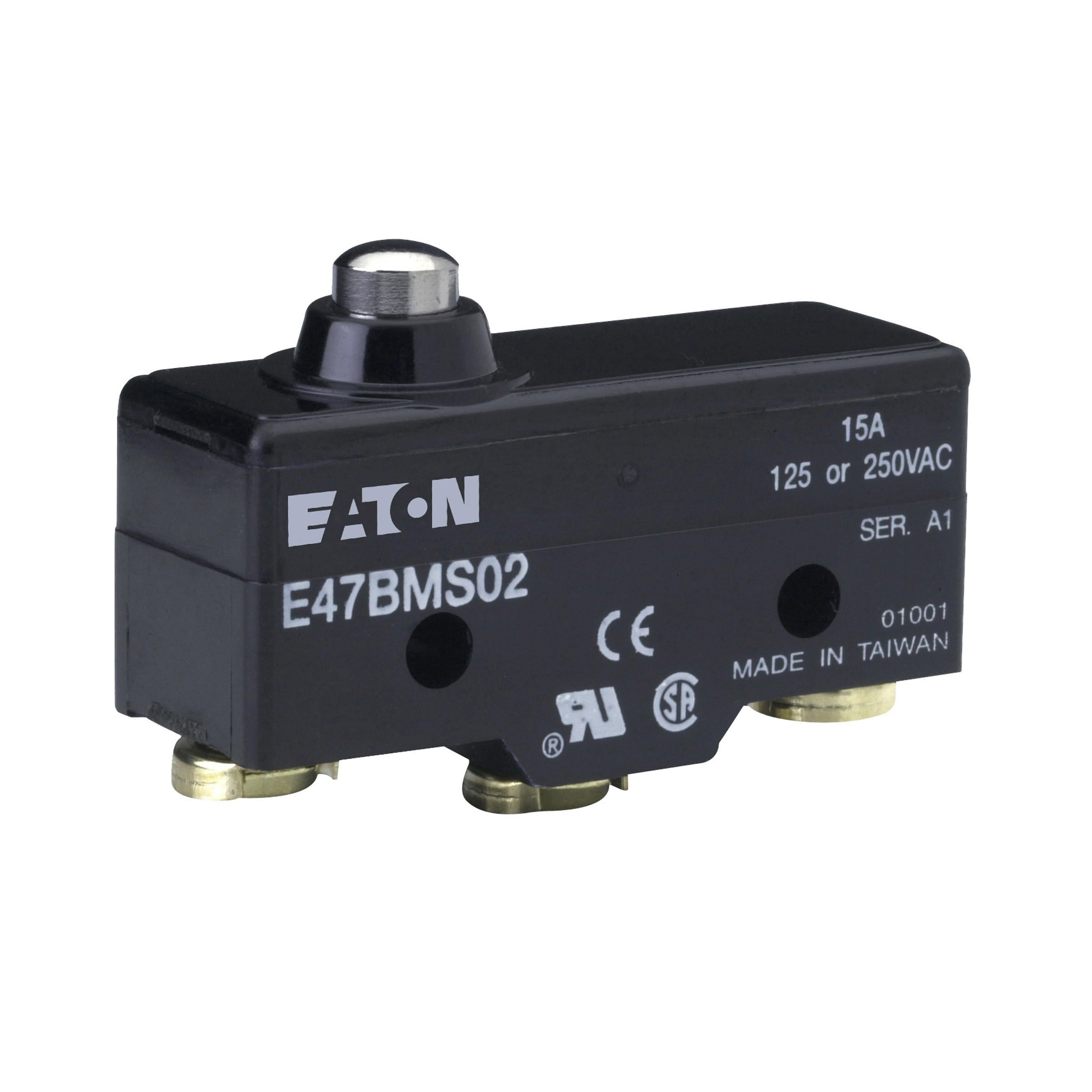

Eaton E47BMS02 Precision limit switch 15A at 250 Vac (Straight plunger)

Product Description

Eaton E47BMS02 is a precision limit switch with a straight plunger actuator and SPDT (Form C) contact configuration. It provides switching at 15 A at 250 VAC and 6 A at 30 VDC, with an operating speed range of 0.01 mm/s to 1 m/s. The switch features an encapsulated die-cast aluminum alloy housing, screw terminal connections, NEMA 1 enclosure, and an operating temperature range of -10 to 70 °C.

• Electrical ratings: 15 A at 250 VAC; 6 A at 30 VDC; SPDT (Form C) contact configuration
• Actuator and mechanical: straight plunger actuator, operating speed 0.01 mm/s to 1 m/s, mechanical life 3,000,000 cycles and electrical life 500,000 cycles
• Construction and connections: encapsulated die-cast aluminum alloy housing, screw terminal connection, NEMA 1 enclosure, CSA and UL certified

Product Highlights

Precision snap-action SPDT limit switch; 15 A AC / 6 A DC; straight plunger; screw terminals; -10 to 70 °C; NEMA 1; CSA and UL.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E47BMS02
• Country of Origin: Taiwan, Province Of China
