Eaton E47BLS35 E47 Precision Enclosed Limit Switch 250 VAC, 30 VDC

Product Description

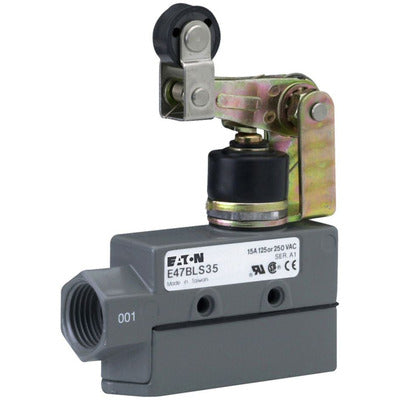

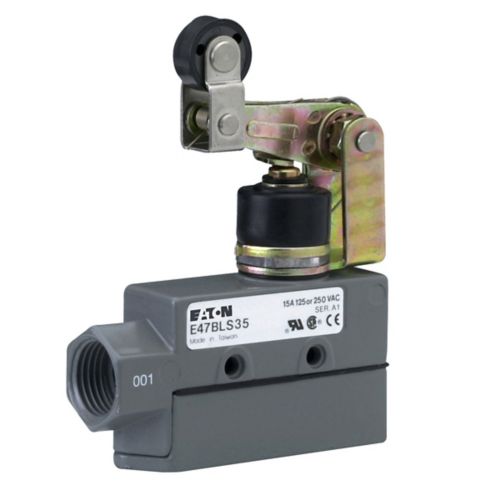

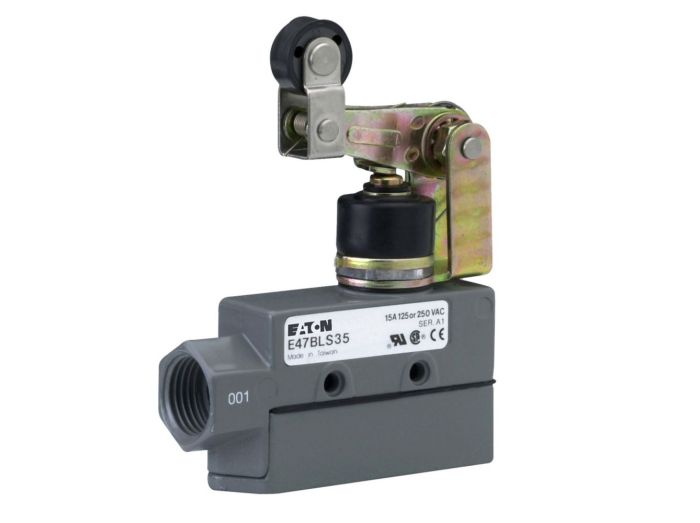

The EATON E47BLS35 is an enclosed precision limit switch from the E47 series. This limit switch features a booted one-way roller actuator and screw terminals. It is rated for 15A at 250 Vac and 6A at 30 Vdc, with an operating speed of 0.01 mm/s to 1 m/s. The unit has a 1-SPDT (Form C) contact configuration.

• Die-cast aluminum enclosure material
• Operating temperature range of -13 to 176 degrees Fahrenheit
• NEMA 1 environmental rating

Product Highlights

The EATON E47BLS35 limit switch offers high accuracy switching for automation and logic control equipment, ideal for industrial facilities and safety/security systems.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E47BLS35
• Country of Origin: US

Technical Specifications

• Product Name: Eaton E47 limit switch
• Catalog Number: E47BLS35
• UPC: 782113771137
• Product Length/Depth: 3.39 in
• Product Height: 4.71 in
• Product Width: 1 in
• Product Weight: 0.65 lb
• Certifications: CSA Certified UL Listed
• Product Type: Limit switch
• Type: E47
• Contact Rating: 15 A at 250 VAC, 6 A at 30 VDC
• Enclosure material: Die cast aluminum
• Actuator: Booted one-way roller
• Connection: Screw terminal
• Contact configuration: 1-SPDT (form C)
• Series: E47
• Operating temperature - max: 176 °F
• Operating temperature - min: -13 °F
• Environmental rating: NEMA 1
• Maximum AC current: 15 A
• Maximum DC current: 15 A
• Operating speed: 0.01 mm/s-1m/s
• Manufacturer Part Number: E47BLS35
• Manufacturer: Eaton
• Product Series: E47_PRECISION
• Family Series: Eaton Limit Switches, E47_PRECISION Series
• Description: Enclosed Precision Limit Switch, E47, Booted one-way roller, Screw Terminals, 15A at 250 Vac, 6A at 30 Vdc, 0.01 mm/s-1m/s, 1-SPDT Form C
• Actuator Type: Roller Lever
• Contacts: FORM C (SPDT)
• Connection Type: Screw Terminals
• Conduit Fitting: 1/2 NPT
• Indicator: No
• NEMA Rating: NEMA 1
• Material: Phenolic
• Approvals: CE, CSA, UR
• Net Weight: 0.6 lbs
• Gross Weight: 0.65 lbs
• Brand: CUTLER HAMMER
• Category: Business & Industrial > Electrical Equipment & Supplies > Switches > Limit & Snap Action Switches
• UNSPSC: 39122213
• Application: Automation and Logic Control Equipment, Industrial Facilities, Factories - Safety and Security Systems Applications
• Mounting Type: Threaded
• Enclosure Type: NEMA 1
• Voltage Rating: 250 VAC, 30 VDC
• Frequency Rating: 50/60
• Operating Temperature: -13 to 176
• Size: 3.39 x 1 x 4.71
• Amperage Rating: 6/15
• Item: Limit Switch
• Max. Ac Amps: 15A
• Max. Dc Amps: 15A
• Max. Operating Temp.: 176 °F
• Min. Operating Temp.: -13 °F
• Nema Enclosure Rating: NEMA 1
• Primary brand: Eaton
• Order code / Manufacturer SKU: E47BLS35
• Manufacturer product status: Commercialized
• UPC code: 782113771137
• Manufacturer description: Enclosed Precision Limit Switch - E47 - Booted one-way roller - Screw Terminals - 15A at 250Vac - 6A at 30Vdc - 0.01 mm/s-1m/s - 1-SPDT (Form C)
