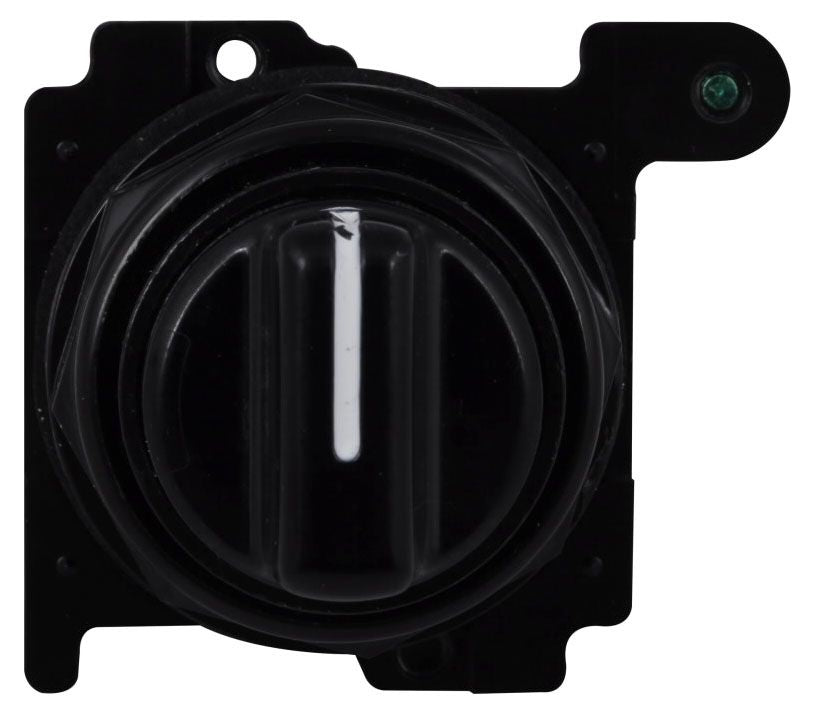

Eaton E34VMBK1 Knob Type Operator 30.5 Mm

Product Description

The EATON E34VMBK1 is a 30.5 mm knob type operator designed for use with modular pushbutton and selector switch assemblies in industrial control panels. This operator serves as the actuating component that interfaces with an operator's hand to mechanically engage or disengage the contact block beneath it. The 30.5 mm mounting diameter fits standard panel cutouts common across a wide range of industrial enclosures and control stations. Weighing just 0.25 pounds, it is a compact, lightweight component suited for panel builders and electricians working on machine control and process automation systems.

The E34VMBK1 is typically installed in control panels, operator stations, and industrial machinery where reliable manual input is required. Applications include motor control centers, conveyor systems, pump controls, and general-purpose machine operator interfaces. It is intended for use as part of a modular 30.5 mm control station assembly, paired with the appropriate contact blocks, legend plates, and mounting hardware to complete a functional switch assembly. Installation is handled by licensed electricians or qualified panel builders following applicable NEC guidelines.

Key Features

• 30.5 mm mounting diameter fits standard industrial panel cutouts
• Knob type actuator provides positive manual operation
• Modular design integrates with compatible 30.5 mm contact block assemblies
• Compact and lightweight at 0.25 pounds
• Suitable for general-purpose industrial control panel applications

Compatibility

Designed as an OEM-style operator for 30.5 mm modular pushbutton and selector switch assemblies used in industrial control panel applications.

Installation Notes

Installation should be performed by a licensed electrician or qualified panel builder in accordance with NEC requirements. De-energize and lock out the control panel before installing or replacing any operator or contact block component. Ensure the panel cutout diameter matches the 30.5 mm mounting specification before securing the operator. Verify that the mating contact block is properly seated and latched before returning the panel to service.

Technical Specifications

• Mounting Diameter: 30.5 mm
• Operator Type: Knob
• Package Dimensions (L x W x H): 2 inches x 2 inches x 2 inches
• Weight: 0.25 pounds
• UPC: 78211372322

Standard Information

• Brand: EATON
• Manufacturer Part Number: E34VMBK1
