Eaton E34VHBK1 E34 Pushbutton 60°

Product Description

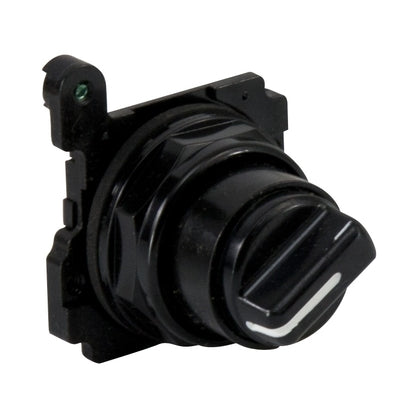

The EATON E34VHBK1 E34 pushbutton is a 30.5 mm corrosion-resistant component with a 60° throw. Featuring a black knob actuator and a three-position design, it is non-illuminated and suitable for various industrial applications. It is designed to withstand harsh environments, ensuring long-lasting performance.

• Corrosion Resistant
• Non-illuminated
• 60° throw

Product Highlights

The EATON E34VHBK1 pushbutton is ideal for use in demanding industrial environments requiring robust and reliable control.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E34VHBK1
• Country of Origin: Dominican Republic

Technical Specifications

• SKU: E34VHBK1
• Product Name: Eaton E34 pushbutton
• Catalog Number: E34VHBK1
• UPC: 782113721804
• Product Length/Depth: 1 in
• Product Height: 1 in
• Product Width: 1 in
• Product Weight: 0.25 lb
• Compliances: FDA 3-A CE Marked
• Certifications: CSA Certified UL Listed
• Catalog Notes: Use NEMA 4X 10250T operators where exposed to ultraviolet light
• Product Type: Pushbutton
• Type: 30.5 mm, Corrosion Resistant
• Actuator color: Black
• Cam code: Cam 3
• Actuator: Knob
• Illumination: Non-illuminated
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Series: E34
• Number of positions: 3
• Throw type: 60 "0
• Country of Origin: Dominican Republic - Subject to change
• Size: 30.5mm
• NEMA: 4,4X,13
• Operating Cap: Knob
• Bezel/Housing: Die Cast, Black Epoxy
• Positions: 3
• Throw: 60-deg, Left-Right
• Contact Mode: Maintained
• Contact configuration: 2 NC
• Actuator Type: Knob
• Brand: Eaton - Cutler Hammer
• Illumination Color: None
• Manufacturer Part Number: E34VHBK1
• Numeric ID: 3882618
• Switch Function: Maintained
• UPC Code: 782113721804
• IP/NEMA Rating: NEMA 3R, NEMA 4X, NEMA 12, NEMA 13, NEMA 3, NEMA 4
• Product Diameter: 1.78 in
