Eaton E34TB380 E34 Pushbutton 380 V

Product Description

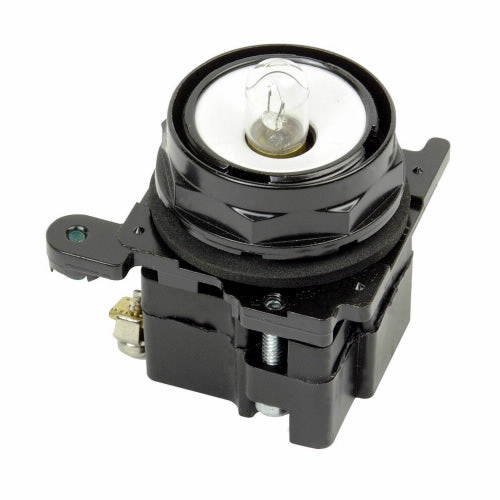

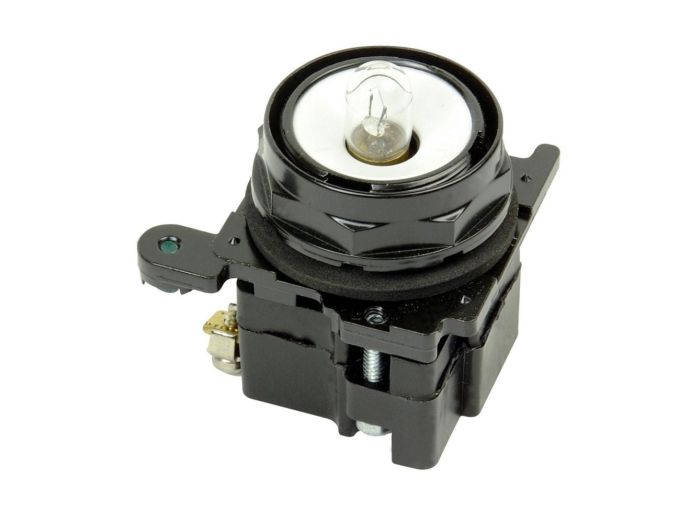

The Eaton E34TB380 E34 pushbutton is a corrosion-resistant indicating light designed for watertight and oiltight environments. It features a standard actuator and uses an incandescent transformer. Suitable for NEMA 3, 3R, 3S, 4, 4X, 12, and 13 applications, operating at 380 V.

• Corrosion Resistant Watertight and Oiltight
• Standard actuator
• Incandescent, transformer light unit

Product Highlights

The E34 series pushbutton features rugged die-cast construction with a two-layer 100% solid thermosetting cathodic epoxy coating, tested to withstand a 600-hour salt spray.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E34TB380
• Country of Origin: US

Technical Specifications

• SKU: E34TB380
• Product Name: Eaton E34 pushbutton
• Catalog Number: E34TB380
• UPC: 782113705330
• Product Length/Depth: 3.4 in
• Product Height: 2.1 in
• Product Width: 2.3 in
• Product Type: Pushbutton
• Type: 30.5 mm, Corrosion Resistant Watertight/Oiltight
• Light unit type: Incandescent, transformer
• Light unit voltage: 380 Vac
• Series: E34
• Actuator: Standard
• Rating: NEMA 3R NEMA 4X NEMA 3S NEMA 12 NEMA 3 NEMA 4 NEMA 13
• Country Of Origin: US
• Item: Pushbutton
• NEMA: 4,4X,13
• Lamp Type: Incandescent
• Power Source: Transformer
• Voltage: 380V AC
• Lens Style/ Size: Standard
• Lamp Number: 755
• Bezel: Round Metal
• Terminals: Standard Screw
• Enclosure Rating: NEMA 1, 2, 3, 3R, 3S, 4, 4X, 12, 13, IEC IP65
• Manufacturer Part Number: E34TB380
• Manufacturer: Eaton
• Family Series: Eaton Switches
• Comments: 380 V
• Net Weight: 0.3 lbs
• Gross Weight: 0.3 lbs
