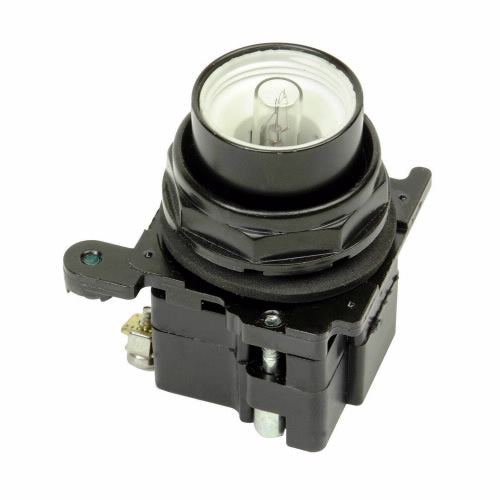

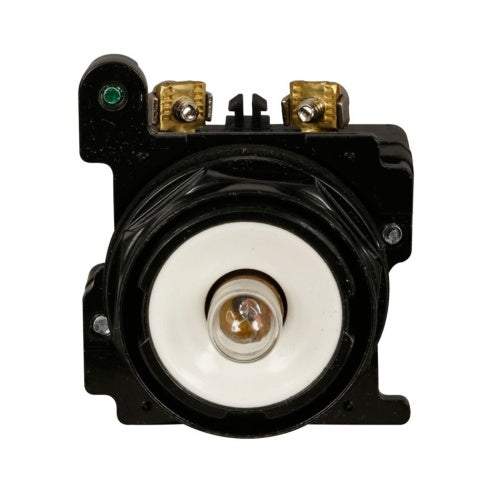

Eaton E34RPB240 Pushbutton 240V 30.5 mm

Product Description

The Eaton E34RPB240 is an E34 series pushbutton with corrosion-resistant indicating light. This standard actuator features an incandescent lamp and resistor. It is watertight and oiltight, and meets NEMA 3, 3R, 3S, 4, 4X, 12, and 13 standards. Rated for 240 Vac/dc.

• Enclosed silver contacts with reliability nibs
• Diaphragm seals with drainage holes
• Grounding nibs on the self-grounding operators

Product Highlights

Corrosion resistant, watertight and oiltight. Meets NEMA 3, 3R, 3S, 4, 4X, 12, and 13 standards. Features an incandescent lamp and resistor.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E34RPB240
• Country of Origin: US

Technical Specifications

• Alternate Mfr Part Number: E34RPB240
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: E34RPB240
• NEMA Rating: NEMA 3S
• DC Voltage: 240 VDC
• AC Voltage: 240 VAC
• Component: Push Button
• Manufacturer: Eaton
• Size: 30.5 mm
• Push Button Type: Standard
• Item: Pushbutton
• Actuator Type: Standard
• Lamp Module Type: Incandescent, Resistor
• Light Unit Voltage: 240V AC/DC
• Nema Enclosure Rating: NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 3S, NEMA 4, NEMA 4X
• Notes: Use NEMA 4X 10250T Operators Where Exposed To Ultraviolet Light
• Type: Indicating Light
• Lamp Type: Incandescent
• Power Source: Resistor
• Voltage: 240V AC/DC
• Lens Style/Size: Standard
• Lamp Number: 120MB
• Bezel: Round
• Terminals: Screw
• Enclosure Rating: NEMA 1,2,3,3R,3S,4,4X,12,13 IEC IP65
