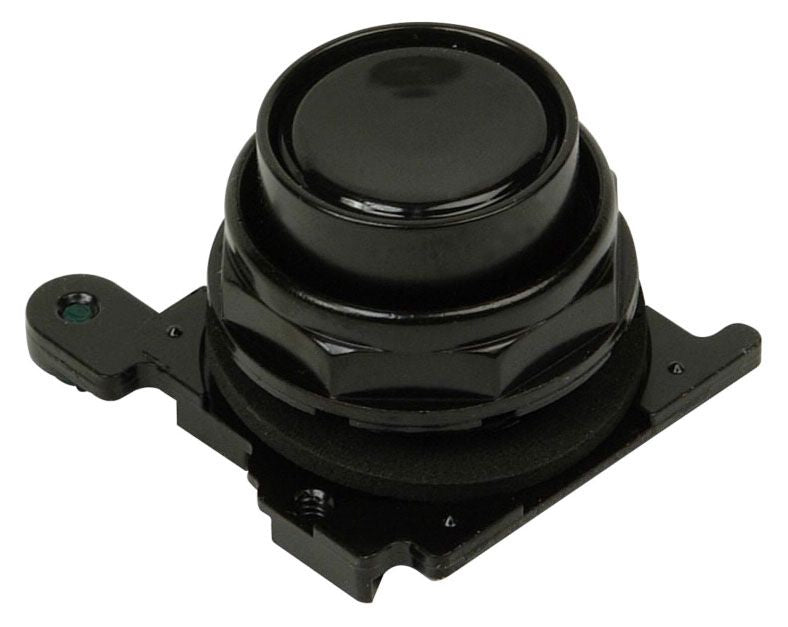

Eaton E34PB1 Flush Mount Push Button 30.5mm

Product Description

The EATON E34PB1 is a flush-type push button operator designed for industrial control panel applications. This 30.5mm push button mounts flush with the panel surface, providing a clean, recessed profile that reduces the risk of accidental actuation in demanding work environments. Built for use in control stations, motor control centers, and operator interface panels, the E34PB1 is a compact, reliable operator that licensed electricians and panel builders install as part of larger control assemblies. Its small footprint and standard 30.5mm mounting diameter make it a straightforward fit in most standard enclosures.

The E34PB1 is suited for residential, commercial, and light industrial control panels where a flush operator is preferred for safety or aesthetic reasons. It is commonly installed in motor starters, conveyor controls, pump panels, and other machine control applications where panel space is at a premium and a low-profile operator is required. Electricians and panel integrators typically specify flush operators in environments where protruding controls could be struck or damaged during normal operation.

Key Features

• Flush-type mounting profile reduces risk of accidental actuation
• 30.5mm standard mounting diameter fits common industrial enclosures and cutouts
• Compact overall dimensions of 1.9 inches x 1.9 inches x 2.1 inches
• Lightweight at 0.25 pounds for easy panel integration
• Designed for use in control stations, motor control centers, and operator panels

Compatibility

Designed as an OEM-style replacement or new-installation flush push button operator for standard 30.5mm industrial control panel cutouts.

Installation Notes

Installation of push button operators should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. Disconnect and lock out all power to the control panel before removing an existing operator or installing a new one. Verify that the panel cutout matches the 30.5mm mounting diameter before installation. Do not overtighten the mounting nut, as this can crack the operator body or distort the panel surface.

Technical Specifications

• Mounting Type: Flush
• Mounting Diameter: 30.5mm
• Dimensions (L x W x H): 1.9 inches x 1.9 inches x 2.1 inches
• Weight: 0.25 pounds
• UPC: 78211370426

Standard Information

• Brand: EATON
• Manufacturer Part Number: E34PB1
