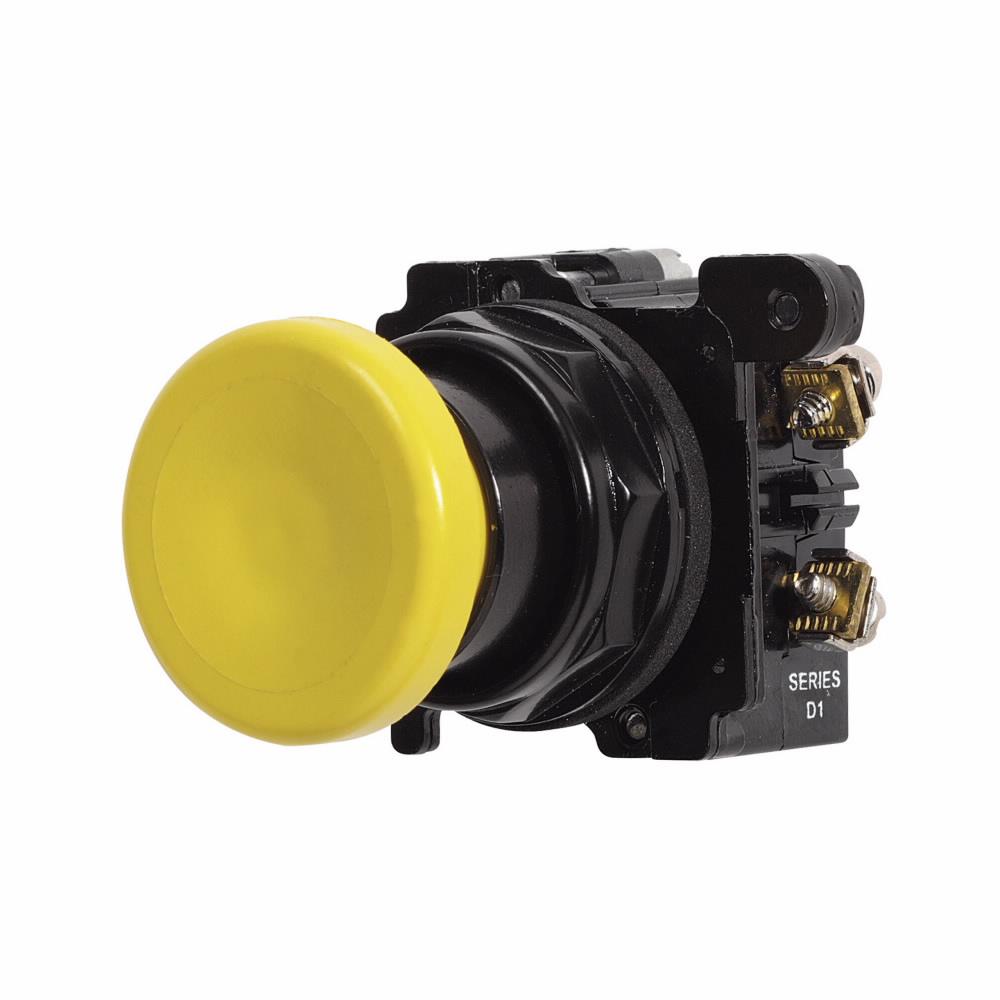

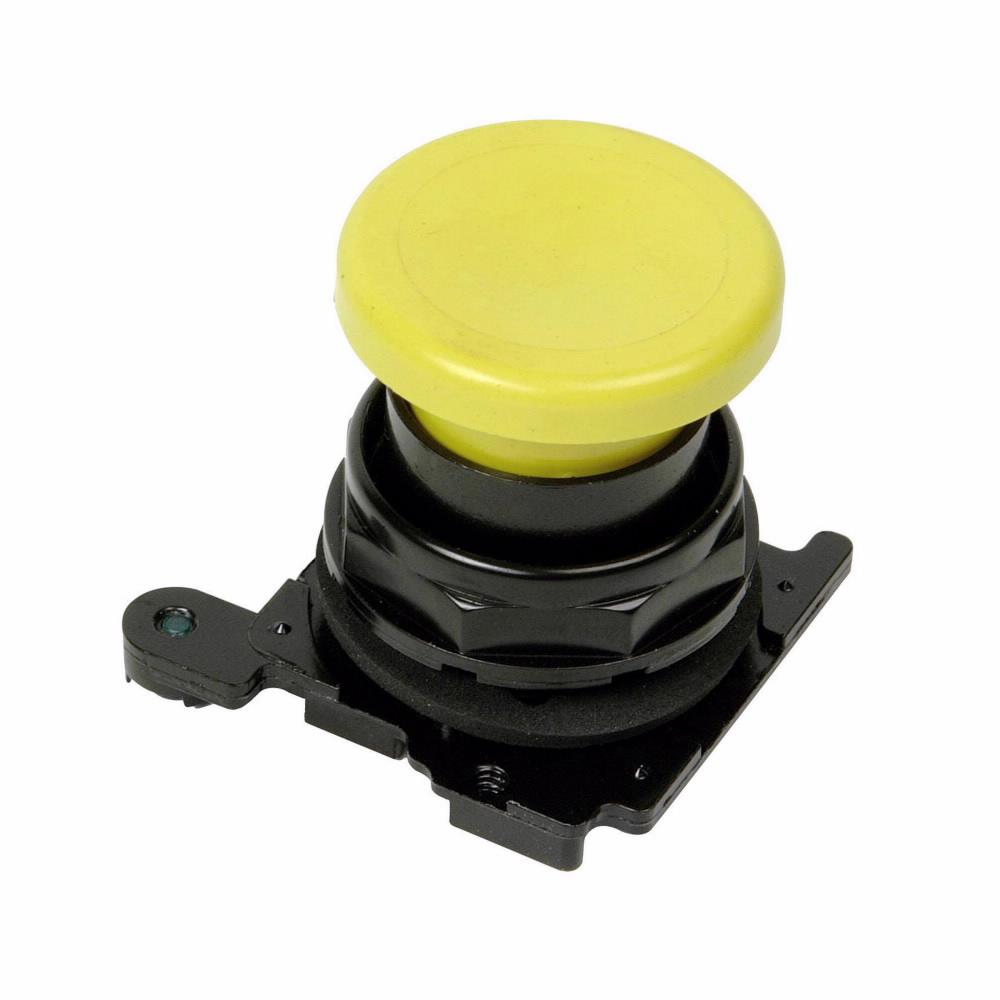

Eaton E34LB2 Pushbutton Mushroom Head 30.5 mm

Product Description

The EATON E34LB2 corrosion-resistant 30.5 mm pushbutton features rugged die-cast construction with a two-layer 100% solid thermosetting cathodic epoxy coating, tested to withstand 600 hr salt spray. This non-illuminated, square, oil/watertight multi-function pushbutton has a momentary contact mode and a mushroom head operator.

• Heavy duty die-cast zinc construction
• Enclosed silver contacts with reliability nibs
• Diaphragm seals with drainage holes

Product Highlights

Eaton's E34 pushbuttons are durable and versatile, suitable for use in harsh environments. They feature metal construction, grounding hardware, and are IP66 rated for protection against dirt and moisture.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E34LB2
• Country of Origin: Dominican Republic

Technical Specifications

• Contact Mode: Momentary
• Contact Rating: 10 A at 660 VAC/VDC
• Enclosure Type: NEMA 3/3R/4/4X/12/13
• Finish: Epoxy Coated
• Material: Die-Cast Zinc
• Operator Type: Mushroom Head
• Series: E34
• Temperature Rating: 1 to 150 deg F
• Type: Corrosion-Resistant Square Oil/Watertight Multi-Function
• Voltage Rating: 600 VAC
• Size: 30.5 mm
• Product Name: Eaton E34 pushbutton
• Catalog Number: E34LB2
• UPC: 10782113703289
• Product Length/Depth: 1.9 in
• Product Height: 1.8 in
• Product Width: 1.9 in
• Product Weight: 0.2 lb
• Compliances: FDA 3-A CE Marked
• Certifications: UL Listed CSA Certified UL 505
• Product Type: Pushbutton
• Actuator color: Red
• Bezel: Black
• Actuator material: Plastic
• Actuator: Mushroom
• Operating mode: Momentary
• Illumination: Non-illuminated
• Rating: NEMA 4X NEMA 4 NEMA 12 NEMA 3 NEMA 13 NEMA 3R
• Degree of protection: NEMA 3 NEMA 3R NEMA 13 NEMA 4 NEMA 12 NEMA 4X
• Brand: Eaton
• MPN: E34LB2
• Country of Origin: Dominican Republic
• Condition: New Open box
