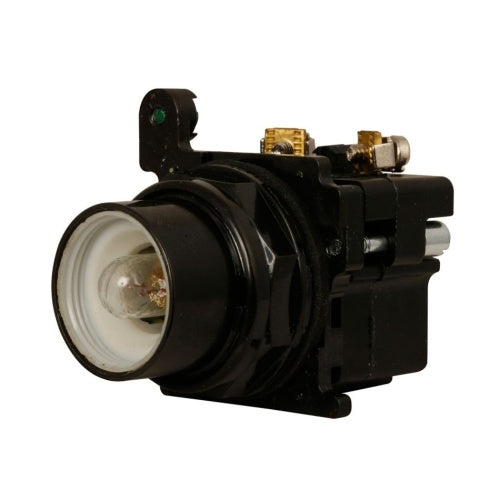

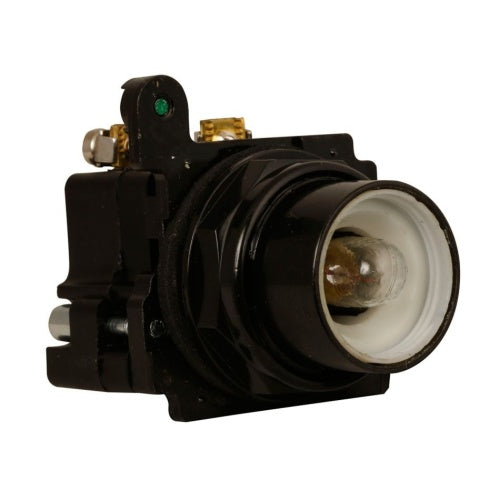

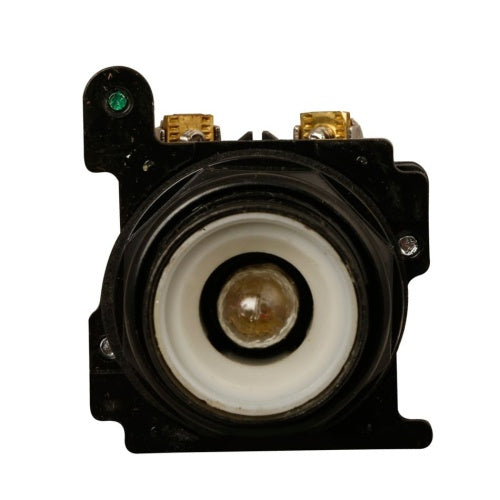

Eaton e34cb24 Illuminated Pushbutton 30.5 Mm E34 Series

Product Description

The EATON e34cb24 is an illuminated pushbutton from the E34 Series, designed for industrial and commercial control panel applications. Built to a 30.5 mm mounting format, this unit features a full-voltage incandescent light unit rated at 24 volts AC/DC. The corrosion-resistant, watertight and oiltight construction makes it well suited for demanding environments where moisture, oils, and contaminants are present. Licensed electricians and industrial control technicians install this type of device in machine control panels, process equipment, and operator interface stations.

This pushbutton is intended for use in environments requiring a sealed, corrosion-resistant operator device. The 30.5 mm body fits standard 30.5 mm panel cutouts common across industrial control enclosures. The watertight and oiltight rating makes it appropriate for food processing, manufacturing, and similar industrial settings where washdown or fluid exposure is a routine concern. The illuminated standard-action design provides clear operator feedback when the circuit is energized.

Key Features

• 30.5 mm mounting diameter fits standard industrial panel cutouts
• Illuminated with incandescent full-voltage light unit rated at 24 volts AC/DC
• Corrosion-resistant, watertight and oiltight construction for harsh environments
• No lens included — allows for field selection of lens color or style
• Standard pushbutton action for momentary operator control
• Compatible with E34 Series accessories and components

Compatibility

Designed as an OEM-style replacement or new-installation pushbutton for 30.5 mm industrial control panel cutouts within the EATON E34 Series platform.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC guidelines and local codes. Disconnect and lock out all power to the control panel before mounting or wiring the pushbutton. The 30.5 mm panel cutout must be clean and free of burrs before inserting the operator body. Do not exceed the rated voltage of the light unit during installation or testing.

Technical Specifications

• Series: E34
• Mounting Diameter: 30.5 mm
• Light Unit Voltage: 24 volts AC/DC
• Lamp Type: Incandescent, full voltage
• Illumination: Illuminated
• Lens: Without lens
• Enclosure Rating: Watertight, Oiltight, Corrosion Resistant
• Action Type: Standard pushbutton

Standard Information

• Brand: EATON
• Manufacturer Part Number: e34cb24
