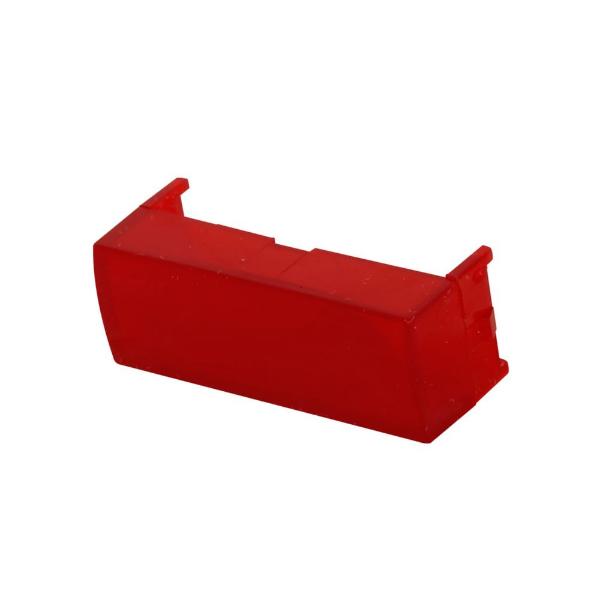

Eaton E30KJ13 Multi-Function Operator Lens POWER ON

Product Description

The Eaton E30KJ13 industrial pushbutton and indicating light line features a wide selection of square, multifunction operators which conveniently mount in a standard 30.5 mm Dia panel hole. Up to 6 input and indicating functions can be grouped into a single operating head, saving valuable panel space.

• 1/8 in H letter
• Type J actuator
• Type E30 control units consist of a basic operator with one or more buttons and lenses and contact block selection dependent on the specific operator configuration.

Product Highlights

Attractive square operator styling, coupled with custom legending of colored buttons and lenses and many special function accessories, makes E30 components ideally suited for use on control consoles and for a variety of industrial OEM applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E30KJ13
• Country of Origin: US

Technical Specifications

• Brand: Eaton
• Shape: Squared
• Legend: POWER ON
• UNSPSC: 39122221
• Material: Molded Acetal Resin
• Application: Automation and Logic Control Equipment Applications
• Type: Multi-Function Oiltight/Watertight
• Series: E30
• Includes: Combination Recess Hex Head Machine Screw and Square Nut
• MPN: E30KJ13
• Color: Red
• Actuator Type: Type J
• For Use With: Pushbutton, Square Multifunction
• Letter Size: 1/8"
• Letter Type: High
• Notes: Use With E30EM Through EM, FA Through FM, And GA Through GM Operators
