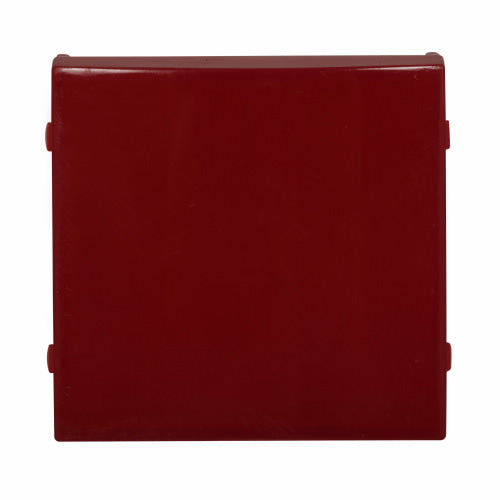

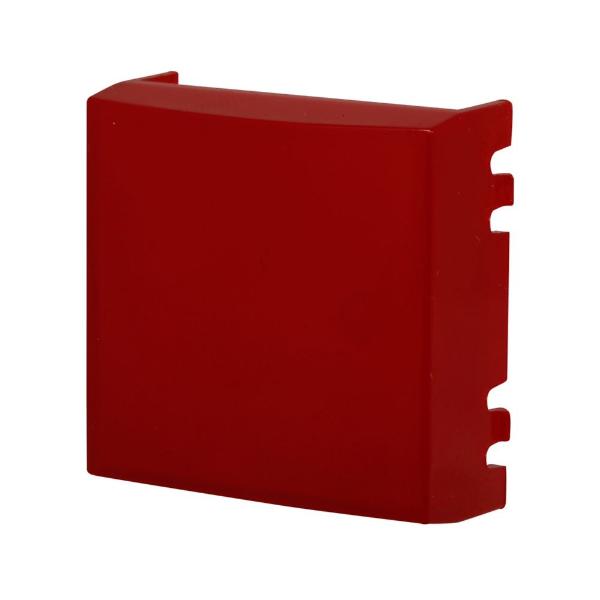

Eaton E30KF10 Operator Lens, E30 Series

Product Description

The Eaton E30KF10 operator lens is part of the E30 series of industrial pushbuttons and indicating lights, offering a wide selection of square, multifunction operators that fit standard 30.5 mm diameter panel holes. These operators save valuable panel space by grouping up to six functions into one operating head.

• Durable die-cast operators with high-pressure seals.
• Buna N cork gaskets for oiltightness.
• Suited for control consoles and industrial applications.

Product Highlights

The EATON E30KF10 lens features a Type F actuator, a blank legend, and is designed for use with pushbuttons in square multifunction configurations.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E30KF10
• Country of Origin: US

Technical Specifications

• Component: Accessories
• Manufacturer: Eaton
• Sub Component: Operator Lens
• Item: Lens
• Actuator Type: Type F
• Features: Used With Pushbutton, Square Multifunction
• For Use With: Pushbutton, Square Multifunction
• Legend: Blank
• Length: 5"
• Letter Size: 3/16"
• Letter Type: High
• Notes: 30.5 mm, Square Multifunction- Custom Pushbutton
• Type: 30.5 mm, Square Multifunction Watertight/Oiltight
• Width: 4"
• Brand: Eaton
• Color: Red
• Shape: Squared
• UNSPSC: 39122221
• Material: Molded Acetal Resin
• Application: For use with pushbutton, automation and logic control equipment applications
• Series: E30
• Includes: 1/2-13 x 1-1/2 in L Set Screw
• MPN: INDUSTRIAL SPARE
• Country of Origin: China
• Category: Business & Industrial
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Cover
• Functions: Blank lens cap - type F
• Technical compatibility with: E30 series
• Manufacturer product status: Commercialized
• Actuator Color: Red
